Home > Products > Centronic PCB Connector > Right Angle PCB Mount Centronic Telecom Connector Female 2.16mm pitch

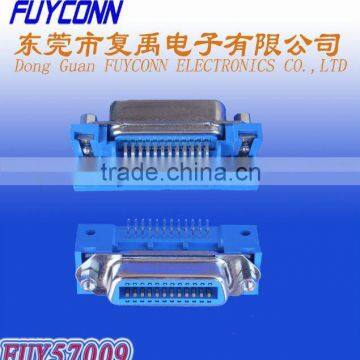

Right Angle PCB Mount Centronic Telecom Connector Female 2.16mm pitch
USD $1 - $2
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- SHENZHEN/GUANGZHOU
- T/T Credit Card
You May Like
-
Centronix 36 Pin Female Straight PCB Solder DIP Terminals Connector for Dot Matrix Printer
-
Centronic PCB Right Angle Female Connector with board lock and spring latches
-
Telecom Connector PCB Right Angle Female Receptacle Type
-
DDK 57 Series 40 Receptacle with Spring Latches Centronic Connector PCB Right Angle Board Lock
-
DDK Right Angle PCB Mount Reversed Centronic Connector Female Receptacle Type with Board Lock
-
Female 20 Type Receptacle DDK Reversed Centronics Connector PCB Mouting Right Angle
Product Details
| Brand Name | FUYCONN | Model Number | FUY57009 | |
| Place of Origin | Guangdong, China | Interface Type | Displayport | |
| Use | Other, Telecom Equipment |
Product Description
Specifications
Item No.: FUY570091,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Screw Lock
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP Pan Holes screw(4*7) type
B:With Hex Screw Lock(11.8*4.8)
C:"L" Shape (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
