Home > Products > Centronic PCB Connector > 57 Series Female Receptacle Type centronix connector PCB Mounting 90 degree

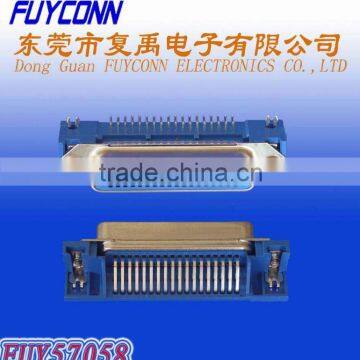

57 Series Female Receptacle Type centronix connector PCB Mounting 90 degree
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
57 Series Centronic Female Receptacle PCB DIP Straigth Connector Socket Type with Spring Latches
-
DDK Female PCB 90 Degree Centronix Connector for Communication Equipment
-
2.16mm pitch Centronix Connector DDK PCB DIP Straight Type Header Female Receptacle
-
DDK Centronic PCB DIP Solder Right Angle Connector Female Type
-
36 Pin Centronix Male Plug 2.16mm pitch Solder DIP Termination Connector PCB Straight Mount
-
57 Series DDK 40 Type Receptacle Right Angle Solder Termination Connector PCB Mounting
Product Details
| Brand Name | FUYCONN | Model Number | FUY57058 | |
| Place of Origin | Guangdong, China | Interface Type | Displayport | |
| Use | Other, Cable to cable |
Product Description
Specifications
Item No.: FUY570581,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Product Model: FUY57058
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Square Rivet Insert
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (A:5u" ,B15u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:90°C DIP Square Holes ,Round Head (4*7)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
