Home > Products > STEEL ANGLE > MILD STEEL UNEQUAL ANGLES
MILD STEEL UNEQUAL ANGLES
- TIANJIN/QINHUANGDAO
 - T/T D/P D/A

You May Like
Product Details
| Standard | ASTM | Grade | Other | |
| Place of Origin | Hebei, China | Brand Name | GUOYANG | |
| Type | Unequal |
Product Description
GRADE:SS400,Q235,ASTM A36
ORIGIN CHINA
1.LOADING PORT:TIAN JIN PORT OR QINHUANGDAO PORT
2.PAYMENT:L/C,D/P
3.DELIVER TIME:60 DAYS AFTER RECEIVE THE L/C
4.DOCUMENTS:COMMERCIAL INVOICE,PACKING LIST,MILL TEST,CERTIFICATE OF ORIGIN,BILL OF LADING

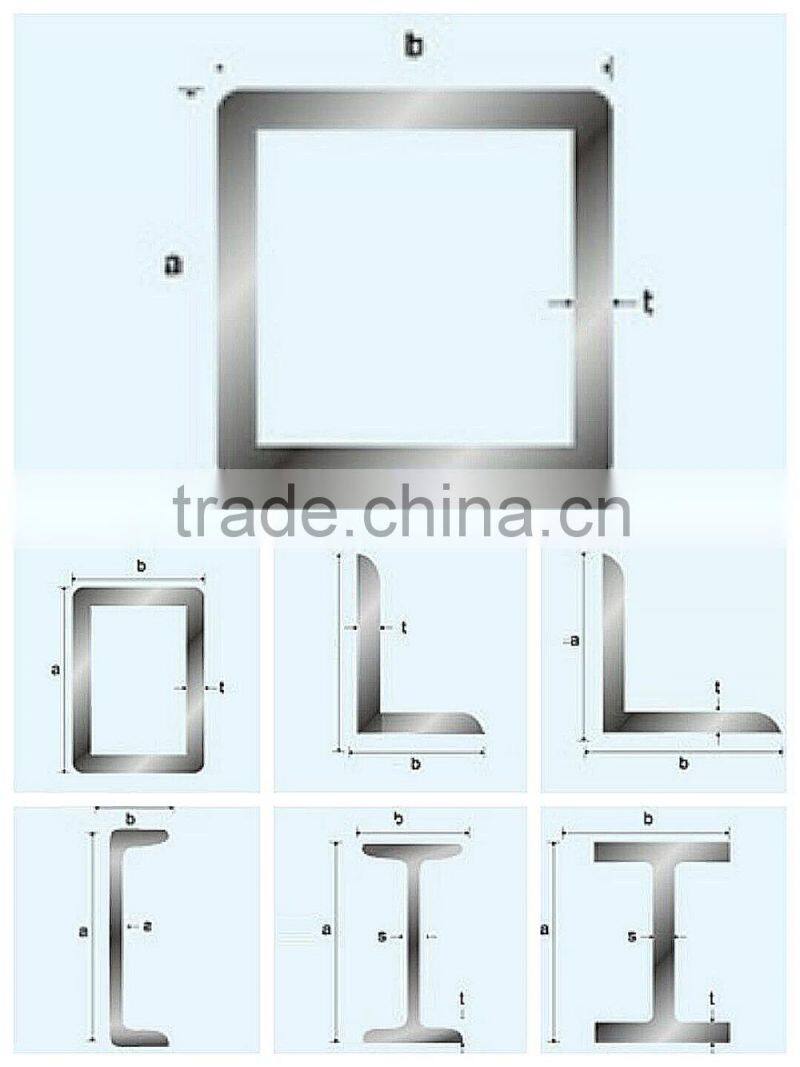

| SIZE (a×b)mm | Thickness (t)mm | Unit Weight Kg/m | SIZE (a×b)mm | Thickness (t)mm | Unit Weight Kg/m |
| 50×30 | 5.0 | 2.960 | 125×75 | 7.0 | 10.700 |
| 50×40 | 5.0 | 3.360 | 125×75 | 8.0 | 12.200 |
| 60×40 | 5.0 | 3.733 | 125×75 | 9.0 | 13.600 |
| 63×40 | 5.0 | 3.530 | 125×75 | 10.0 | 15.000 |
| 65×40 | 6.0 | 4.638 | 125×75 | 12.0 | 17.800 |
| 65×50 | 5.0 | 4.350 | 150×75 | 9.0 | 15.400 |
| 65×50 | 6.0 | 5.160 | 150×75 | 10.0 | 17.000 |
| 75×50 | 5.0 | 4.800 | 150×75 | 12.0 | 20.200 |
| 75×50 | 6.0 | 5.660 | 150×75 | 15.0 | 24.800 |
| 75×50 | 8.0 | 7.431 | 150×90 | 9.0 | 16.500 |
| 90×65 | 6.0 | 6.848 | 150×90 | 10.0 | 18.200 |
| 90×65 | 8.0 | 9.352 | 150×90 | 12.0 | 21.600 |
| 100×50 | 6.0 | 6.850 | 150×90 | 15.0 | 26.600 |
| 100×50 | 8.0 | 8.990 | 150×100 | 10.0 | 18.790 |
| 100×63 | 10.0 | 12.142 | 150×100 | 12.0 | 22.500 |
| 100×65 | 7.0 | 8.770 | 200×100 | 10.0 | 23.000 |
| 100×65 | 8.0 | 9.940 | 200×100 | 12.0 | 27.300 |
| 100×65 | 9.0 | 11.100 | 200×100 | 15.0 | 33.700 |
| 100×65 | 10.0 | 12.300 | 200×150 | 12.0 | 32.000 |
| 100×75 | 6.0 | 8.040 | 200×150 | 15.0 | 39.600 |
| 100×75 | 7.0 | 9.320 | 200×150 | 18.0 | 47.100 |
| 100×75 | 8.0 | 10.600 | |||
| 100×75 | 9.0 | 11.800 | |||
| 100×75 | 10.0 | 13.000 | |||
| 100×75 | 12.0 | 15.400 |
| SIZE (a×b)mm | Thickness (t)mm | Unit Weight Kg/m | SIZE (a×b)mm | Thickness (t)mm | Unit Weight Kg/m |
| 50×30 | 5.0 | 2.960 | 125×75 | 7.0 | 10.700 |
| 50×40 | 5.0 | 3.360 | 125×75 | 8.0 | 12.200 |
| 60×40 | 5.0 | 3.733 | 125×75 | 9.0 | 13.600 |
| 63×40 | 5.0 | 3.530 | 125×75 | 10.0 | 15.000 |
| 65×40 | 6.0 | 4.638 | 125×75 | 12.0 | 17.800 |
| 65×50 | 5.0 | 4.350 | 150×75 | 9.0 | 15.400 |
| 65×50 | 6.0 | 5.160 | 150×75 | 10.0 | 17.000 |
| 75×50 | 5.0 | 4.800 | 150×75 | 12.0 | 20.200 |
| 75×50 | 6.0 | 5.660 | 150×75 | 15.0 | 24.800 |
| 75×50 | 8.0 | 7.431 | 150×90 | 9.0 | 16.500 |
| 90×65 | 6.0 | 6.848 | 150×90 | 10.0 | 18.200 |
| 90×65 | 8.0 | 9.352 | 150×90 | 12.0 | 21.600 |
| 100×50 | 6.0 | 6.850 | 150×90 | 15.0 | 26.600 |
| 100×50 | 8.0 | 8.990 | 150×100 | 10.0 | 18.790 |
| 100×63 | 10.0 | 12.142 | 150×100 | 12.0 | 22.500 |
| 100×65 | 7.0 | 8.770 | 200×100 | 10.0 | 23.000 |
| 100×65 | 8.0 | 9.940 | 200×100 | 12.0 | 27.300 |
| 100×65 | 9.0 | 11.100 | 200×100 | 15.0 | 33.700 |
| 100×65 | 10.0 | 12.300 | 200×150 | 12.0 | 32.000 |
| 100×75 | 6.0 | 8.040 | 200×150 | 15.0 | 39.600 |
| 100×75 | 7.0 | 9.320 | 200×150 | 18.0 | 47.100 |
| 100×75 | 8.0 | 10.600 | |||
| 100×75 | 9.0 | 11.800 | |||
| 100×75 | 10.0 | 13.000 | |||
| 100×75 | 12.0 | 15.400 |
#Are you a trading company or a manufacturer? We have manufacturer factory and import&export company, it is industry system
#What's your delivery terms? FOB CFR CIF
#What's your delivery time ? 60 days after received the L/C

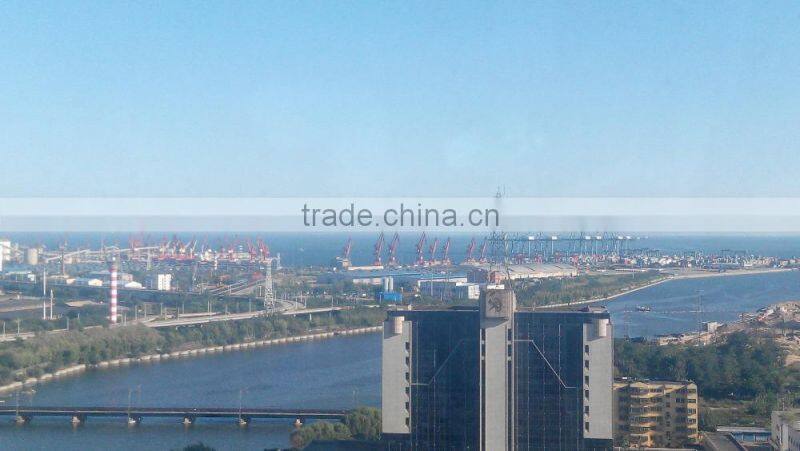

#What's your available port of shipment? Qinhuangdao Port, Xingang Port.
# What's your productions target market? Our productions have been sold to more than 15 countries, include USA, United Kingdom, Germany, Australia, Singapore, Saudi Arabia, The United Emirates, South Korea, Hong Kong, etc.
