Home > Products > DJM-600KG-1P-Rolling door motor > DJM-600kg-1p Rolling shutter motor

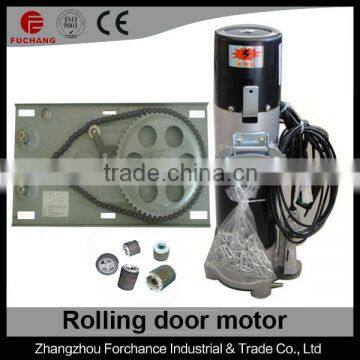

DJM-600kg-1p Rolling shutter motor
- XIAMEN
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Fuchang | |
| Model Number | DJM-600KG-1P |
Product Description
Remote control rolling shutter motor Speciafications:
1. Automatic door operators has pleasing designs with powerful drive.
2. With 120 ℃ overheat protection, overload protection.
3. Safety Brake, accurate limited control positioning, with double limit switch protection, can prevent door over roll-up.
4. Manual operation when power-off.
5. Powerful, low noise, lower energy consumption.
6.Easy to install, easy to maintain and long useful time.
7.With the natinal patent of chain-break protection device.
Rolling shutter motor Technical Specifications
| Model | Motor Power(W) | Max.lifting force(KG) | Max.hosting height(M) | Max.output Torque(N.W) | Rated Current(A) | Large Sprocket Reel Speed(R/MIN) | Chain No. |
| Power Supply(V/HZ): 220/50 | |||||||
| DJM-300-1P | 250 | 300 | 6 | 168 | 3.3 | 4.8 | 08B |
| DJM-400-1P | 250 | 400 | 6 | 225 | 3.3 | 4.8 | 08B |
| DJM-500-1P | 370 | 500 | 6 | 343 | 3.9 | 4.8 | 10A |
| DJM-600-1P | 370 | 600 | 6 | 412 | 3.9 | 4.8 | 10A |
| DJM-800-1P | 400 | 800 | 9 | 647 | 4.5 | 3.94 | 10A |
| DJM-1000-1P | 400 | 1000 | 9 | 809 | 4.5 | 3.75 | 12A |
| Power Supply(V/HZ): 380/50 | |||||||
| DJM-600-3P | 250 | 600 | 6 | 412 | 1.2 | 4 | 10A |
| DJM-800-3P | 300 | 800 | 9 | 647 | 2.0 | 3.94 | 10A |
| DJM-1000-3P | 400 | 1000 | 9 | 1102 | 2.3 | 3.74 | 12A |
| DJM-1300-3P | 600 | 1300 | 9 | 1372 | 3.0 | 4.4 | 12A |
| DJM-1500-3P | 600 | 1500 | 9 | 1610 | 3.2 | 5.2 | 16A |
High quality | 100% copper wire |
CERTIFICATIONS | CE,ISO9001 |
OEM/DEM | YES |
WARRANTY | 1 year from the day of shipment |
AC MOTOR INCLUDE | motor part, assembly bracket, remote control sets, flange & rings, metal key box. |
AC MOTOR LOAD CAPACITY | 450-500 SETS FOR ONE 20GP CONTAINER. |
MOTOR PACKAGE | TWO CARTONS WITH FOAM INSIDE , ONE FOR MOTOR, ONE FOR BRACKET |
