Bathroom Exhaust Fan System Usage American Type Clamp Connector
- Any Taiwan Port
- T/T
You May Like
-
American Quality Rubber Clamp Pipe Repair Clamps Purlin Clamp
-
American Type High Torque Pipe Clamp Stainless Steel Pipe Clamp
-
American Type HDPE Stainless Steel High Pressure Hose Clamps
-
Vehicle Usage Stainless Steel High Torque Metal Hose Clamps
-
Exhaust Muffler High Torque Stainless Worm Drive Hose Clamps
-
American Type Pipe Fittings Clamps Metal Clip or Clamps
Product Details
| Place of Origin | Taiwan, China | Brand Name | YDS | |
| Model Number | Y241-12.7W025 | Usage | Pipe Clamp | |
| Material | Stainless Steel | Structure | Other, Hose Clamp | |
| Standard or Nonstandard | Standard |
Product Description

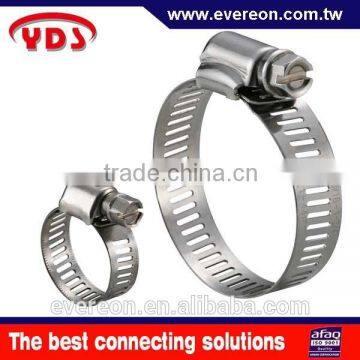

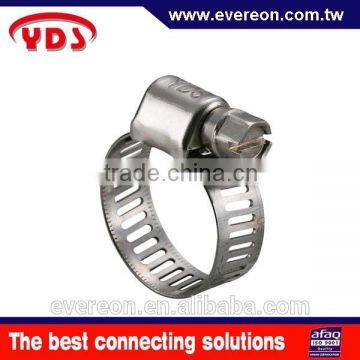

American Type Hose Clamp
- In accordance with SAE standard
- High tighting torque.
- The punched perforated band enables clamps to install easily and hold strongly.
- It is flexible for various pipe conditions.
- Multi-range hose clamp
Band Width:
3/8" (9 mm)
1/2" (12.7mm)
Material:
300S.S. (W4): Band, Housing and Screw are made of AISI 304 Stainless Steel.
The economy choice.
Application:
Hardware, Auto, Industry, Home DIY, Garden, low applying of the corrosion resistance
Clamping Range (Size, Diameter) | ||||
SAE SIZE | Min. (in) | Max. (in) | Min. (mm) | Max. (mm) |
2 | 1/4 | 1/2 | 6 | 13 |
4 | 5/16 | 5/8 | 8 | 16 |
5 | 7/16 | 3/4 | 11 | 20 |
6 | 1/2 | 7/8 | 12 | 23 |
8 | 1/2 | 1 | 13 | 25 |
10 | 9/16 | 1-1/16 | 14 | 27 |
Clamping Range (Size, Diameter) | ||||
SIZE | Min. (in) | Max. (in) | Min. (mm) | Max. (mm) |
| 6 | 1/2 | 7/8 | 12 | 23 |
8 | 1/2 | 1 | 13 | 25 |
10 | 9/16 | 1-1/16 | 14 | 27 |
12 | 11/16 | 1-1/4 | 17 | 32 |
16 | 11/16 | 1-1/2 | 17 | 38 |
20 | 13/16 | 1-3/4 | 21 | 44 |
24 | 1 | 2 | 25 | 51 |
28 | 1-1/4 | 2-1/4 | 32 | 57 |
32 | 1-1/2 | 2-1/2 | 38 | 63 |
36 | 1-3/4 | 2-3/4 | 44 | 70 |
40 | 2 | 3 | 51 | 76 |
44 | 2-1/4 | 3-1/4 | 57 | 82 |
48 | 2-1/2 | 3-1/2 | 64 | 89 |
52 | 2-3/4 | 3-3/4 | 70 | 95 |
56 | 3 | 4 | 76 | 102 |
60 | 3-1/4 | 4-1/4 | 82 | 108 |
64 | 3-1/2 | 4-1/2 | 89 | 114 |
68 | 3-3/4 | 4-3/4 | 95 | 121 |
72 | 4 | 5 | 102 | 127 |
80 | 4-1/2 | 5-1/2 | 114 | 140 |
88 | 5 | 6 | 127 | 152 |
96 | 5-1/2 | 6-1/2 | 140 | 165 |
104 | 6 | 7 | 152 | 178 |
Factory direct to you!!
EVEREON INDUSTRIES, INC. established in Taichung in 1993.
We are the professional mold producer at the primary stage, and our outstanding mold win a great reputation. After devoting our attention to the research and development for several years, we succeed in developing "German type Hose Clamp" in 1995, then became the pioneer factory of producing German type Hose Clamps in Taiwan.
As the leading manufacturing of hose clamps in Taiwan, we have always prided being "an excellent hose clamp supplier". We devote ourselves to provide various hose clamps with easy drive, durable use and safe connection for our valued customers. YDS Hose Clamp are able to add value in their business relationship by creating more revenue and cost savings, moreover, our clamps enhance the operation quality of Auto, Industry, Machinery...etc.
Products
Our products have been selling worldwide, and our clamps are mainly exporting to any types of applications. Competitive price, high quality product, and customers satisfaction make our valued customers are glad to build long business relationship with YDS Hose Clamp.
Our main products are including as below:
| 1. German type Hose Clamp |
| 2. American type Hose Clamp |
| 3. Ear Clamp |
| 4. CV Joint Boot Clamp |
| 5. Tool for Clamp |
| 6. Customized Product |
Quality
With the aim of guaranteeing our customers have the high quality hose clamps, we have:
| 1. ISO 9001 certification |
| 2. R & D lab. |
| 3. Engineering department |
| 4. Production lines |
| 5. QC & QA lab. |
Please find our web for more information
.tw






1. Help customers to have customized product.
2. OEM product is acceptable.
3. Factory direct to you.
4. Accept small quantities trial order.
5. Customer OEM art work is acceptable.
6. Quality products.
7. Competitive price.
8. Short lead-time.
9. Efficient service.
10. Customers Satisfaction.

Q: Is it possible for me to have free sample?
A: Yes, we can provide 10 pcs samples for free, but express charges will be collected or you can provide us your express account number for free samples.
Q: If I want to have customized products, what should I do?
A: Yes, we have R&D and mold departments to satisfy your requirement. We need the products' photo or drawing for making your customized products.
Q: If the order quantites is less than MOQ (USD 5,000 per order), is it possible for me to buy your products?
A: Yes, we accept less quantities trial order, but it will be needed to charge USD 200 for Custom Fee.
Any inquiries about hose clamps, please feel free to contact us.
