2013 New Products on Market! 1680 LED RGB Controller

Specifications

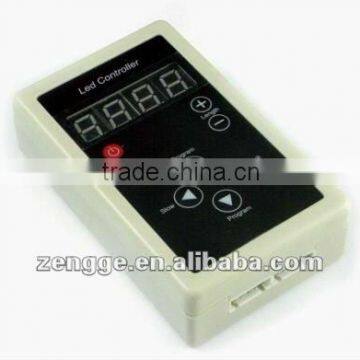

NAME: 1680 LED RGB controller

MODEL: CF12 A8

Summarization

1680  Dream-color RGB controller is designed for led production which use 6803 as driver , it has 32*32*32 gray scale ,length

set up function and Powerfail memory function, you could choose it freely in a lot of programs, It is very useful for light box

advertisement, stage light, house decorating and so on. Total mode is 94.

Technical parameters

 Working temperature: -20-60 °C

  Voltage supply: DC12V

  External dimension: L93.5ΧW58ΧH25.8 mm


  Net weight: 84g

  Gross weight: 127.5g

  Output: two SPI signals

  Rated power:2.2W

External Dimension

Direction for use

  Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between

  connecting wire before you turn on the power

Remote control’s key instruction

Connecting drawing:

Packing

1pc in white box, White box: L94*W58*H25mm

100pcs/carton, carton size:L20.5'*W11.8'*H13'/1.82'
