Home > Products > Concrete Pumping machine > DXBS40 Fine Stone Concrete Pump
DXBS40 Fine Stone Concrete Pump
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Power Type | Diesel | |
| Place of Origin | Shandong, China | Brand Name | CO-NELE | |
| Model Number | XBS40-11-56 | Power(W) | 56Kw | |
| Weight | 2500Kg | Dimension(L*W*H) | 4500*1500*1720 | |
| Certification | CE;ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DXBS Series diesel engine fine stone concrete pumps are suitable for the delivery of fine concrete in various engineering constructions, fire resistant and heat preservation materials, and greening soil in ecological environment constructions, as well as pressure grouting of various foundation piles.
Features

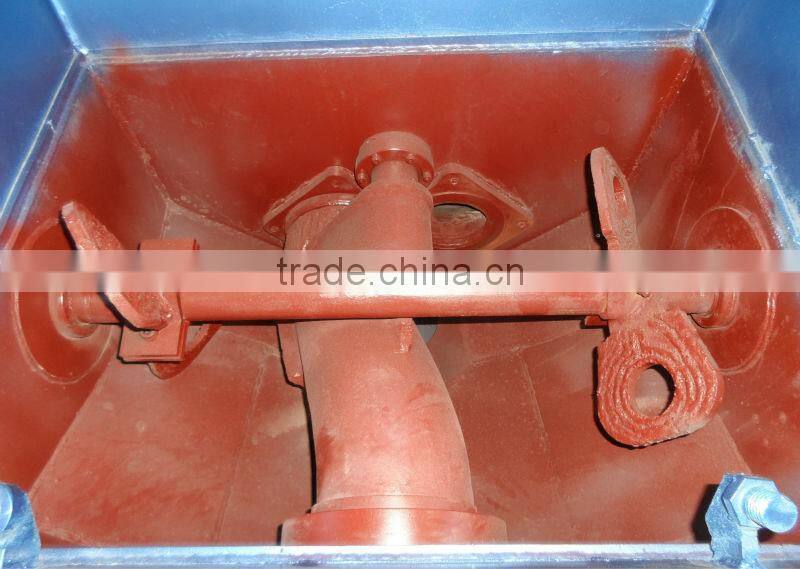

The adoption of advanced s-shaped pipe valve reverse is able to deliver fine concrete;
The highly hard wear resistant alloy materials are employed for the glass-like plate and cutting ring, guaranteeing a longer service life;
High outlet pressure can satisfy the delivery requirement of high-rises and remote constructions;

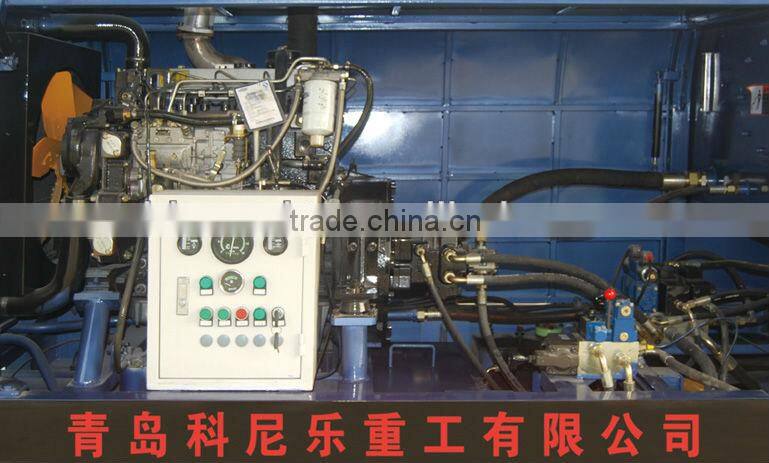

The hydraulic oil cooling is outfitted with a water cooling system, featuring good effect and convenient use;
The anti-pump function can maximally reduce pipe blocking;
Equipped with manual central lubricating system, the service life of rotational parts is made certain;
The electrical box is equipped with a wired remote control handle, convenient for operation.
Parameters
| Item | Unit | DXBS30-10-56 | DXBS40-11-56 |
| Max. Theo. capacity | m3/h | 30 | 40 |
| Max. outlet pressure | Mpa | 10 | 11 |
| Max. aggregate diameter | mm | ≤30 (≤20) | ≤30 (≤20) |
| Cylinder diameter × stoke | mm | 140×1200 | 140×1200 |
| Diesel engine power | Kw | 56 | 56 |
| Main oil pump | A10V045 | conele 100/k3v112s | |
| Inner diameter of delivery pipeline | mm | 100(80) | 100(80) |
| Outline dimension | mm | 4000×1500×1720 | 4500×1500×1720 |
| Weight | Kg | 2400 | 2500 |
| Max. Theo. delivery distance | m | Horizontal 500 | Horizontal 570 |
| m | Vertical 175 | Vertical 190 |
