Home > Products > HSS Annular Cutters > HSS annular drill (all-ground) with Fein shank-fully flute
HSS annular drill (all-ground) with Fein shank-fully flute
- Ningbo
- T/T
You May Like
-
HSS annular hole cutter (all-ground) with Fein shank-fully flute
-
2015 HSS core drill bit with universal shank from ch-tools
-
Cutting tools with Fein shank HSS annular cutter
-
Core drill bits of HSS with weldon shank
-
HSS with universal shank core dril bit (19.05mm)
-
HSS magnetic drill bit with weldon shank
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHTOOLS, CHTOOLS | |
| Model Number | DNHF | Type | Other, Core Drill Bit, Core Drill Bit | |
| Material | High Speed Steel | Use | Other, Metal Drilling, Metal Drilling |
Product Description

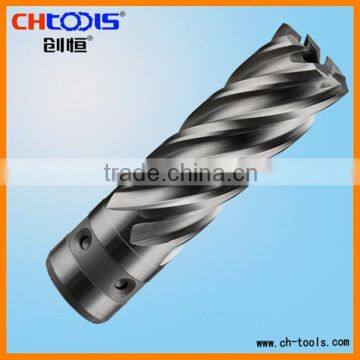

HSS annular drill (all-ground) with Fein shank-fully flute
HSS annular drill (all-ground) with Fein shank-fully flute
1. Fein shank, with more stable clamping for stable cutting and finish of holes.
2. Additional one hole on the shank of cutters ≤Φ40mm, fit arbors with 19.05 bore as well as quick-change system.
3. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.
4. Made of high-performance high speed steel., e.g. M2, M2AL, M35, M42 etc. And can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic.
5. The specifications from the Φ12mm to Φ65mm, depth of cut from25mm, 35mm, 50mm, 75mm and 100mm.
6. Special multi-cut geometry with ply-cutting and lower friction to reach better performance of endurance and removal of chips. So its life is lengthened. It is stable made and can cut with high speed, and make the surface of materials smooth. It has exact diameter and can use after regrinding.
7. TiN or TiAIN coating are available upon request.
8. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.
Type | Size(mm) |
DNHF-40120 | 12*50 |
DNHF-40130 | 13*50 |
DNHF-40140 | 14*50 |
DNHF-40150 | 15*50 |
DNHF-40160 | 16*50 |
DNHF-40170 | 17*50 |
DNHF-40180 | 18*50 |
DNHF-40190 | 19*50 |
DNHF-40200 | 20*50 |
DNHF-40210 | 21*50 |
DNHF-40220 | 22*50 |
DNHF-40230 | 23*50 |
DNHF-40240 | 24*50 |
DNHF-40250 | 25*50 |
DNHF-40260 | 26*50 |
DNHF-40270 | 27*50 |
DNHF-40280 | 28*50 |
DNHF-40290 | 29*50 |
DNHF-40300 | 30*50 |
DNHF-40310 | 31*50 |
DNHF-40320 | 32*50 |
DNHF-40330 | 33*50 |
DNHF-40340 | 34*50 |
DNHF-40350 | 35*50 |
DNHF-40360 | 36*50 |
DNHF-40370 | 37*50 |
DNHF-40380 | 38*50 |
DNHF-40390 | 39*50 |
DNHF-40400 | 40*50 |
DNHF-40410 | 41*50 |
DNHF-40420 | 42*50 |
DNHF-40430 | 43*50 |
DNHF-40440 | 44*50 |
DNHF-40450 | 45*50 |
DNHF-40460 | 46*50 |
DNHF-40470 | 47*50 |
DNHF-40480 | 48*50 |
DNHF-40490 | 49*50 |
DNHF-40500 | 50*50 |
DNHF-40510 | 51*50 |
DNHF-40520 | 52*50 |
DNHF-40530 | 53*50 |
DNHF-40540 | 54*50 |
DNHF-40550 | 55*50 |
DNHF-40560 | 56*50 |
DNHF-40570 | 57*50 |
DNHF-40580 | 58*50 |
DNHF-40590 | 59*50 |
DNHF-40600 | 60*50 |
More products for Reference:
Our company produces annular cutters, such as HSS/TCT annular cutters. Except that, we also produce and sell other products, such as spade drill, magnetic drill. hole saw, step drill, rail cutter and other accessories. The above products pictures for your reference. If you are interested in our products, you can search our website to view the product details, you also can contact with us
OUR COMPANY
♦We are professional manufacture of cutting tools in China, Annular cutter(core drill) is the very product developed and produced by our company. Annular cutter, hole saw, step drill and rail cutter are our main products.
♦CHTOOLS established in 1992.
♦24 years’ experience in R & D, manufacturing and sales.
♦State-level high –tech enterprises.
♦National Industry Standard for annular cutter was drafted by our company.
♦Insistence of “Quality First” for 23 years, sales volume first for 24 years.
TEAM &TRADE SHOW
♦We are a leading supplier and manufacturer of annular cutter in China and all over the world.
♦Many products here have CE, CCC certificates or meet ISO9001/14001 Certification Standard
1. What do you do?
- Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.
2. Can you do OEM for us?
- OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
3. Can you help us to do some change about your product?
- Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
4. Can I get a sample?
- Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
5. Are you a factory or trading company?
- We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.
6. Where is your company location?
- We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
