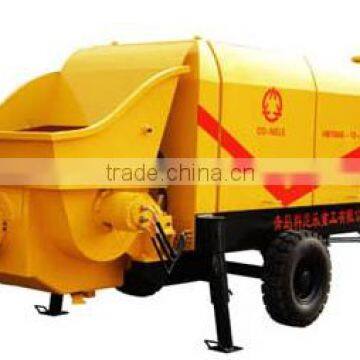

2016 famous electromotor concrete pump in china

FOB Price

US$ 19.99 - 76.66 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	CONELE
Model Number	HBT60S-13/HBT80S-16	Power(W)	90Kw
Weight	5000Kg	Dimension(LWH)	125/80*1650
Certification	CE&ISO9001	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Item		Unit
			HBT60S-13	HBT60S-16	HBT80S-13	HBT80S-16
Theoretical concrete conveying amount	Low pressure	m3/h	60	60	80	80
	High pressure	m3/h	36	35	47	46
Theoretical concrete conveying pressure	Low pressure	Mpa	7.6	9.6	7.6	9.6
	High pressure	Mpa	12.5	15.7	12.5	15.7
Distributor valve type			S-valve	S-valve	S-valve	S-valve
Hydraulic system pressure		Mpa	32	32	32	32
Motor speed		r/min	1480
Main oil pump			Imported German HAWE / Japanese Kwasaki with original packing
Main oil cylinder diameter		mm	125/80x1650	140/90x1650	125/80x1650(1800)	140/90x1650(1800)

Conveying cylinder diameter		mm	200
Motor power		Kw	90	110	110	132
Hydraulic oil tank capacity		L	500
Bucket capacity		m³	0.6
Work voltage		V
Whole machine weight		kg	5000	5200	5200	5500
Maximum conveying distance	Vertical	m	180	250	180	250

	Horizontal	m	700	1000	700	1000

Packaging & Shipping

Packaging Detail: Containers Waterproofing packing Corrosion resistant packing Reinforcement packaging

Delivery Detail: 15- 25 DAYS

Our Services

Our products are saled all over the country's 34 provinces, cities and autonomous regions, and have exported to more than 30 countries and regions around the world.

Receive maintenance call——Call guidance or send engineer to solve on the spot——If need change some parts———Within the guarantee time change the parts without charging/Without the guarantee time provide the parts with the favourable price

Within the guarantee time send the parts to the door without charging.

Without the guarantee time, provide lifelong charging service and favourable price parts.
