Inch Rod End - KM Series
US$ 15.32 - 40.32
/ Piece
100 Pieces(Min. Order)
- SHANGHAI
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
SI..E(S)/SI..ES-2RS Series Rod Body With Left or Right Female Threads,maintenance Required Rod Ends Housing
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Rod End Bearing Bearings
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Rod Ends Bearings POS PHS
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Tie Rod End for Tractor
-
Rod End Bearing 6mm Spherical Plain Rod Ends Maintenance Free With Left or Right-hand Thread on Rod Body
-
Spherical Rod Ends Manufacturer C&H in China Makes the Best Quality Rod Ends
Product Details
| Brand Name | C&H | Bore Size | 31.75, 50.8 | |
| Model Number | KM | Place of Origin | China | |
| Precision Rating | ABEC-1 |
Product Description
Specifications
KM... external right-hand threadKML...external left-hand thread
Rod end - KM..( right-hand ) / KML...(left-hand)
Maintenance required ,inch dimensions, heavy-duty
Rod body with right-hand (KM) or left-hand ( KML ) external thread
It is made up of a inch size radial spherical plain bearing GEZ..ES or GEZ..ES 2RS and rod body
Surface of rod body zinc plated,rod body with a grease nipple

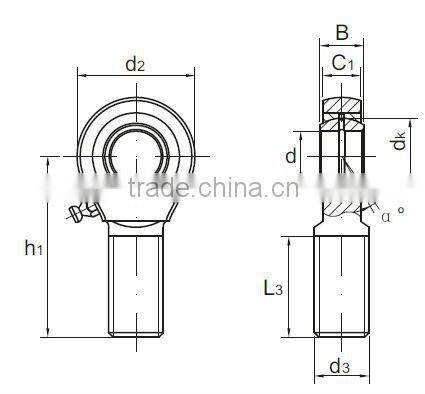

C&H | Dimensions mm | weight | FOB | |||||||
| d | B | C1 | d2 | h1 | L3 | dk | a | kg | USD | |
| KM20-1 | 31.75 | 27.762 | 23.8 | 69.85 | 104.8 | 53.98 | 45.59 | 3.5 | 1.09 | 15.32 |
| KM24-1 | 38.1 | 33.325 | 28.575 | 88.9 | 136.5 | 66.68 | 54.74 | 3.2 | 2.15 | 24.19 |
| KM32-1 | 50.8 | 44.45 | 38.1 | 127 | 203.2 | 101.6 | 73.03 | 3 | 6.46 | 40.32 |
For detial dimensions, please check with us before sending us an order.
