Rod End Bearing With Right or Left Hand Threads
US$ 1.13 - 8.87
/ Piece
1000 Pieces(Min. Order)
- SHANGHAI
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
Rod End - JF
-
Inch Rod End - KM Series
-
SI..E(S)/SI..ES-2RS Series Rod Body With Left or Right Female Threads,maintenance Required Rod Ends Housing
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Rod End Bearing Bearings
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Rod Ends Bearings POS PHS
-
Spherical Plain Bearing Rod Ends Requiring Maintenance POS & PHS With Male and Female Thread Tie Rod End for Tractor
Product Details
| Brand Name | C&H | Bore Size | 5, 30 | |
| Model Number | SIZP...S/SILZP...S | Place of Origin | China | |
| Precision Rating | ABEC-1 |
Product Description
Specifications
SIZP...S internal right-hand threadSILZP...S internal left-hand thread
Rod end - SIZP...S( right-hand ) /SILZP...S(left-hand)
Maintenance free
Rod body with lright-hand or left-hand internal thread
Outer race lined with bronze liner
Surface of rod body zinc plated

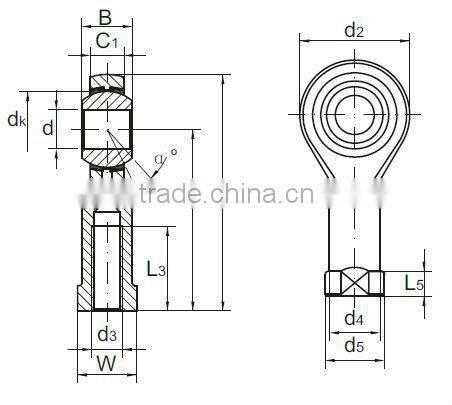

C&H | Dimensions mm | weight | FOB | |||||||||||||
| d | B | C1 | d1 | R1S | d2 | h1 | L3 | L4 | L5 | d4 | d5 | w | a | kg | USD | |
| SIZP4S | 4.826 | 7.92 | 6.35 | 7.8 | 0.3 | 15.88 | 26.97 | 14.27 | 34.91 | 4.75 | 7.54 | 10.31 | 7.92 | 10 | 0.015 | 1.13 |
| SIZP6S | 6.35 | 9.53 | 7.14 | 8.4 | 0.3 | 19.05 | 33.32 | 19.05 | 42.85 | 4.75 | 9.15 | 11.91 | 9.53 | 13 | 0.025 | 1.21 |
| SIZP7S | 7.938 | 11.1 | 8.74 | 11.4 | 0.3 | 22.23 | 34.93 | 19.05 | 46.04 | 4.75 | 10.72 | 12.7 | 11.1 | 10 | 0.036 | 1.37 |
| SIZP9S | 9.525 | 12.7 | 10.31 | 13.1 | 0.6 | 25.4 | 41.28 | 23.8 | 53.98 | 6.35 | 13.89 | 17.45 | 14.27 | 9 | 0.061 | 1.77 |
| SIZP11S | 11.113 | 14.27 | 11.1 | 14.9 | 0.6 | 28.58 | 46.02 | 26.97 | 60.31 | 6.35 | 15.49 | 19.05 | 15.88 | 11 | 0.084 | 1.94 |
| SIZP12S | 12.7 | 15.88 | 12.7 | 17.7 | 0.6 | 33.32 | 53.98 | 30.15 | 70.64 | 6.35 | 18.67 | 22.23 | 19.05 | 9 | 0.133 | 2.10 |
| SIZP15S | 15.875 | 19.05 | 14.27 | 21.1 | 0.6 | 38.1 | 63.5 | 38.1 | 82.55 | 7.92 | 21.84 | 25.4 | 22.23 | 11 | 0.19 | 3.06 |
| SIZP19S | 19.05 | 22.23 | 17.45 | 24.8 | 0.6 | 44.45 | 73.03 | 44.45 | 95.25 | 7.92 | 25.02 | 28.58 | 25.4 | 10 | 0.285 | 5.65 |
| SIZP25S | 25.4 | 34.93 | 25.4 | 32.2 | 0.6 | 69.85 | 104.78 | 53.98 | 139.7 | 11.1 | 37.72 | 44.45 | 38.1 | 14 | 1 | 8.87 |
For detial dimensions, please check with us before sending us an order.
