Pitch:2.54mm Pin Header Single Row Right Angle Dip Type H=2.54m Wire to Board Terminalm
US$ 0.01 - 0.01
/ Piece
1 Piece(Min. Order)
- Hongkong Port Shenzheng Port.
- T/T L/C D/P D/A Money Gram PayPal
You May Like
-
2.54mm Pitch Pin Header Dual Row Straight Dip Type Pcb to Pcb Connector
-
2.54mm Pitch Pin Header Dual Row Straight Dip Type
-
Pitch :2.54mm Pin Header Single Row S.M.T Straight Dip Type
-
1.27mm Pitch Pin Header Single Row S.M.T Type
-
1.27*2.54mm Pitch Pin Header Dual Row Right Angle Dip Type
-
2.17mm Pitch Pin Header Single Row Right Angle Dip Type
Product Details
| Place of Origin | Guangdong, China | Brand Name | UVK | |
| Model Number | B15-XX-XX-XX-XX-X | Type | Other, wire to connector | |
| Application | PCB | Gender | Male |
Product Description

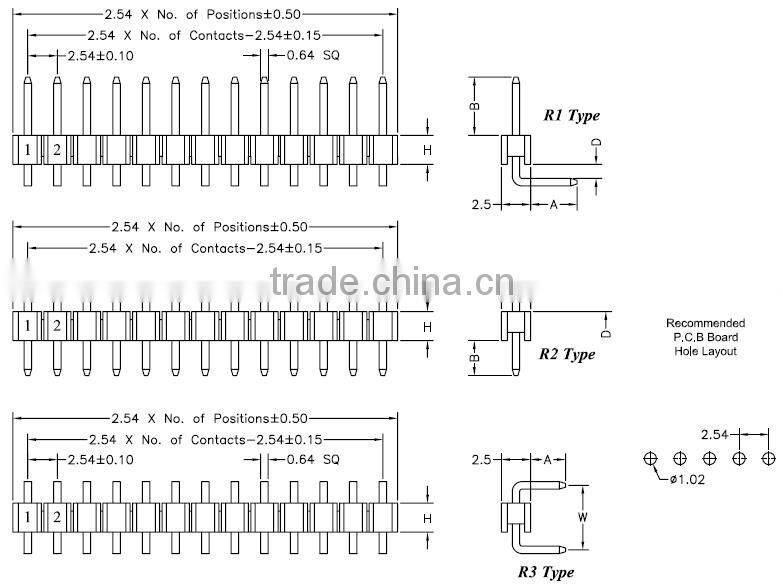

Pitch:2.54mm Pin header Single Row Right Angle Dip Type wire to board terminal
Specification
Electronic connector types electrical connector
1.We are manufacturer;
2.Free sample; Timely delivery;
3.Strict quality control,competitive price;
3.Strict quality control,competitive price;
4.Insulator: PBT+30%G.F ,UL94V-0
5.Terminal:Copper alloy wire to board terminal
6.Current Rating:3Amps/contact max.
7.Contact resistance: ≤20mΩ/contac
8.Insulation resistance: ≥1000mΩ at V=100V
9.Withstanding Voltage:550V AC/minute
10.Operating temperatures:Gold Plated:-55 ℃ to +105 ℃
Tin Plated:-40 ℃ to +105 ℃
Tin Plated:-40 ℃ to +105 ℃
11.Soldering temperature:+220 ℃,10s max
12.Row and tiers type:Double Row Single tier/Double Row double tiers.
13.Insulator Material Option: PBT/PA6T/PA9T/LCP.
Equipment and Workshop
Feature:
1.100% tested before delivery.
2. OEM/ODM are available.
3. Our products are widely used for air-conditioner, refrigerators, washing machines, computers and many other household appliances, as well as automotive electric products.
4. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
Certification: Pin header connector
