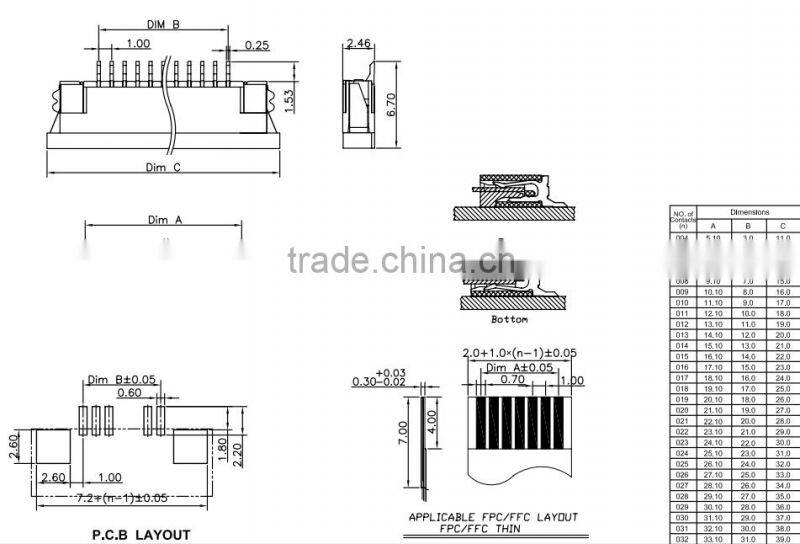

1.0mm Pitch Upper Bottom Type H=2.5 SMD ZIF FPC Connector

 1.0mm Pitch upper Bottom Type H=2.5 SMD ZIF FPC Connector

Product Specification

Insulator:LCP,UL94V-0

Terminal:copper alloy

Current rating:0.3Amps/contact max

Contact Resistance: ≤60m Ω /contact

Insulation resistance: ≥500M Ω

Dielectric Voltage:150V AC/minute

Operating temperature:-35 ℃~85 ℃

 FPC Series

 FPC CONNECTOR  widely applcation for pcb  board,panel,phone,laptop,notebook,ipad,touch screen,touch  panel,ect.

Equipment and Workshop

Feature:

1.100% tested before delivery.

2.OEM is available. Differential impedance matching

3.Our products are widely used for air-conditioner, refrigerators,     washing machines, computers and many other household appliances, as   well as automotive electric products.

4.Free to contact us, we can offer you the best service, top-quality   goods, competitive price and timely delivery.

Certification:

RoHS/REACH compliant,  ISO9001:2008  ISO14001:2004

Packing

1.Standard packing according to different products; eg,tube reel or     more

2.Can be customized according to your requirements.

3.about three working days after the receipt of payment.

we  provide  a  total  interconnector  solution to suit  your  cost  and needs

 YOUR BEST CHOOSE U-WILCOME FACTORY SUPPLY THE BEST QUALITY CONNECTOR
