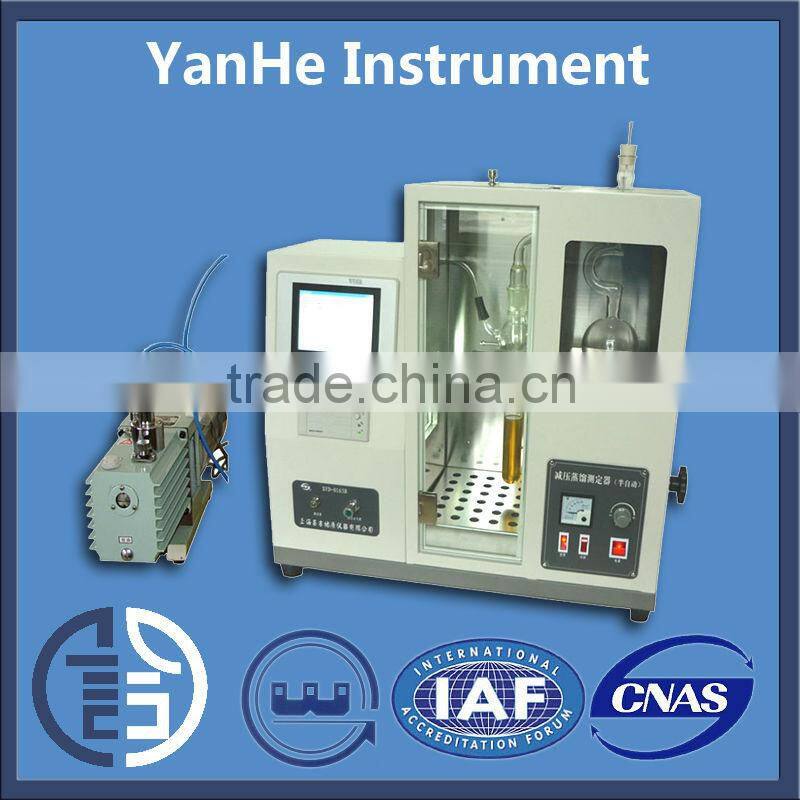

SYD-0165B Semi-automatic Wax Oil Vacuum Distillation Apparatus With LCD Display
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- PayPal
You May Like
-
SYD-0165 Benchtop Lab Vacuum Distillation Apparatus With DTC
-
SYD-255 Stable Adjustable Petroleum Products Distillation Apparatus
-
SYD-510Z-3 Automatic Solidifying Point& Pour Point Tester With Karl Fischer Titration
-
SYD-2122 Karl Fischer Titrator With DC Working Power Supply
-
SYD-260A Easy Installation and Removal Water Content Tester for 2 Samples Testing
-
SYD-260 Asphalt Water Content Tester With Condenser Support Rod
Product Details
| Type | Pressure Steam Sterilization Equipments | Brand Name | Yanhe | |
| Model Number | SYD-0165B | Place of Origin | Shanghai, China |
Product Description
Summary
This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process.It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process.It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
I. Main technical features
1. It adopts single-chip machine technology to control the vacuum pressure automatically.
2. It adopts high accuracy temperature sensor to detect the steam temperature automatically. No need to observe it by naked eye.
3. It adopts LCD technology, can input, modify and show parameters and control them by touch screen.
4. It equips a micro-printer to save and print test results.
1. It adopts single-chip machine technology to control the vacuum pressure automatically.
2. It adopts high accuracy temperature sensor to detect the steam temperature automatically. No need to observe it by naked eye.
3. It adopts LCD technology, can input, modify and show parameters and control them by touch screen.
4. It equips a micro-printer to save and print test results.
II. Main technical specifications
1. Power supply: AC(220±10%)V , 50Hz.
2. Heating furnace of distillation flask: (0~1000)W, adjustable
3. Heating power of receiver: 350W,automatically controlled.
4. Temperature control point of receiver: Ambient to 99℃±3℃,adjustable.
5. Setting range of vacuum residual pressure: (2~99) mmHg±0.1mmHg.
6. Measurement range of vacuum residual pressure: (2~150) mmHg±0.1mmHg, automatic pressure maintenance
7. Volume of buffer vessel: 1000ml
8. Illumination light in the air bath :Energy saving lamp
9. Working condition: Ambient temp.:(5~35)℃
RH:< 85%
10. Dimension: 600mm×230mm×605mm
2. Heating furnace of distillation flask: (0~1000)W, adjustable
3. Heating power of receiver: 350W,automatically controlled.
4. Temperature control point of receiver: Ambient to 99℃±3℃,adjustable.
5. Setting range of vacuum residual pressure: (2~99) mmHg±0.1mmHg.
6. Measurement range of vacuum residual pressure: (2~150) mmHg±0.1mmHg, automatic pressure maintenance
7. Volume of buffer vessel: 1000ml
8. Illumination light in the air bath :Energy saving lamp
9. Working condition: Ambient temp.:(5~35)℃
RH:< 85%
10. Dimension: 600mm×230mm×605mm
