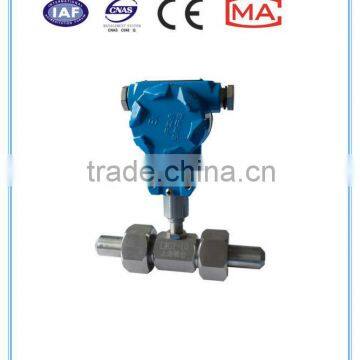

High pressure flow meter with analog output and CE approver
- Shanghai
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | HUGE | |
| Model Number | LWGY-10 |
Product Description
Specifications
High pressure flow meter1>High pressure:40mPa
2>Output:pulse,4-20mADC
3>Display:LCD,LED
High pressure flow meter
Feature:
1.Hi-Accuracy 0.2%,0.5%,1% optional.
2.Wearable Tungsten carbonized shaft and bearing,be the same with medium of sully.
3.Erode-resistant Be the same with sea water,ammonia,acetometer,etc
4.Bi-direction Pulse,4~20mADC,total and rate display in the field
5.Power supply 5~24VDC
6.Explode-proof Ex d11 BT4/Ex ib 1
7.spectrum 2,4,6,10,15,25,40,50,80,100,150,200,250,300mm
Specifocation:
DN(mm) | Flow range(m3/h) | Medium temp. | PN (mPa) | Env.Temp | Pressure loss (mPa) | |||||
Error (0.2%) | Error (0.5%) | Error (1.0%) | ||||||||
Min | Max | Min | Max | Min | Max | |||||
2A |
|
|
|
| 0.03 | 0.16 | -20~+120 (150*) (Degree Centigrade) | 6.3 | -25~+55 (Degree Centigrade) | 0.12 |
4A |
|
|
|
| 0.04 | 0.25 | ||||
6A |
|
|
|
| 0.1 | 0.6 | 6.3 16* 25* 40* | 0.08 | ||
10A |
|
|
|
| 0.2 | 1.2 | 0.05 | |||
15A |
|
| 0.6 | 4 | 0.6 | 6 | 0.035 | |||
25A |
|
| 1.6 | 10 | 1 | 10 | ||||
40A | 3 | 20 | 3 | 20 | 2 | 20 | 1.6or2.5 16* 25* | 0.025 | ||
50A | 6 | 40 | 6 | 40 | 4 | 40 | ||||
80A | 16 | 100 | 16 | 100 | 10 | 100 | ||||
100A | 25 | 160 | 25 | 160 | 20 | 200 | 1.6 2.5 | |||
150A | 60 | 400 | 50 | 300 | 40 | 400 | ||||
200A |
|
| 100 | 600 | 80 | 800 | ||||
250A |
|
| 160 | 1000 | 120 | 1200 | 1.6 | |||
300A |
|
| 260 | 1600 | 180 | 1800 | ||||
