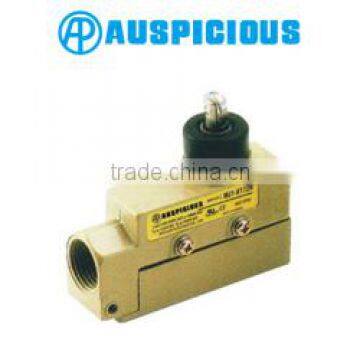

AZ-6112R Oil-tight, Enclosed Limit Switch 15A 250V Sealed Cross Roller Plunger

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 0 per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	AP, Auspicious
Model Number	AZ-6112R	Protection Level	IP67
Operating Temperature	-10℃~+80℃	Max. Current	15A
Max. Voltage	250V

Product Description

AZ-6112R ENCLOSED LIMIT SWITCH

FEATURES

Side mount switches.
Momentary contacts.
Level or plunger operation.
Regular or sealed operating heads.
Completely sealed construction.
1/2" conduit entry, captive cover screws.
Dustproof, Oil-Tight, Water-Resistant.
Temperature range +15°F to +175°F (-10°C to +80°C).

AZ6 Series side mount switches are offered with or without actuator seal boots. Both have a combination insulator seal cemented inside the bottom enclosure. Lead washers are used to seal the mounting holes on side mount switches.

The elastomer boot on sealed actuator versions and cover seal on all switches protect the actuating mechanism and the internal basic switch from contaminations.

All side mount switches are installed with M4 screws. Removal of the botton enclosure exposes the terminals for easy wiring.

CHARACTERISTICS

Operating Speed	0.01mm to 1m/sec.
Operating Frequency	Mechanically: 240 operations/min. Electrically: 20 operations/min.
Contact Resistance	15m Ω max. (initial)
Insulation Resistance	100m Ω min. (at 500VDC)
Dielectric Strength	1,000VAC, 50/60HZ for 1 minute between non-continuous terminals. 2,000VAC, 50/60HZ for 1 minute between current-carrying part and ground.
Vibration	Malfunction durability: 10 to 55HZ; 1.5mm double amplitude
Shock	Mechanical durability: Approx. 1,000m/sec2 (approx. 100G's) Malfunction durability: Approx. 300m/sec2 (approx. 30G's)
Ambient Temperature	Operating: -10°C to +80°C
Humidity	General purpose type: 85% RH max. Sealed type: 95% RH
Service Life	Mechanically: 20,000,000 operations min. Electrically: 500,000 operations min.

Please visit .tw for more detail information.
