High Quality Fire Rated Glass Door (CF-F010-1) Quality Choice
US$ 80 - 160
/ Piece
50 Pieces(Min. Order)
- Ningbo or Shanghai
- T/T
You May Like
-
90 Minutes Glass Steel Fire Rated Door (CF-F010)
-
Double Steel Fire Door With Glass With BS and UL Certificate (CF-F009)
-
2016 New Design Superior 2 Hours Fire Rated Door for Home (CF-F001)
-
Made In China Custom Metal Entrance Fire Exit Door (CF-F006)
-
UL Certificate Fire Rated Door (CF-F006)
-
High Quality 90 Minutes Steel Fire Door
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chinfine | |
| Model Number | CF-F010 | Open Style | Swing | |
| Position | Exterior | Surface Finishing | Finished | |
| Type | Entry Doors | Door Material | Steel |
Product Description

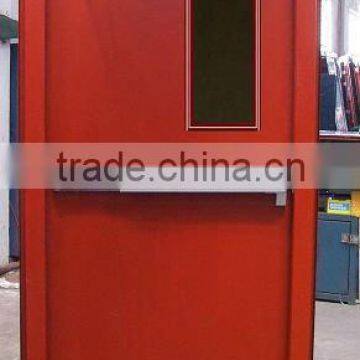

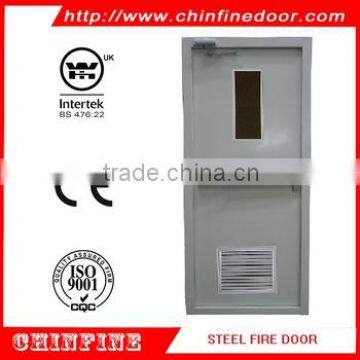

WH approvedSteel Fire-proof door with vision panel and louver
1) Material: galvanized steel with powder coating.
1) Material: galvanized steel with powder coating.
2) Door frame outer dimensions(H*W): customized
3) The doorleaf thickness:50/70mm;
4) The door surface panel thickness:0.8-1.0mm
5) The door frame steel thickness:1.8-2.0mm
6) Opening direction: outward
7) Hinge position: on left / on right
8) Doorsill:painted
9) Hinge:4pcs 180 degree visible fire-proof hinge
10)Handle:Push(panic) bar or normal fire lock

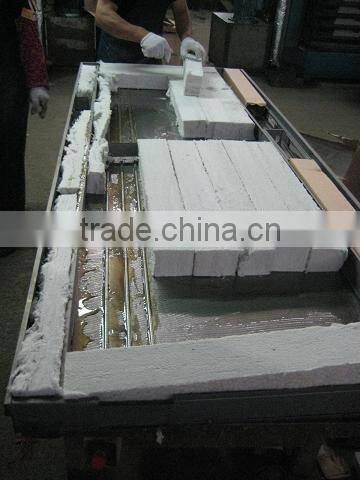

11)Filled material:Siliacte-Aluminium board(Ceramic fiber board )
12)Packing: Foam plastic pad + bubble bag and export outer box
13)Fire rate:1.0H;1.5H,
14)Keep in complete form by≥950°C
15)Back side doorleaf average temperature is about 83.3°C after 1.2H or longer time burning
16)Fire-proof seal arount the door
17)Delivery lead time:20~25days
18)Loading QTY:120PCS/20FC; 308PCS/40HQ
19)Payment:T/T or L/C at sight
20)Delivery port: Ningbo or Shanghai

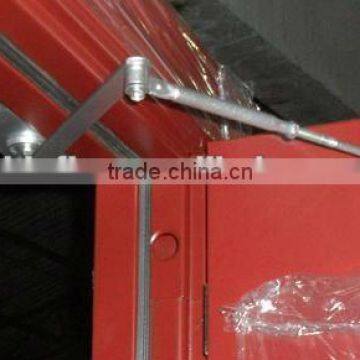

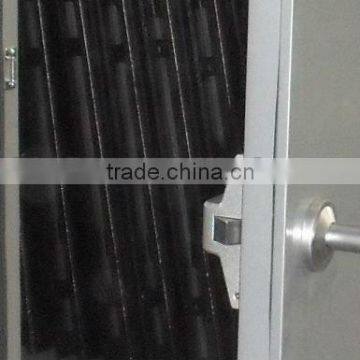

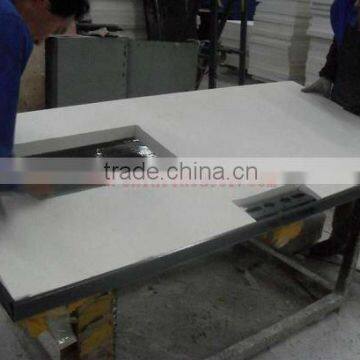

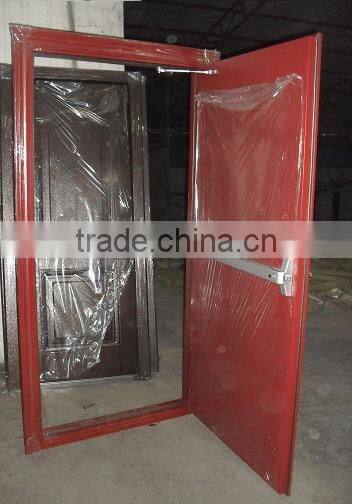

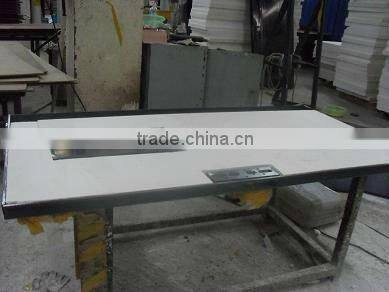

THE DETAIL PICTURES OF FACTORY
DETAIL SPECIFICATION OF FIRE DOOR
1 | Steel sheet of door panel | 1.0mm galvanized steel |
2 | Steel sheet of door frame | 2.0mm galvanized steel |
3 | Frame outer sizes (HxW) | 2000 x900/1000mm, or customized size |
4 | Thickness of the door leaf | 50 mm |
5 | Opening direction | Left / Right |
6 | Inner filling material | Siliacte-Aluminium board/OMG board |
7 | Rubber sealed | Double-layer rubber sealed strip around the door |
| 8 |
Surface treatment
|
Bright, lustrous and durable appearance, the door surface via acid cleaning phosphorizing antirust processing Heat-transfer printing on surface: looks like the natural wooden grain. Or powder coating on surface |
