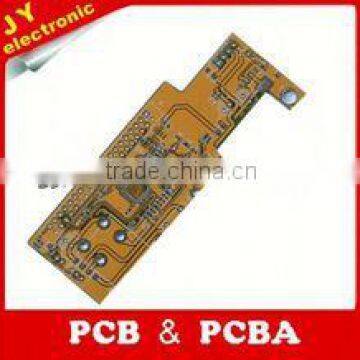

double ics and ntc pcb manufacturer
- 600 Square Meter / Square Meters per Month
- DALIAN PORT
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | JY | |
| Model Number | JY PCB | Base Material | FR4,FR1,CEM3,Aluminum,Ceramic | |
| Copper Thickness | 1oz~4oz | Board Thickness | 0.5~3.2mm | |
| Min. Hole Size | 0.15mm | Min. Line Width | 0.08mm | |
| Min. Line Spacing | 0.08mm | Surface Finishing | HASL,Lead Free HASL, OSP,ENIG,Gold plating |
Product Description
Specifications
a. double ics and ntc pcb manufacturerb. PCB Clone/Copy
c. PCB Design
d. Turkey service
e. UL, SGS, RoHs,TS
double ics and ntc pcb manufacturer manufacturer
You make a good choice!
Welcome to Dalian JY Electronic Technology Co., Ltd.
There is professional pcb&pcba design group waiting for you! Also there is pcb&pcba factory producing for you! Welcome your inquiry!
We independently research and develop Internet control system, Internet numericalcontrol system, robot control system and produce hardware and software independently for control management etc.. Also supply clients SAS Marketing Automation. Door bell, car alarm, mobile solar charger design by us is most welcome products.
PCB Certificates Details
All our certificates are just for PCB, not for PCBA, pls notice.
JY Factory Real Photos
The last three pieces photos are pcba factory.
JY Main Clients
JY PCB Engineering Capacity
| No. | Item | Spec |
| 1 | Layers | 1 to 24 layers |
| 2 | Max working panel area | 457 x 610 mm |
| 3 | Min board thickness | 4 layer: 0.40mm |
| 6 layer: 0.80mm | ||
| 8 layer: 1.00mm | ||
| 10 layer: 1.20mm | ||
| 4 | Min trace width | 0.10mm |
| 5 | Min spacing | 0.10mm |
| 6 | Min hole diameter | 0.20mm |
| 7 | Min Copper thickness in hole | 0.020mm |
| 8 | PTH size tolerance | ±0.05mm |
| 9 | NPTH size tolerance | ±0.025mm |
| 10 | Hole position tolerance | ±0.05mm |
| 11 | Dimension tolerance | ±0.1mm |
| 12 | Min solder mask dam | 0.08mm |
| 13 | Insulation resistance | 1E+12Ω (normal condition) |
| 14 | Max Board thickness/Hole size Rate | '10:01:00 AM |
| 15 | Thermal shock endurance | 288 3 times in 10sec |
| 16 | Max Board twist and wrap | ≤0.7% |
| 17 | High Vlotage endurance | 1.3KV/mm |
| 18 | Copper foil peel off endurance | 1.4N/mm |
| 19 | Hardness of resist ink | ≥6H |
| 20 | Flame resistance | 94V-0 |
| 21 | Impedance control | ±5% |
| 22 | Certificate | ISO 9001:2000;ISO 14001;ISO/TS16949:2002 ,UL E203640 |
JY PCB QC System
JY PCB Payment way and Delivery way.
Our payment way is flexible and multiple. For samll quantity order, we supply Express delivery.For mass order,we delivery by ship.
double ics and ntc pcb manufacturer ,contact maggie for details!
...
Contact Us
- Dalian JY Electronic Technology Co., Ltd.
- Contact nameFrank Zhu Chat Now
- Phone86-411-66361648
- AddressNo.13-1 Youquan Road, Zhanqian Street, Jinzhou District, Dalian, Liaoning
