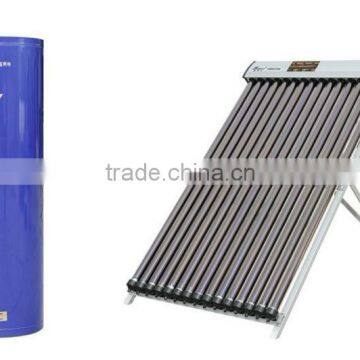

split pressurized solar water heater
- Shanghai or Ningbo
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Pressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Split | Installation | Freestanding | |
| Housing Material | Stainless Steel | Certification | CE | |
| Capacity | 250 | Place of Origin | Zhejiang, China | |
| Brand Name | JiaDeLe |
Product Description
Specifications
The upright tank can keep the water temperature at different level. It can heat the top water instantly.Key Specification:
The upright tank can keep the water temperature at different level. It can heat the top water instantly. The special structure can prevent from mixing the cold an hot water together.
The tank is located in the building, the connection pipe between the tank and water tap is very short, so that hot water can be used instantly and seldom cold water flows out. The hot water loses less energy than the normal one.
The heater collector and the water tank is separated that makes the system combine with the building perfectly, which will not effect the sightseeing of the building and the environment around.
Back up with electric heater so that in the day without sunshine hot water can also used.
Capacity: 100L,150L,200L,250L,300L,400L,500L.
MATERIAL:
Inner tank: stainless steel SUS 304-1.2mm/porcelain inner tank
Out tank: painted steel-0.6mm/stainless steel-0.6mm
Insulation: 47.5-60mm polyurethane
The use pressure:<6 bar
The test pressure:10 bar
Accessories:
Electric heater
The temperature and pressure relief valve
The sensor
The copper coil heat exchanger: one or two
The drain pipe
The installation method: vertical
