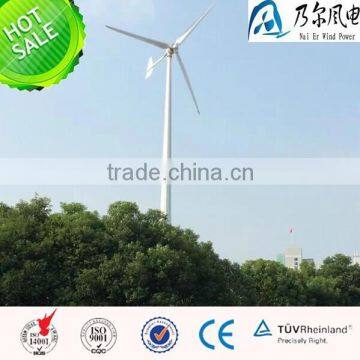

Cost effective 10KW magnetic wind power generator
- 30 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
10kw 380v 50hz household wind electric generator ,china supplier
-
high efficiency 10kw wind turbine with high quality for sell
-
Wind Power Generator Type 2kw wind generator
-
rated 100w wind generator on sale made in china
-
high efficiency competitive price 1500w wind turbine made in china
-
off grid system 1000watt 48/96v wind power turbine with best price made in china
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Naier | |
| Model Number | NE-10k | Type | Wind Power Generator |
Product Description
Specifications of 10KW magnetic wind power generator
household wind generator
stable,safe,low noise
good power output
easy installation
CE/ISO certified
As Manufacturer of 10KW magnetic wind power generator for over 6 years, we offer you:
Stable products
Practical solutions
Competitive price
Best after sales service
Welcome to contact us, we are ready to offer what available.
Model | NE-3k | NE-5k | NE-10k |
Rated power | 3kw | 5kw | 10kw |
Maximun power | 4kw | 6kw | 13kw |
Rated voltage | 96/120/220V | 120/220/240v | 220/240/380v |
Start-up wind turbine | 3m/s | 3m/s | 3m/s |
Rated wind speed | 10m/s | 10m/s | 10m/s |
Survival wind turbine | 45m/s | 45m/s | 45m/s |
Top net weight | 205kg | 285kg | 400kg |
Wheel diameter | 5.6m | 6.3m | 8.2m |
Number of blades | 3 | ||
Blades material | Reinforced glass fiber | ||
generator | Three phase permanent magnet ac synchronous generator | ||
magnet | NdFeB | ||
Generator case | Carbon steel | ||
Control system | Electromagnet/wind wheel yaw | ||
Speed regulation | Tail furling | ||
Working temperature | -40°C - 80°C | ||
Design life | 20 y | ||
10KW magnetic wind power generator Product Features
1.Carbon steel body, compact, safe
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant
6.Controller,inverter can be matched accroding to customers’ specific needs
Manfacturing process
10KW magnetic wind power generator
10KW magnetic wind power generator for farms,remote house, mines,villas,hotels,parks,some small industrial equippments etc, matched with solar panel, hybrid system,a constant and efficient power supply
Wind Solar hybrid connetion diagram
