5kw low torque PMG generator

FOB Price

USD $1,200 - $1,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	NaiEr
Model Number	NE-5000P		Type	Wind Power Generator

5kw low torque PMG generator pictures :

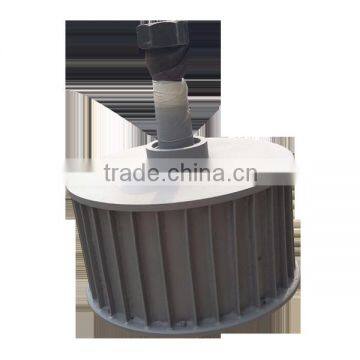

real picture:

5kw low torque PMG generator Features:

1.Gearless, direct drive, low RPM generator

2.Excellent heat dissipation due to the carbon steel outer frame and special internal structure.

3.permanent magnet generator rotor using patented alternator, together with the special stator design

5kw low torque PMG generator Tech Data:

Model	NE-5kw
Rated Power(w)	5000w
Max Power(w)	7000w
Rated Voltage(v)	96V/120V/220V
Rated rotated speed(r/m)	300r/m
Top net weight(kg)	85kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃

5kw low torque PMG generator details:

5kw low torque PMG generator Packing:

CE:

Contact:
