Warehouse 415V/50HZ Big Ceiling Fan Malaysia With Metal Blades
- Shanghai
You May Like
-
24 Foot Aerodynamics Blades High Volume HVLS Industrial Ceiling Fan
-
6.1M Diameter Metal Fan Blades Large HVLS Ceiling Fan Malaysia
-
16ft Indoor Air Cooling HVLS Industrial Ceiling Fan With Metal Blades
-
I-beam Steel Warehouse Large Cover Cooling Industrial Ceiling Fan
-
Qualified HVLS Fan Supplier National Industrial Ceiling Fan Sale
-
Electricity Power 1.5KW Large Indoor Farmhouse HVLS Ceiling Fan
Product Details
| Electric Current Type | AC | Blade Material | Other, Magnalium | |
| Mounting | Ceiling Fan | Place of Origin | Shanghai, China | |
| Brand Name | KALE | Model Number | KL-HVLS-D6BAA73 | |
| Power | 1.5kw | Voltage | 380V/220V/415V | |
| Air Volume | 13050m³/min | Speed | 55rpm | |
| Certification | CCC, CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
Warehouse 415V/50HZ Big Ceiling Fan Malaysia With Metal Blades
Brief Introduction of EURUS Series Fan
1. Large size of 3.6m-7.3m
2. Branded LENZE geared motor & YASKAWA VFD
3. High effient & energy saving of max 1.5KW power
4. Area coverage up to 1400m2 per fan
Technical Parameters
Specifications | 12ft(3.6m) | 16ft(4.9m) | 20ft(6.1m) | 24ft(7.3m) |
Model | D6BAA36 | D6BAA49 | D6BAA61 | D6BAA73 |
Max Air Volume | 10350m³/min | 11250m³/min | 12150m³/min | 13050m³/min |
Max Speed | 95RPM | 75RPM | 65RPM | 55RPM |
Fan Body Weight | 65KG | 80KG | 105KG | 120KG |
Power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
Full-load Amps | 2.4amps/380V 4.2amps/220V | 2.4amps/380V 4.2amps/220V | 3.5amps/380V 5.7amps/220V | 3.5amps/380V 5.7amps/220V |
Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
4. Packing: export standard crates.
5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.
| Main Components | |
![]() | Motor System---imported Germany LENZE motor 1.Low backlash assembly process and gear grinding technique, lower noise 2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety 3.Adopt IE2 high efficient motor, save more 5-10% than IE1 4.Passed CCC, CE, UL certificates |
![]() | Control Sytem (VFD Controller) 1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents. 3. YASKAWA VFD |

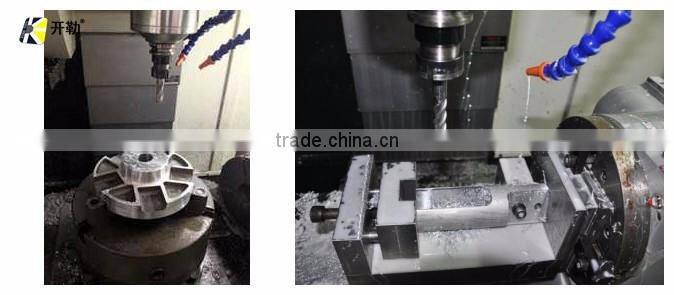

![]() | Driving Hub Adapt imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance. |
![]() | Jacketed Connector aircraft grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running. |
![]() | Patented Kale Airfoil Blades™ Fan Blade High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components. |

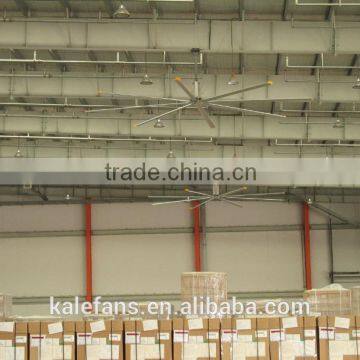

Installation Conditions

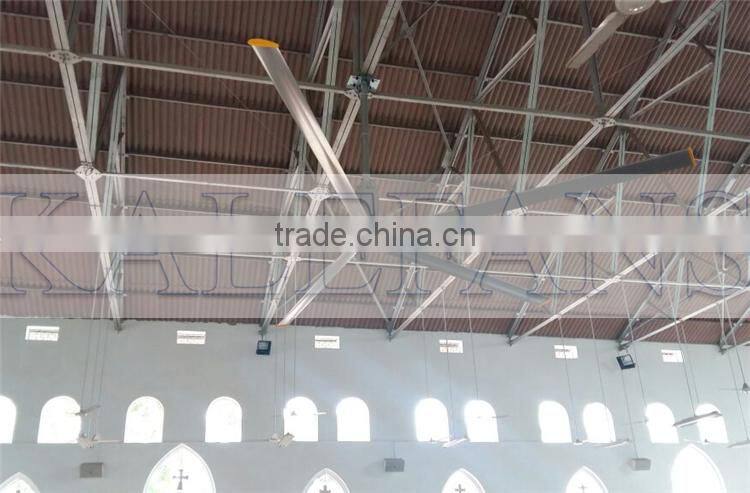

Case Photo in India Church
Factory View
Certificates
1. Every details we can concern: place order, manufacture, delivery, you just accept them.
2. 3-year warranty for each fan to guarantee
3. Can customize as your reqiurements
4. Free maintenance for the fan
5. 24-hour per day service
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
