2000w function generator for wind turbine / research/ prototype

FOB Price

USD $380 - $550 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	NaiEr
Model Number	NE-2000		Type	Wind Power Generator

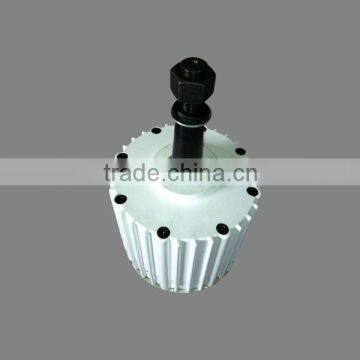

2000w function generator for wind turbine / research/ prototype pictures:

we can provide you a base if you need:

ac three phase rare earth 2000w low rpm generator Details:

2000w function generator for wind turbine / research/ prototype Features:

1,Gearless, direct drive, low RPM generator

2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.

3,Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.

4,permanent magnet generator rotor using patented alternator, together with the special stator design,

2000w function generator for wind turbine / research/ prototype Tech Data:

Model	NE-2000
Rated Power(w)	2000w
Max Power(w)	2500w
Rated Voltage(v)	48v/96V
Rated rotated speed(r/m)	500r/m
Top net weight(kg)	18kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Bearing	HRB or for your order
Shaft Material	stainless steel
Shell Material	aluminium alloy
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃
