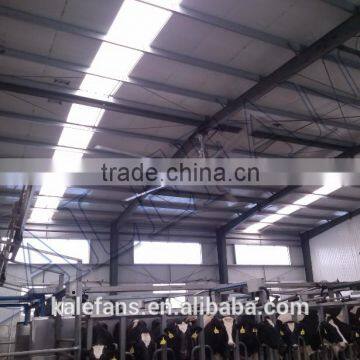

24FT HVLS Large Industrail Ceiling Fan In Livestock Farm

24FT HVLS Large Industrail Ceiling Fan In Livestock Farm

 Brief Introduction of EURUS Series Fan

    EURUS series large energy-saving fan is a super fan with a diameter up to 7.3m, 5 fan blades!
    New Kale Airfoil Blades™, apply aerodynamic principles and the advanced technology.
    With a power of 1.5KW or less, the blades are able to drive a mass of air and make a large  area of natural breeze, leading to dual functions of ventilation and cooling.
    Compared with traditional HAVC and small high-speed air blower, EURUS series has incomparable advantages in use, which solves the problems of ventilation and cooling in such places perfectly.
     Because of the advantage of large coverage, KALE fans are widely used plants, logistics & warehouses, halls etc.

Technical Parameters

Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
4. Packing: export standard crates.
5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.

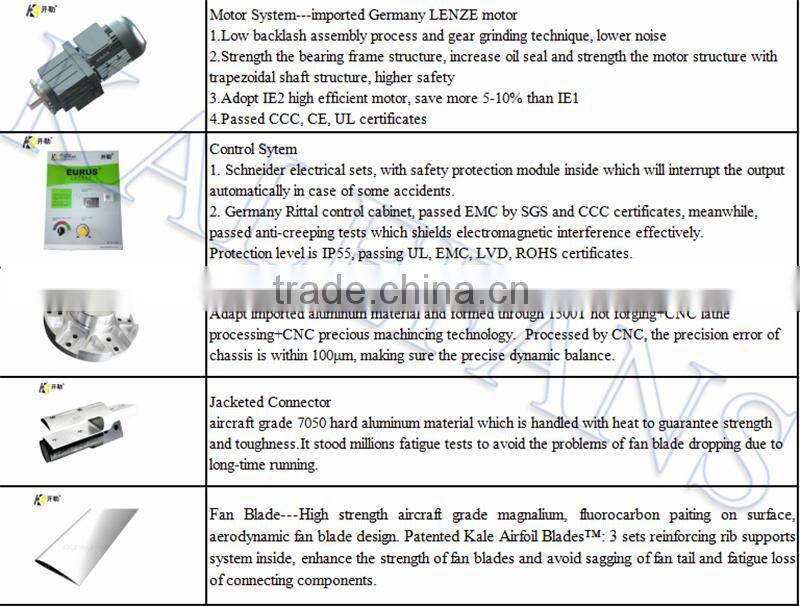

Components

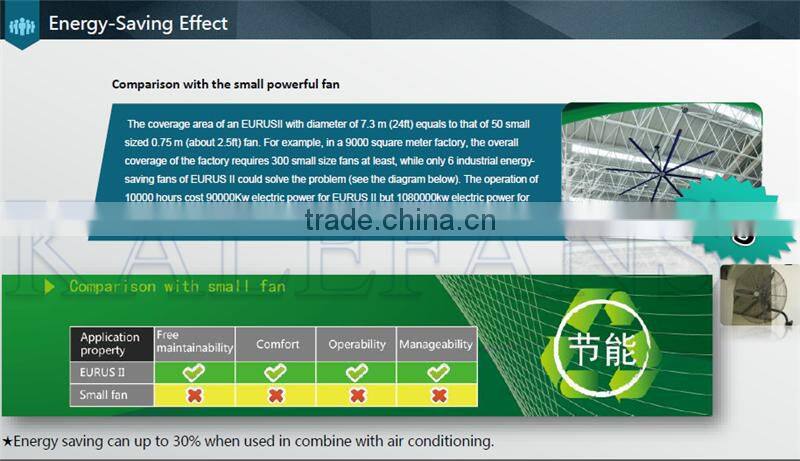

Energy Saving Effect

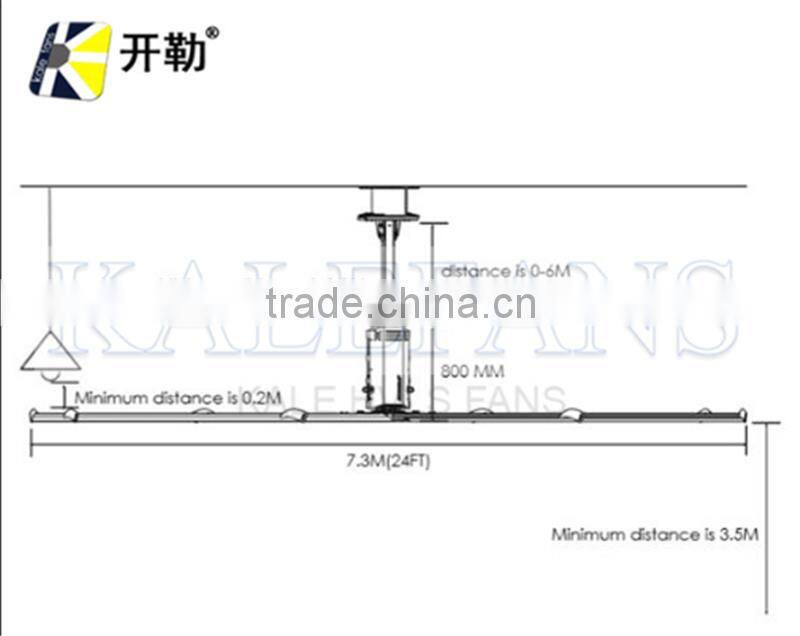

Installation Conditions

Coverage Area

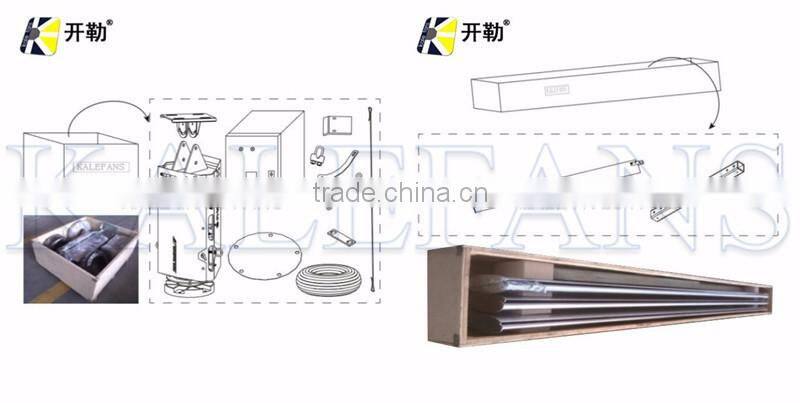

Package Details

One fan is packed into 2 export standard wooden cases, dimensions as below:

Motor case: 950 X 830 X 520mm

Fan blade case: 3700 X 420 X 450mm

Gross weight : 250KG

1. Every details we can concern: place order, manufacture, delivery, you just accept them.

2. 3-year warranty for each fan to guarantee

3. Can customize as your reqiurements

4. Free maintenance for the fan

5. 24-hour per day service

Q: Are you the factory?

A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.

Q Where does your fan use in?

A: Ths fan is widely used in factory, logistics & warehouse, supermarket,  halls etc.

Q: Is it used in electrcity?

A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.

Q: What the price per fan?

A: We will offer you the best price according to the qty and the model.

Q: How long is the delivery time?

A: Normally 3-5 working days.

Q: How long is the warranty?

A: We offer 3-year warranty to guarantee the quality.
