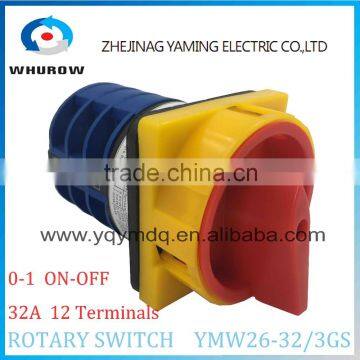

Cam switch YMW26GS-32/3 with padlock Ui 690V Ith 32A 3 poles 2 Positions on-off 12 Terminals selector changeover rotary switch
- NINGBO SHANGHAI YIWU
You May Like
-
Cam switch YMW26-32/3 Ui 690V Ith 32A 3 stages 2 Positions 12 Terminals selector changeover rotary switch sliver contact
-
Yaming Cam switch YMW26-32/4 High quality changeover rotary switch 32A 690V 3 positons 4 stages 16 terminals sliver contact
-
Cam switch YMW26-63/1GS with padlock changeover rotary switch 1 stage 2 positions on-off 4 terminals 63A Ui 690V sliver contacts
-
Cam switch LW6D-1/B054 changeover rotary switch 1 stage 3 positions 1-0-2 6 knots 5A AC380V DC220V sliver contacts
-
Yaming Cam switch LW6D-2/B071 changeover rotary switch 2 poles 3 positions 1-0-2 12 knots 5A AC380V DC220V sliver contacts
-
Yaming Cam switch LW6D-2/B184 changeover rotary switch 2 poles 3 positions 1-0-2 12 knots 5A AC380V DC220V sliver contacts
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YAMING | |
| Model Number | YMW26GS-32/3 | Max. Current | 32A | |
| Max. Voltage | 690V | Mechanical Life | 600000 |
Product Description
Rotary switches LW26 series
Application:
LW26 series changeover switch is used in the circuits of AC 50Hz,rated voltage up to 690V,DC voltage up to 240V,rated current up to 100A,to not frequently switch on/off electrical circuits, transfer and control circuits,also it can directly control small capacity motor or be used for master control or electric meters. The switch is used widely in circuit control,test equipment, switch for motor,master control,welding machine and etc.
Advantages: Small size. Multifunctin, compact structure, high quality material, good insulation, agile operation, reliability, safety, good apperance.
Current: From 5A to 160A.
Working Conditions:
1.Ambient temperature not more than 50℃,the average per 24 hours not exceeds 35℃
2.Lowest temperature not less than -25 ℃
3.The altitude not more tahn 4000m.
4.At highest temprature +50 ℃,the relative humidity not over 50%,at lower temprature,higher humidity is allowed,such as at 20 ℃,90% humidity allowed.It shall be adopt the special treatment against the condensation water.
Classification:
1.According to application, the switch divided into the types of changeover of main circuit,direct control motor,master control and measurement.
2.As per operating mode, it devided into positioned type, self-recover type,positioned self-recover type.
3. According to knots of contact system:The positioned type:1-12 konts (63A only has 8 konts),self-fecover type:1-3 konts,type of direct controling motoer:1-6 konts.
4. According to rotation angle:30°.45°,60°,and 90°.
5. According to figure of panel:square,rectangular,round types.
6. Classify according to opreating mode and combination position of opreating device ON.OFF.
Technical Parameters:
| Type and specification | LW26-10 | LW26-20 | LW26-25 | LW26-32 | LW26-63 | LW26-125 | LW26-160 |
| Rated insulation voltage(V) | 690V | ||||||
| Hot current contract lth(A) | 10 | 20 | 25 | 32 | 63 | 125 | 160 |
| Rated opreating voltage Ue(V) | 220,380,500 | 220,380,500 | 220,380,500 | 220,380,500 | 220,380,500 | 220,380 | 220,380 |
| AC-21A AC-22A (A) | 10 | 20 | 25 | 32 | 63 | 125 | 160 |
| AC-2 3p(KW) | 2, 3.5, 7 | 4, 7.5, 10 | 5.5, 11, 13 | 7.5,15,18.5 | 18.5,30,40 | 30, 45 | 37, 55 |
| AC-3 3p/1p(KW) | 1/0.5,3.5/1,2.5 | 3/2.2,5.5/3,5.5 | 4/3,7.5/3.7,7.5 | 5.5/4.11/5.5,11 | 11/6,18.5/11,18.5 | 15/7.5,30/13 | 22/11,37/18.5 |
| AC-4 3p/1p(KW) | 0.25/0.35,1/1.5,1 | 0.55/0.75,1.5/1.5,1.5 | 1.5/1.1,3/2.2,2.2 | 2.5/1.5,5.5/3,5.5 | 5.5/2.4,7.5/4,7.5 | 6/3,11/5.5 | 10/4,15/7.5 |
| AC-23 3p/1p(KW) | 2.5/1,3.5/2,4.5 | 3.7/2.5,7.5/3.7,7.5 | 5.5/3.11/5.5,11 | 7.5/4,15/7.5,15 | 15/10,30/18.5,45 | 30/15,45/22 | 37/22,75/37 |
| AC-15 (A) | 3,2 | 5,4 | 8,5 | 14,6 | |||
| DC-13 (A) | 1 | 1.5 | 11 | ||||
| Mechanical life | 600000 ops,operation frequency:120ops/hour | ||||||
| Electric life at AC-15 | 200000 ops,operation frequency:300ops/hour | ||||||
| Electric life at DC-13 | 60000 ops,operation frequency:300ops/hour | ||||||
If you want to know more about LW26 series, please contact us.
(The pictures we showed is not all LW26.)
