600w 24v hot sell wind solar hybrid off grid controller

FOB Price

USD $80 - $200 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

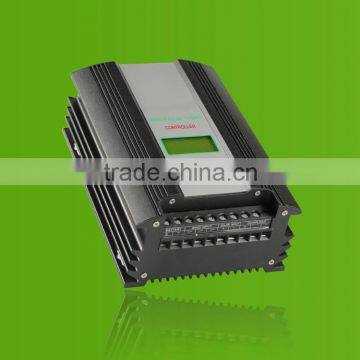

600w 24v hot sell wind solar hybrid off grid controller Pictures:

600w 24v hot sell wind solar hybrid off grid controller Technical Data:

Product Model	NE06-24-N00D
Rated battery voltage	24V
Rated wind turbine input power	600W
Maximum wind turbine input power	900W
Rated solar input power	300W
Dumpload Start Voltage	27V
Charge Shutoff Voltage	29V
Wind Turbine Brake Current	30A
Battery Under Voltage Shutoff	21.6V
Battery Under Voltage Recovery	24V
Input Over Voltage Shutoff	32V
Light Control On Voltage	2V
Light Control Off Voltage	3V
Rated Output Current of Load 1 and Load 2	10A
Load 1 Output Control Mode	Light Control On and Light Control Off
Load 2 Output Control Mode	Light Control On and Time Control 5 Hours Off
Dumpload Control Mode	PWM
Display Mode	LCD
Protection Level	IP53(Indoor)
Quiescent Current	≤20mA
Display Content	Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status
Protection Functions	Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection, Battery over discharge protection, Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection Wind turbine current limiting, Wind turbine automatic brake and manual brake.
Ambient Temperature	-20~+55℃
Ambient Humidity	0~93%, without condensing
Working Altitude	≤4000m
Dimension (L x W x H)	144×152×82mm
Net Weight	1.9kg

600w 24v hot sell wind solar hybrid off grid controller Performance Features:

² Superior military-grade components to ensure the product stability.

² Check and set all operation parameters as requirement from LCD display.

² Voltage limiting and current limiting charge mode ensures battery in the best charging status.

² Two DC Load output, light control, time control, constant output, and multiple output control mode selections.

² PWM stepless dumpload mode, which release the excess power into dump load, making the battery charging in best status.

² Design of high quality aluminum alloy appearance, with small size and good cooling effect.

600w 24v hot sell wind solar hybrid off grid controller Application Fields:

² Stand alone wind/solar hybrid power station.

² Stand alone domestic household wind/solar hybrid power system.

² Mobile Communication base stations, expressway and other non-residential regions.

² Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.

² Government demonstration projects, landscape lighting project, street light project etc.

600w 24v hot sell wind solar hybrid off grid controller System Drawing:
