Home > Products > 2016 Wind Solar Hybrid System > Popular new energy wind solar light
Popular new energy wind solar light
- Shanghai Port Ningbo Port
- T/T Credit Card
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | Naier | |
Model Number | NE-400M | Type | Wind Power Generator |
Product Description

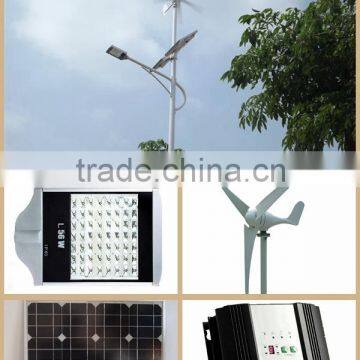

wind solar light includes LED Lamp, wind turbine, solar panel, hybrid controller ,batteries, pole and other accessories. If you are interested in whole system, pls feel free to contact our salesperson to get a whole solution.
Wind Turbine Details:
Introduction
1. Which is using ultra-light composite materials and engineering plastics.
2. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned protection when faced with strong winds.
3. As high efficiency, they can be made hybrids system with solar panel.
Description
1.Simple structure,running stably,power supply for city lamp,monitoring and home.
2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.
3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.
4. Brand New in box
5. CE Certificate
6. ISO9001:2000 Quality Certification
7. Large power, low volume, high efficiency
8. Nylon fiber blades, high efficiency of anti-wind ability,
move mutely and steadily
9. Blades with the ability of automatically stall protection under strong wind
10. 2 years free warranty
Model | NE-400M |
Rated power | 400W |
Maximum power | 480W |
Rated voltage | 12/24V |
Start-up wind speed | 2.5m/s |
Rated wind speed | 10m/s |
Survival wind speed | 65m/s |
Top net weight | 12.0kg |
Wheel diameter | 1.55m |
Number of blades | 3/5 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Automatically adjust windward direction |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO14001,ISO 9001, TUV |
kindly Notice that, this small wind generator has two types of Blades number, one is 3 blades, the other one is 5 blades. In low wind speed situation, 5 Blades wind turbine is easier to start to rotate compared with 3 blades.
WIND STREET LIGHT CONTACT INFO
If you are interested in other wind generators like our M2 series from 400w to 600w, pls click here for a quick look.
If you are interested in big wind generators like our L series from 1kw to 2kw for home use, pls click here for a quick look.
If you are interested in vertical axis wind turbine, pls click here for a quick look.
Solar Wind Steet Light System Projects:
Q1: You are factory or trade company?
A: We are professional wind turbine factory,specialized in designing and manufacturing horizontal and vertical wind turbines more than 6 years. We also have our own workshop,and we also installed the wind turbines outside our company for testing,to ensure all the wind turbines are good before delivery.
Q2: Why buy a wind turbine?
A: A NaiEr wind turbine is a smart investment that will lower your monthly expenses, increase your net worth. At the same time, it will help clean the air, slow climate change, and move us towards the energy independence.
Q3: Which model is suitable for me?
A: Please contact our sales with following points:
1. What appliance do you want to running by the system? How many watts are they and their working time.
2. Your annual wind speed.
3. What kinds of system do you want? On-grid or off-grid.
Q4: The quotation is including all the components?Means the whole system I need?
A: The price list for wind turbine only including generator, blades without other parts. But if you need others components such as controller, inverter and tower, we can help you purchase in Chinese Market.
Q5: What’s the working voltage of your wind turbines?Do I need batteries to store the electricity?
A: Our wind turbines have on-grid and off-grid system. About off-grid system,you need batteries bank for storing,But on-grid system don’t need it,it can connected to your grid directly.
Q6: How height of the tower/pole for wind turbines?And how to install it,especially the foundation?
A: Different wind turbine have different tower.Generally,for our 100W to 2000w wind turbines,we use 6m guyed cable tower.For 3KW,5KW wind turbine have usually use guyed cable tower. More than 10KW wind turbines, we have 12m tower.
Q7: What should I do if I am expecting a terrible storm?
A: The wind turbine is designed for very high winds, but it is always a good idea to shut it down if there is going to be a terrible storm to protect against any flying debris.
Q8: Can I mount it to my roof?
A: Roof and building mount is not recommended. Because of the size and weight of the wind generator, it needs to be mounted on a PE certified tower to ensure the quietest and safest system. Roof mounting will invalidate the warranty.
Q9: Does Wind Turbine installation Easy?
A: Very easy, every customer can doing it by themselves, and we will supply all the components for wind generator installation and very details installation manual.
Q10: Does our wind is enough for a Wind Turbine?
A: As our Wind Turbine can start running at low wind speed 2m/s. So your average annual wind speed is 4-5m/s then you can use it.
