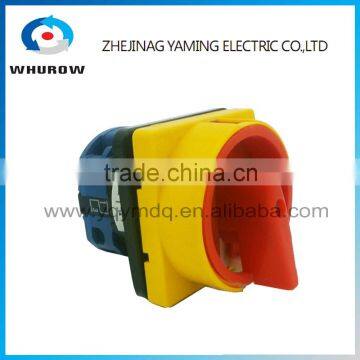

LW26-20/1GS High voltage electrical manual momentary changeover rotary cam switch 1 pole 3 position 20A silver contacts
- NIGNBO YIWU SHANGHAI
- Credit Card
You May Like
-
LW28-6 T-16EXF64D High voltage electrical manual momentary changeover rotary cam switch 6 poles 20A silver contacts
-
Changeover rotary cam switch Power switch LW15-16 1-10 poles High voltage electrical manual momentary 16A silver contacts
-
Changeover rotary cam switch LW26-125/2GS with a lock High voltage automatic electrical two poles 125A sliver point contacts
-
Changeover rotary cam switch Power switch LW5-16A 3 poles High voltage electrical manual momentary silver contacts
-
Changeover rotary cam switch LW6-5/1 High voltage electrical manual momentary 1 pole 5A 10A silver contacts
-
Changeover rotary cam switch LW6-5/3 High voltage electrical manual momentary 3 poles 5A 10A silver contacts
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YAMING | |
| Model Number | LW26 | Max. Current | 20A | |
| Max. Voltage | 690V | Mechanical Life | 600000 |
Product Description
Rotary switches LW26 series
Application:
LW26 series changeover switch is used in the circuits of AC 50Hz,rated voltage up to 690V,DC voltage up to 240V,rated current up to 100A,to not frequently switch on/off electrical circuits, transfer and control circuits,also it can directly control small capacity motor or be used for master control or electric meters. The switch is used widely in circuit control,test equipment, switch for motor,master control,welding machine and etc.
Advantages: Small size. Multifunctin, compact structure, high quality material, good insulation, agile operation, reliability, safety, good apperance.
Current: From 5A to 160A.
Working Conditions:
1.Ambient temperature not more than 50℃,the average per 24 hours not exceeds 35℃
2.Lowest temperature not less than -25 ℃
3.The altitude not more tahn 4000m.
4.At highest temprature +50 ℃,the relative humidity not over 50%,at lower temprature,higher humidity is allowed,such as at 20 ℃,90% humidity allowed.It shall be adopt the special treatment against the condensation water.
Classification:
1.According to application, the switch divided into the types of changeover of main circuit,direct control motor,master control and measurement.
2.As per operating mode, it devided into positioned type, self-recover type,positioned self-recover type.
3. According to knots of contact system:The positioned type:1-12 konts (63A only has 8 konts),self-fecover type:1-3 konts,type of direct controling motoer:1-6 konts.
4. According to rotation angle:30°.45°,60°,and 90°.
5. According to figure of panel:square,rectangular,round types.
6. Classify according to opreating mode and combination position of opreating device ON.OFF.
Technical Parameters:
| Type and specification | LW26-10 | LW26-20 | LW26-25 | LW26-32 | LW26-63 | LW26-125 | LW26-160 |
| Rated insulation voltage(V) | 690V | ||||||
| Hot current contract lth(A) | 10 | 20 | 25 | 32 | 63 | 125 | 160 |
| Rated opreating voltage Ue(V) | 220,380,500 | 220,380,500 | 220,380,500 | 220,380,500 | 220,380,500 | 220,380 | 220,380 |
| AC-21A AC-22A (A) | 10 | 20 | 25 | 32 | 63 | 125 | 160 |
| AC-2 3p(KW) | 2, 3.5, 7 | 4, 7.5, 10 | 5.5, 11, 13 | 7.5,15,18.5 | 18.5,30,40 | 30, 45 | 37, 55 |
| AC-3 3p/1p(KW) | 1/0.5,3.5/1,2.5 | 3/2.2,5.5/3,5.5 | 4/3,7.5/3.7,7.5 | 5.5/4.11/5.5,11 | 11/6,18.5/11,18.5 | 15/7.5,30/13 | 22/11,37/18.5 |
| AC-4 3p/1p(KW) | 0.25/0.35,1/1.5,1 | 0.55/0.75,1.5/1.5,1.5 | 1.5/1.1,3/2.2,2.2 | 2.5/1.5,5.5/3,5.5 | 5.5/2.4,7.5/4,7.5 | 6/3,11/5.5 | 10/4,15/7.5 |
| AC-23 3p/1p(KW) | 2.5/1,3.5/2,4.5 | 3.7/2.5,7.5/3.7,7.5 | 5.5/3.11/5.5,11 | 7.5/4,15/7.5,15 | 15/10,30/18.5,45 | 30/15,45/22 | 37/22,75/37 |
| AC-15 (A) | 3,2 | 5,4 | 8,5 | 14,6 | |||
| DC-13 (A) | 1 | 1.5 | 11 | ||||
| Mechanical life | 600000 ops,operation frequency:120ops/hour | ||||||
| Electric life at AC-15 | 200000 ops,operation frequency:300ops/hour | ||||||
| Electric life at DC-13 | 60000 ops,operation frequency:300ops/hour | ||||||
HERE IS THE DETAILS ABOUT LW26-20/3(20A 3POLES) AS FOLLOW:
If you want to know more about LW26 series, please contact us.
(The pictures we showed is not all LW26.)
