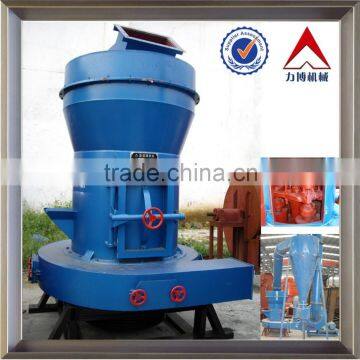

New Type High Quality Raymond Mill Machinery for Sale

Raymond Mill Machinery Introduction
Raymond Mill Machinery is mainly applied to the powder processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc.
It can produce powder from more than 280 kinds of non flammable and non explosive mineral materials with Mohs hardness below 7 and humidity below 6%, such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc. The final size is between 0.2mm—0.044mm.

Working Principle of Raymond Mill Machinery
1.The lump material will be conveyed into the storage bin by the bucket elevator after it is crushed into the required particle size by the jaw crusher.
2.Then electro vibrating feeder will uniformly transfer the material into the grinding chamber of the host machine.
3.The material is up thrown and fed into the space between the grinding roller and grinding ring in the process of synchronous rotation of the shovel and the grinding roller, and forms a cushion material layer.
4.The material on this layer is grinded between the grinding roller and the grinding ring. Thus, the purpose of powder production is achieved.
5.The grinded powder will be carried by the airflow of the fan into the analyzer for classification.
6.The powder with the qualified fineness will enter the large cyclone collector, together with the airflow through the pipes, for classification, and then, will be discharged by the discharging device, as the finished product.
7.The airflow is sucked into the air blower through the air return pipe on the upper part of the large cyclone collector.
8.The unqualified powder will be thrown to the external wall by the airflow and separated from the airflow.
9.The coarse powder will fall into the grinding chamber for regrinding due to its own gravity.
10.The whole airflow system is closed and cyclic, and it flows under the positive and negative pressure circularly.

Raymond Mill Machinery Features
1.Compared with the ball mill, the Raymond Mill Machinery has higher efficiency, lower power consumption, smaller covered area, less investment.
2.The grinding roller compressed on the grinding ring tightly due to the centrifugal force.
3.The output and fineness of the finished product will not be affected when the grinding ring is worn to a certain degree.
4.The grinding roller and the grinding ring have a long replacement period, so it gets rid of the shortcoming that the wear parts of centrifugal mills have a short replacement period.
5.The classifying airflow of the Raymond Mill Machinery flows according to the recycling process as: the fan mill shell cyclone separator the fan.
6.Compared with the high speed centrifugal grinder, there is less powder dust, and the operation room is clean without any pollution.

Main technical parameters Of Raymond Mill Machinery
