Jaw Crusher Parts From Gold Supplier

FOB Price

US$ 3,000 - 5,000 / Set

1 Set(Min. Order)

Port Shanghai Qingdao Tianjin etc
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	ore, quarry, chemical industry, building materials,highway and railway	Motor Type	AC Motor
Power(W)	7.5kw	Capacity(t/h)	1-3m³/h
Place of Origin	Henan, China	Brand Name	Libo
Model Number	PEF150*250	Dimension(LWH)	922745933mm
Weight	700kg	Certification	ISO
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

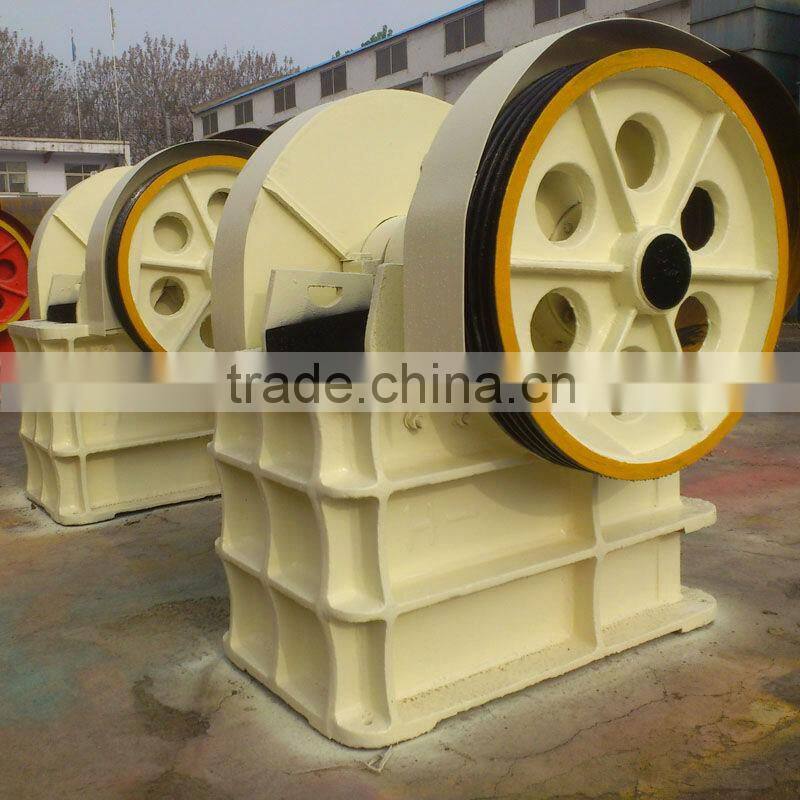

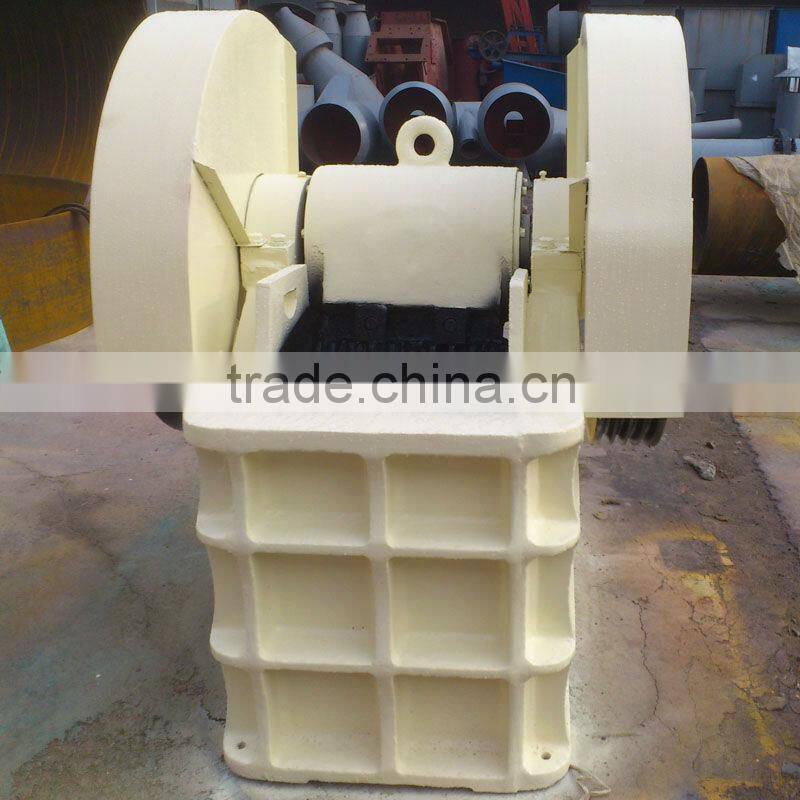

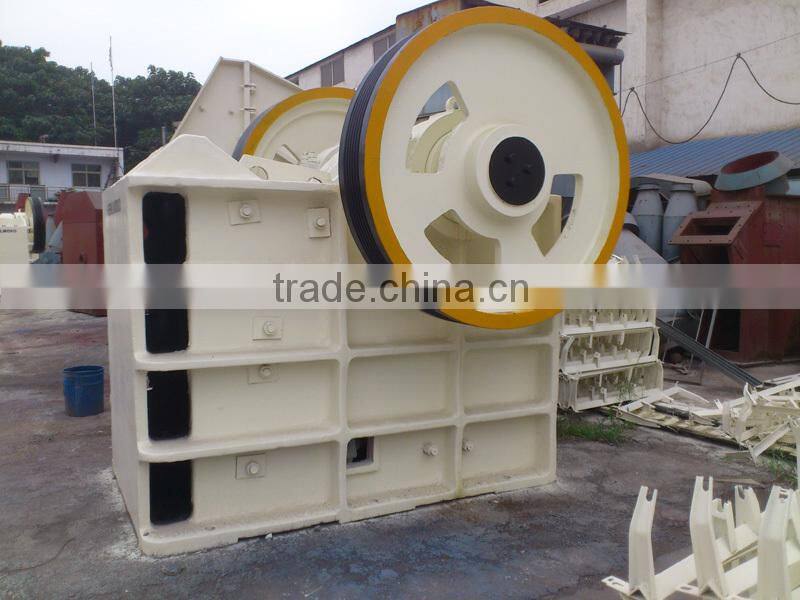

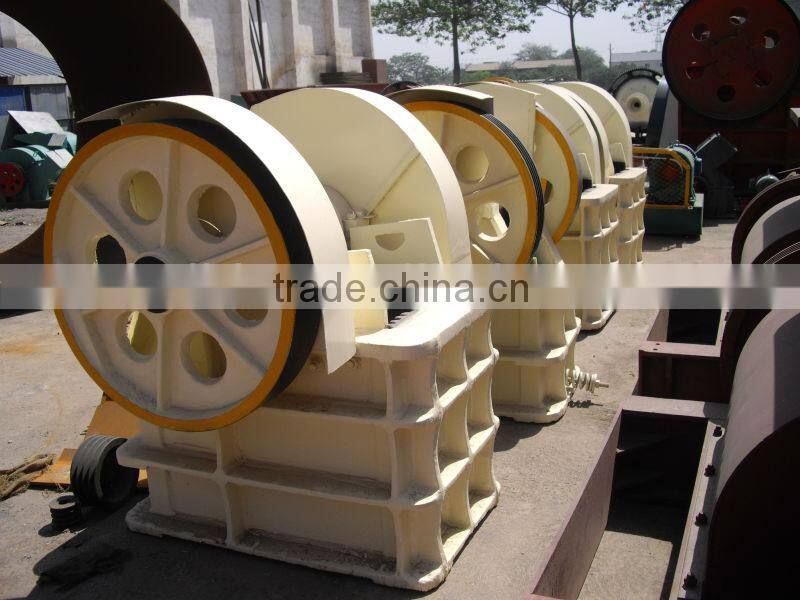

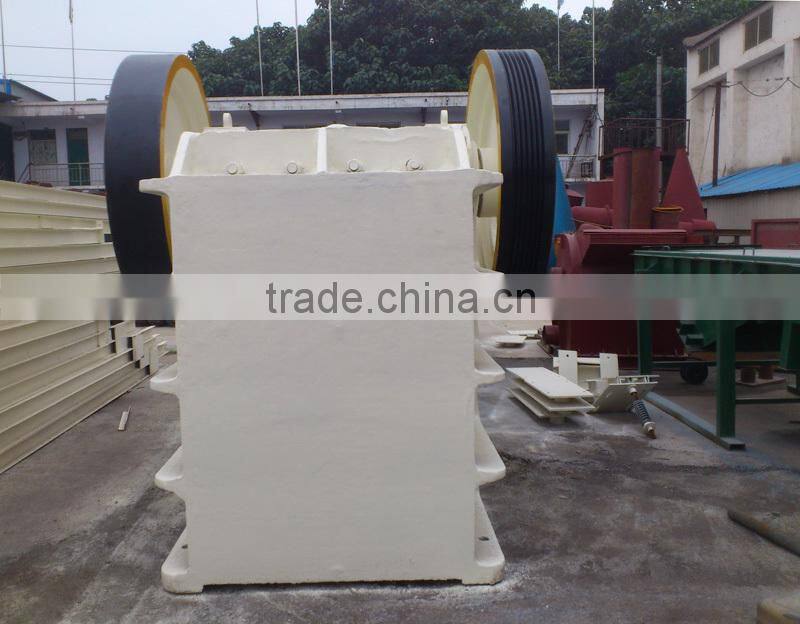

Jaw Crusher

Specifications

1. 11-year factory, 7-year gold supplier
2. Best price,BV
3. Save 15~30% energy
4. Full service from pre-sales and after-sales support

Jaw Crusher Parts from Gold Supplier

Product Description

Introduction of Jaw Crusher
Jaw Crusher is the one of the most popular stone-crushing equipments in the world, Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 350Mpa. Our design and production are of high position both at home and abroad.

Jaw Crusher can be used as the primary crusher to the medium size crushing of various ores and large-size materials , with the anti-crushing pressure of less than 350Mpa.And the Jaw Crusher can be divided into two kinds such as coarse and fine crushing .And this series of Jaw Crusher have complete specifications with the feeding particle size of 125mm~750mm.

Working Environment of Jaw Crusher
The crushing process that the large stone become small stone is called the primary crusher .And the most common and solid crusher is the Jaw Crusher . During the feeding process of the Jaw Crusher ,the materials can enter the crushing cavity with the jaw gear from the top entrance .And the jaw gear will push forward the materials to the cavity with the strong force to crush them to some more small stones .And it is a eccentric shaft to support the movement of the jaw gear ,and this shaft have supported the whole machine frame .And the eccentric movement is caused by the flywheel fixed on the both end of the shaft .The flywheel and eccentric supporting bear often adopt the spherical roller bearing so that the working environment of the bearing is more hard .And the bearing must bear the huge impact overload ,erosion water pollution and the high temperature .However ,the Small Jaw Crusher can also ensure the reliable work ,which have also become the key link of the production effect. Though the hard working environment, the Jaw Crusher can still proceed the very reliable function, which is the key link of the production efficiency.

Jaw Crusher Features
1.Deep crushing cavity and no dead time control have improved the feeding capability and the production output.
2.Large crushing ratio and even particle size.
3.The lubrication system more secure and reliable, the spare parts can be more changed, and low maintenance working.
4.Simple structure and reliable function , low operation cost
5.Energy-saving: the single machine can make the energy-saving about 20%~35% and the system energy-saving over one time.
6.Large range of the discharge opening range can satisfy the various requirements of the customers
7.Low noise and dust pollution.

Working principle of Jaw Crusher

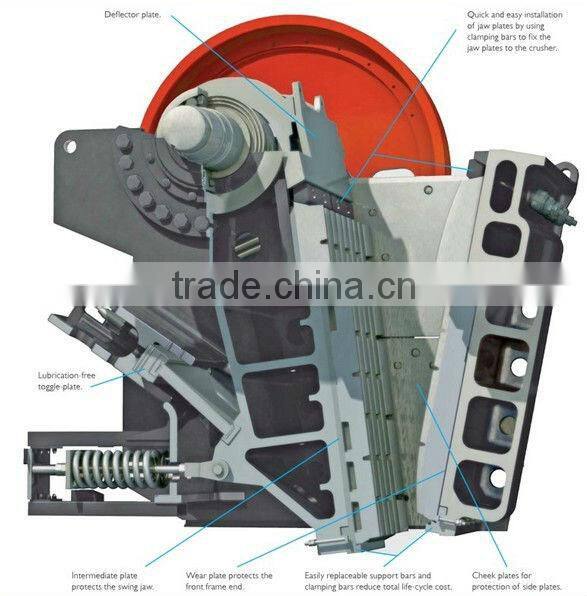

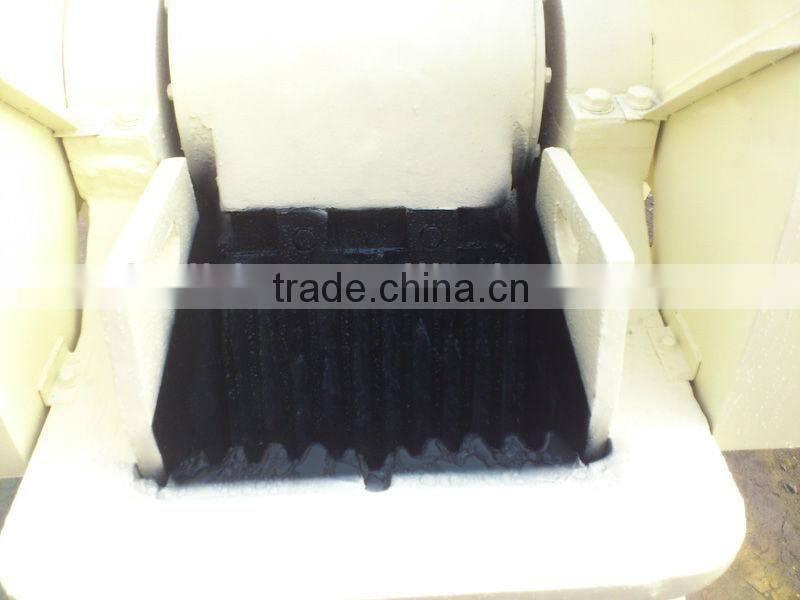

This Jaw Crusher uses motor as its power, through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Main Technical Parameter of Jaw Crusher

type	Feed opening size(mm)	Max. feed size(mm)	Discharge adjustment range(mm)	Capacity(m³/h)	Motor(kw)	Rotating speed of mainshaft(r/min)	Weight (kg)	Overall dimension(LWH)(mm)
PEF150*250	150*250	125	10-40	1-3	7.5	285	700	922745933
PEF200*300	200*300	165	20-70	2-8	11	265	800	105611001200
PEF250*400	250*400	210	20-80	5-20	18.5	310	3000	110811421392
PEF400*600	400*600	340	40-90	10-40	30	275	7200	170017321392
PEF350*750	350*750	290	30-55	20-50	37	300	8900	190018061808
PEF500*750	500*750	425	50-100	34-68	55	275	11320	205018602145
PEF600*900	600*900	480	75-200	40-120	75	255	17600	279221682250
PEF750*1060	750*1060	630	80-200	80-160	90	250	30530	418025603070
PEF900*1200	900*1200	750	100-200	110-200	110	250	50000	520029003500
PEF1000*1200	1000*1200	850	195-265	315-500	110	200	55000	348028763330
PEF1200*1500	1200*1500	1020	150-300	400-800	160	180	100000	420033003500
PEX150*750	150*750	125	10-40	5-15	15	300	3600	122014801180
PEX250*1000	250*1000	210	15-55	10-32	30	300	7350	158019921380
PEX250*1200	250*1200	210	15-60	12-38	37	300	8700	173021921380
PEX300*1300	300*1300	250	20-90	16-65	55	300	11600	193024001747

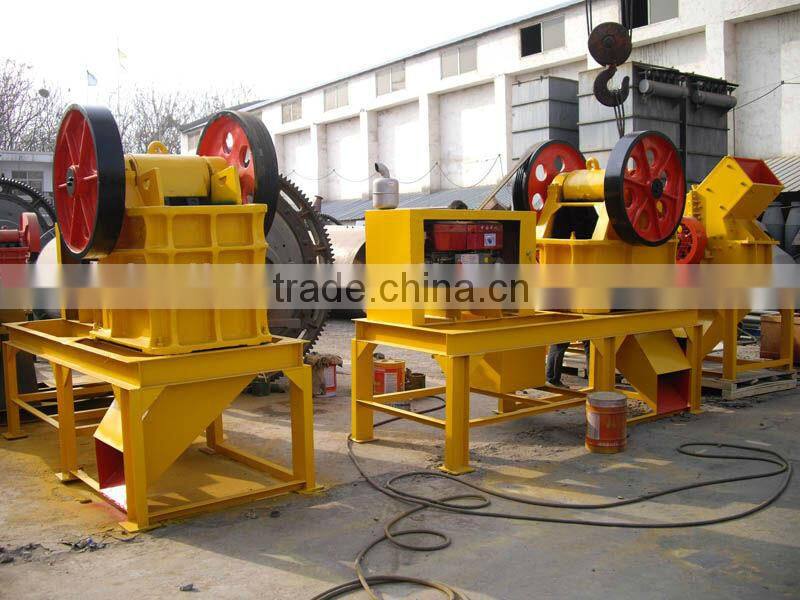

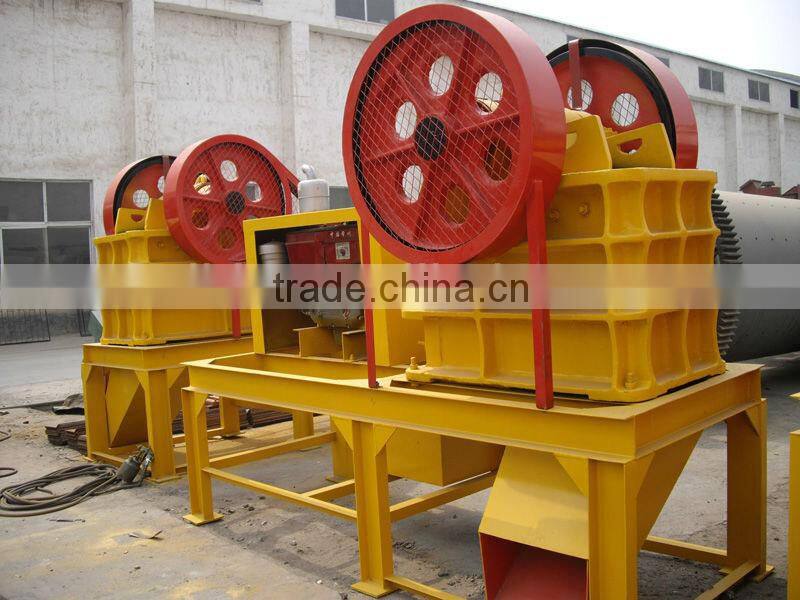

Diesel Jaw Crusher

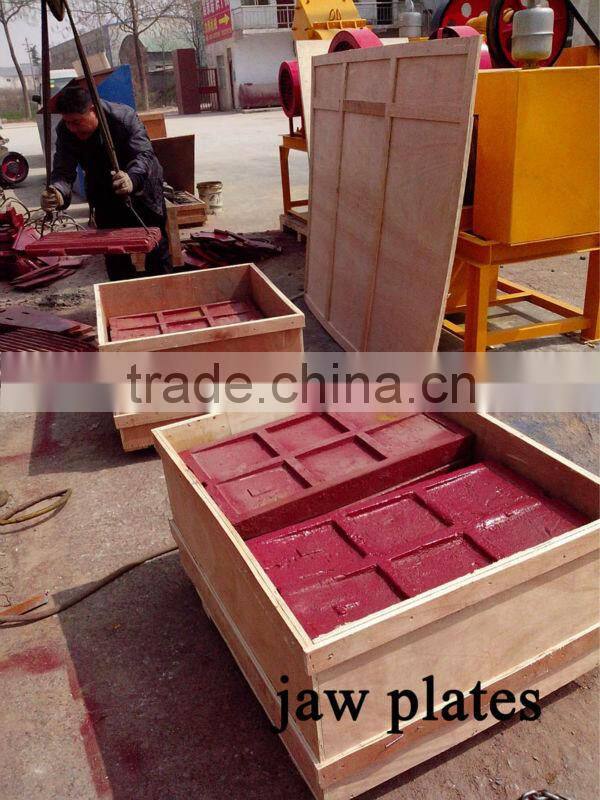

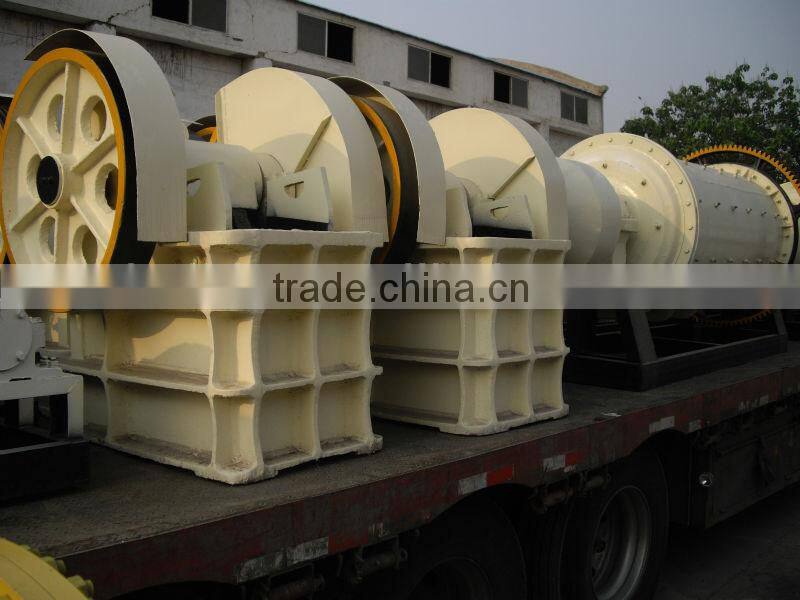

Packaging & Shipping

Our Services

Henan Libo Smallng Machinery Co.,Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.

Quality:

Henan Libo Smallng Machinery Co.,Ltd. enforces the strictest in quality standard products , ensuring the highest level of operation and service from product design and manufacture to customer delivery and after sales services.

FAQ

Jaw Crusher Price And Manufacturers?

Jaw Crusher in different areas has the different price and the price of different Jaw Crusher models is also different. Libo is a professional manufacturer of smallng equipment, we have different types of crusher machines and the price is very reasonable.There is always a right for you.
