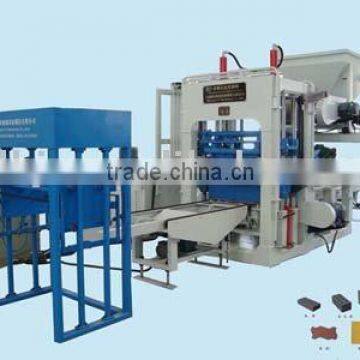

Simple Concrete Block Making Production Line
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Best-selling Hydraulic Block machine
-
Semi-Automatic Concrete Block Making Production Line
-
Hollow block machine,automatic block machine,paver block machine
-
block machinery,brick machinery,paver machinery
-
brick molding machine,curbstone making machine ,concrete kerbstone making machine
-
hollow block machinery,cement block machine ,brick machinery
Product Details
| Type | Hollow Block Making Machine | Brick Raw Material | Concrete | |
| Processing | Brick Production Line | Method | Hydraulic Pressure | |
| Automatic | Yes | Capacity | 10000-16000pcs for 8inch per 8hours | |
| Place of Origin | Shanghai, China | Brand Name | U7 | |
| Model Number | Simple Production Line | Power | 18-27KW |
Product Description
Specifications
Simple Production Line, Fully-Auto Main Machine, One set Mold and Spare parts Free for you, International Approval.
Simple Concrete Blocks Production Line, brick machinery
Stage 1. raw material batching Manual
-handle trolly (2 sets), Carry sand, scree, cement etc. to mixer
Stage 2. concrete mixing Mechanical
-concrete mixer Prepare concrete for block making machine
Stage 3. block making Auto
-concrete belt conveyer Carry concrete to storage hopper
-concrete storage hopper Store concrete for block making machine
-7U-QT/M block making machine Produce concrete blocks
-hydraulic station provide strong oil pressure power for actions of block making machine
-pallet feeder Provide pallet to block making machine
-block conveyer Carry fresh blocks&pallet out from block making machine
Stage 4. block curing Manual
-wheel trolly (about 3 sets) Carry blocks&pallet to curing area, then to block storage area
Stage 5. block cubing Manual
Stage 6. pallet returning Manual
Control System 1 PLC
It control the working condition of concrete belt conveyor, concrete storage hopper, hydraulic station, block making machine, block conveyer, movable stacker, and pallet feeder.
Curing Way Natural Curing I
2 days at curing area, be kept moist by sprinkling with water, then be moved outside to block storage area for at least 25 days before selling
Workers Needed 12
2 for aggregates batching and put aggregates into hoisting hopper of mixer; 1 for mixer, water adding in, concrete discharging; 1 for block making, operating the control cabinet; 4 for moving block&pallets to trollies and bringing them to curing area; 3 for moving cured blocks to blockstorage area, cubing blocks and collecting pallets there; 1 for carrying pallets to block making machine.
Comparing with other production lines, this production line needs the lowest equipment investment, with machines bought from our company, customer can produce blocks and doesnt need to prepare any other equipments. The installation, commission and personnel training needs about 2 weeks.
All PLC controlling equipments and the mixer, and the 2 handle trollies and 3 wheel trollies will be provided by our company.
Main Data:
Item | Machine Type | ||||
QM5 | QT6 | QT8 | 7U-QT9 | ||
Total Power | 69.5kw | 72.5kw | 86.35kw | 96kw | |
Total Factory Area | 5700 m2 | 5700 m2 | 6000 m2 | 6500 m2 | |
Including raw material storage area, workshop of equipments, curing area, block storage area, and living area for workers | |||||
Output | 390*190*190mm 400*200*200mm 8 inch block | 12,000 pcs/shift 50,700 m3/year (300 days) | 11,500 pcs/shift 48,600 m3/year (300 days) | 14,400 pcs/shift 60,800 m3/year (300 days) | 17,200 pcs/shift 72,600 m3/year (300 days) |
240*115*90mm 8-hole block | 28,800 pcs/shift 21,500 m3/year | 28,800 pcs/shift 21,500 m3/year | 38,600 pcs/shift 28,800 m3/year | 48,000 pcs/shift 35,900 m3/year | |
