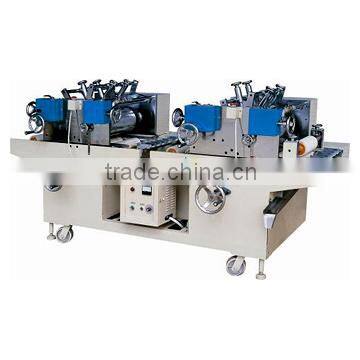

Servo UV printer machine
US$ 2,000 - 20,000
/ Set
1 Set(Min. Order)
- China
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | TISAN | Model Number | 760#,1100#,1420# | |
| Usage | Other, printing some patterns | Automatic Grade | Automatic | |
| Voltage | 380V | Dimensions(L*W*H) | 3800*1620*1500,3800*1960*1500,3800*2280*1500 | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This equipment adopts chromatic printing with servomotor that the printing is precise.The opelration panel is man-machine1,This machine adopts chromatic printing with servomotor that the printing is precise.The operation panel is man-machine interface with touch screen and PLC programming.
2,The printing machine adopts the electric intaglio printing principle that it can directly print the pattern on the work piece or through printing rubber roller.
3,It can print patterns on the surface of flat plates,metal plates and PVC etc.It is mainly used in wood and plastic-wood products.
4,The pattern can be printed according to the drawing provided by the customers with a similarity 98.8%.
5,The servomotor controls the speed that it has quick response,high precision and good sychronism.
| Model | TS-760# | TS-1100# | TS-1420# |
| Frontage working width | 650MM | 1000MM | 1320MM |
| Working height | 2-80MM | 2-80MM | 2-80MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Servo power | 1.0KW | 1.5KW | 1.5KW |
| Paint thickness | 0.003-0.2MM | 0.003-0.2MM | 0.003-0.2MM |
| Paint container capacity | 20L | 20L | 20L |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Electric supply | 220V/380V50HZ | 220V/380V50HZ | 220V/380V50HZ |
| Machine dimension | 3800*1620*1500 | 3800*1960*1500 | 3800*2280*1500 |
| Machine weight | 2.6T | 2.9T | 3.2T |
Contact Us
- Foshan Taishang Machinery Co., Ltd.
- Contact nameHua Yang Chat Now
- Phone86-757-87263301
- AddressLeping Industry Area,Sanshui District, Foshan, Guangdong
