Home > Products > Coating Machines > UV curtain coating machine

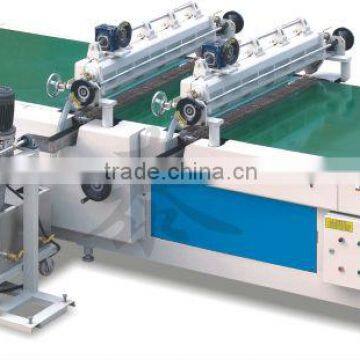

UV curtain coating machine
US$ 500 - 5,000
/ Set
1 Set(Min. Order)
- China
- Credit Card
You May Like
Product Details
| Condition | New | Plate Type | Screen Printer | |
| Place of Origin | Guangdong, China | Brand Name | TAISAN | |
| Model Number | 600#1100#/1420# | Usage | Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, Other, Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, coating top paint | |
| Automatic Grade | Automatic | Voltage | 380V | |
| Gross Power | 10kw | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This equipment is mainly applicable for top coating.It can achieve mirror effect and there will be no peeling or pulling grains.1,This equipment is mainly applicable for top coating.It can achieve mirror effect and there will be no peeling or pulling grains etc;
2,It adopts imported original cutting molds.The adjustment of coating thickness is very precise;
3,This equipment is equipped with recycling device that it can recycle and reduce waste;
4,The conveyor belts are made of high quality polyesters,which are resistant to acid and alkali and easy to clean;
5,The speed of conveying device is controlled by AC motor frequency conversion that it can implement stepless frequency speed control;
6,This machine is suitable for all kinds of paints.
| Model | TS-600# | TS-1000# | TS-1300# |
| Working width | 600MM | 1000MM | 1300MM |
| Working height | 2-80MM | 2-80MM | 2-80MM |
| Feeding speed | 10-100M/MIN | 10-100M/MIN | 10-100M/MIN |
| Feeding power | 1.5KW | 1.5KW | 2.2KW |
| Galvanothermy power | 3KW | 5KW | 5KW |
| Pump power | 0.75KW | 0.75KW | 0.75KW |
| Paint type | UV/PU/NC/PE | UV/PU/NC/PE | UV/PU/NC/PE |
| Paint dosage | 40-180G/M2 | 40-180G/M2 | 40-180G/M2 |
| Paint container capacity | 240L | 240L | 240L |
| Electric supply | 380V50HZ | 380V50HZ | 380V50HZ |
| Machine dimension | 3000*1750*1300 | 3000*2050*1300 | 3000*2450*1300 |
| Machine weight | 1.1T | 1.3T | 1.5T |
