Home > Products > Brush sanding machine > Board surface treatment Pulling machine for makeing wood grain hand feeling with 6 group /4 group

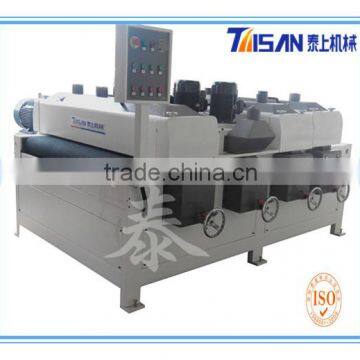

Board surface treatment Pulling machine for makeing wood grain hand feeling with 6 group /4 group

FOB Price

US$ 17,000 - 29,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	Taisan	Model Number	TS-1320
After-sales Service Provided	Engineers available to service machinery overseas

Pulling machine/Drawbench

Technical Parameters

l 1 head: Using 200 Steel wire diameter Φ0.4mm/Be non motor power:7.5KW

l 2-3 head:Using 200 wire wheel brush diameter Φ0.35mm/Be non motor power :2.2KW*6

l 4 head:Using 200 Steel wire diameter Φ0.3mm/Be non motor power:7.5KW

l 5 head:Using 200 Grind wire diameter Φ1.2mm/Be non motor power :5.5KW

l 6 head:Using 200 Grind wire diameter Φ1.0mm/Be non motor power :5.5KW

l Convey:Using Be non motor 3KW

l Lifting:Using button to lift.lifting Motor:0.55KW

l Attention:Please don’t adjust the height too low.To avoid the belt damage.
