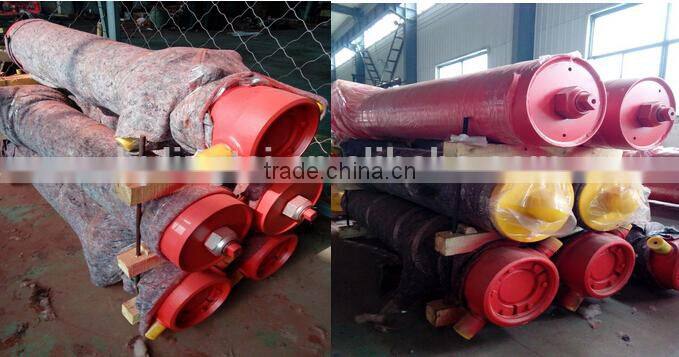

332KG telescopic hydraulic cylinder/lifting cylinder for dump truk

Hydraulic cylinder:

We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:

• diameter of bore & rod

• stroke

• mounting style

• mounting distance

• working pressure

• ports

• seals

• special modifications

         4TG-E160*4280ZZ

1.Basic Information:

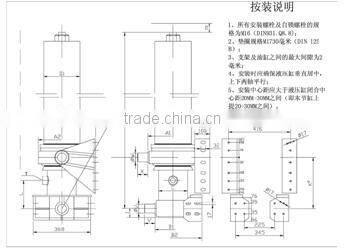

2. Installment Introduction:

1.The specifications for all the install screw and self-locking is M16(DIN931.Q8.8)

2.The specifications for grommet is M1730MM.

3.The biggest gap between support and cylinder is 2mm.

4.Make sure the hydraulic cylinder vertically ,up and down two parallel shafts when installed.

5.The installation should be greater than the center distance between the closed hydraulic cylinder center distance 20mm-30mm.

3.Four advantages for hydraulic cylinder:

1.More secure

With excellent structure design and the application of new materials, to withstand the harsh conditions of sustained and stable

work not disarticulating. To ensure the safety of drivers and vehicles, for the user to create the most valuable safety assurance!

2.Faster unloding speed.

With excellet structure design,promote unloding speeed.

3.The lifting frequency higher

Suitable for all-weather shuttle high frequency operation, stable performance, low failure rate,

increase the number of transport, reduce the parking time!

4.A stronger ability to adapt to the environment

Using innovative patented technology and the application of new material seal can adapt

to -40~110 DEG C temperature range, high temperature and low temperature operation can ensure the excellent performance!

4.Application:

Our company:

Our workshop&equipment:

Materials:

Cylinder flowing:

Every cylinder will cannot be delivered until passed the test.

Our certificte:

    Welcome to visit our factory,  we are always here for you !

Pls feel free to contact with us if you have any questions!
