Pressure Control for Water Pump JH-2B Electric Water Pump Control
- NINGBO/SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Pressure Switch JH-2B Water Pump Pressure Switch Zhejiang
-
Automatic Pump Control for Water Pumps JH-2 Press Control Ip65
-
Electronic Water Pump Pressure Switch JH-2 Press Control Ip65
-
JH-2A Pressure Control Switch Air Compressor Pressure Switch
-
Electrical Water Float Valve JH-2 Press Control Ip65
-
Water Tank Level Controller JH-2B Pressure Controller Made in China
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JIAHONG | |
| Model Number | JH-2B(pressure control) | Max. Current | 20A | |
| Max. Voltage | 240V | Max. Working Pressure | 20bar |
Product Description

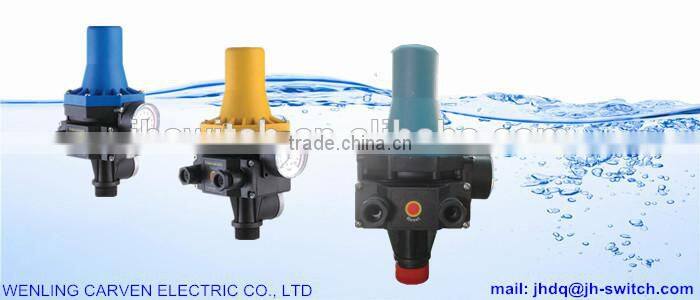

Pressure Control JH-2B
Description:
The Pressure Controls are completely silent and are designed to provide an automatic supply of clean water to one or two dwellings.
The Pressure Controller orders the automatic start and stop of the water pump when opening or closing any tap or valve of the system. The controller can keep constant pressure and water flow in the system as long as any tap in the system is open during the pumps operation.
It allows the pump to run at a constant flow. The controller stops rapid cycling of your pump unit, eliminating water fluctuating through your home.

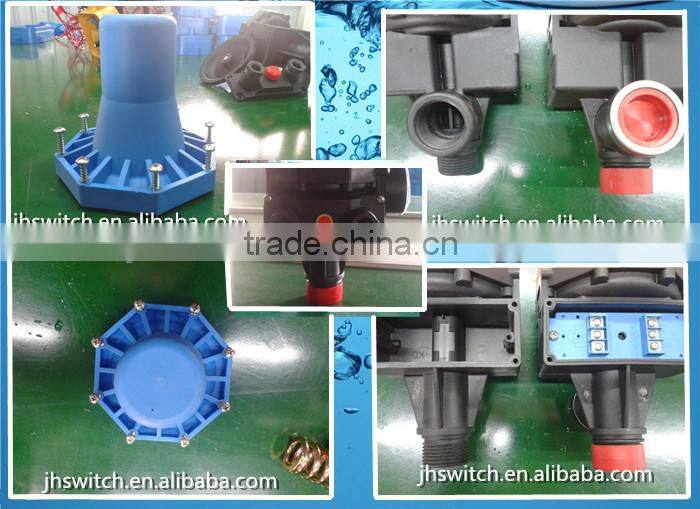

-Inlet: R1’’(male)
-Outlet: G1’’(female)
-Special non return valve to avoid surges
-Pressure gauge
-Manual start switch (Restart)
| Rated Voltage: | 110V–240V |
| Frequency: | 50/60Hz |
| Max. Current: | 10A; 20A |
| Max. Power: | 1.1KW; 1.5KW; 2.2KW |
| Starting Pressure: | 1.5bar; 2.2bar |
| Max. Pressure: | 10bar |
| Joint Screw: | R1" |
| Protection Grade: | IP65 |
| Max. Operating Temperature: | 60 |
| Cable Specifications: | 7.5-9mm |
♦ Optional:
Color: | blue; red; yellow; black |
Starting Pressure: | 1.5bar; 2.2bar |
Max. power: | 1.1KW; 1.5KW; 2.2KW |
Cable Specifications: | 7.5-9mm |
1) The assembly does not shut down. 2) The motor operates but provides no flow.
3) The pressure is not sufficient. 4) The assembly is constantly stopping and starting.
5) The assembly does not start.
1 | 2 | 3 | 4 | 5 | Causes | Solutions |
| X |
|
|
| Closed gate valve | Open valve |
X |
|
| X |
| Tap, or cistern leak | Repair leak |
|
|
|
| X | No water | Wait till water recovered and press red button |
|
|
|
| X | Pump blocked | Call service engineer |
|
| X |
|
| Total head height | Check geometric height plus loss of head |
X | X | X |
|
| Air entering suction channel | Carefully seal all joints and connectors |
|
|
|
| X | No power | Check fuses |
X |
| X |
|
| Leak in discharge pipework | Repair leak |
|
|
|
| X | The static head is greater than the assembly start pressure | Check start–up setting is correct |
Wenling Carven Electric Co., Ltd is a professional manufacturer of automatic pressure controls. The factory is located in Wenling, Zhejiang province, with convenient transportation and favorable environment. We are devoting ourselves to development, production and sales for the professional pressure controls. There are rich production experience and development capabilities for our factory. Based on the preferential price and high quality, our products have received the high praise from the general customers. We have “quality-oriented, customer supreme, credibility first” for the purpose, sticking to the principle of mutual and win-win cooperation set each other. We are looking forward to establishing business relationship with customers all over the world. Welcome to inquire and discuss cooperation.
