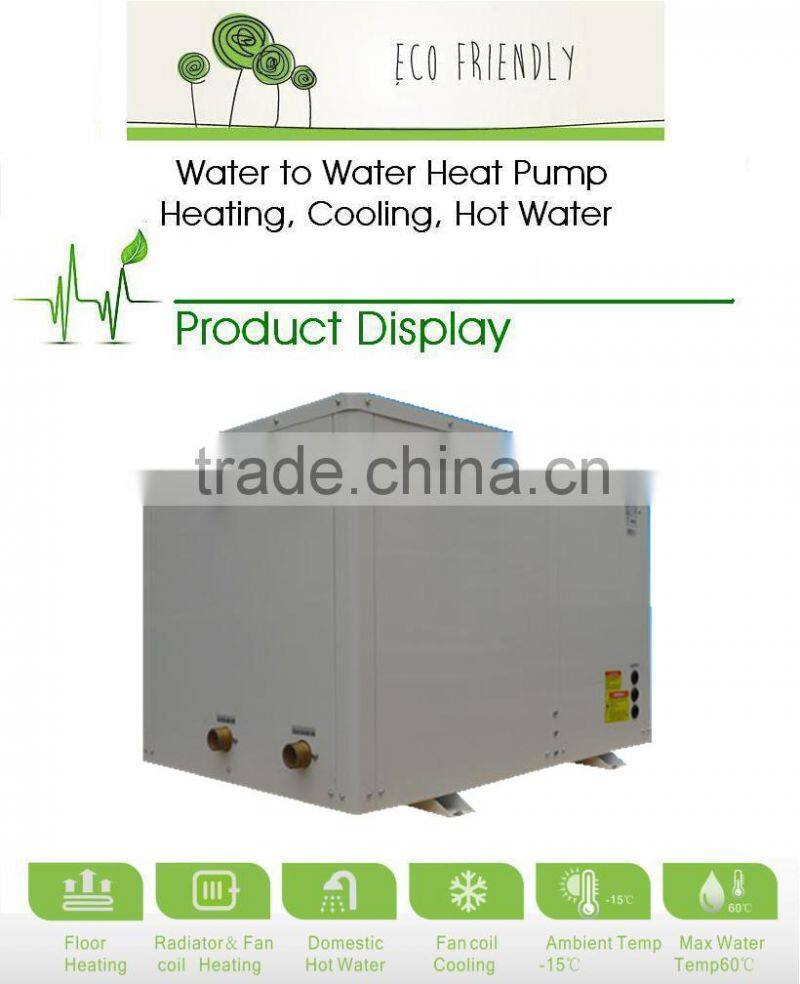

Macon Geothermal Underfloor Heating System

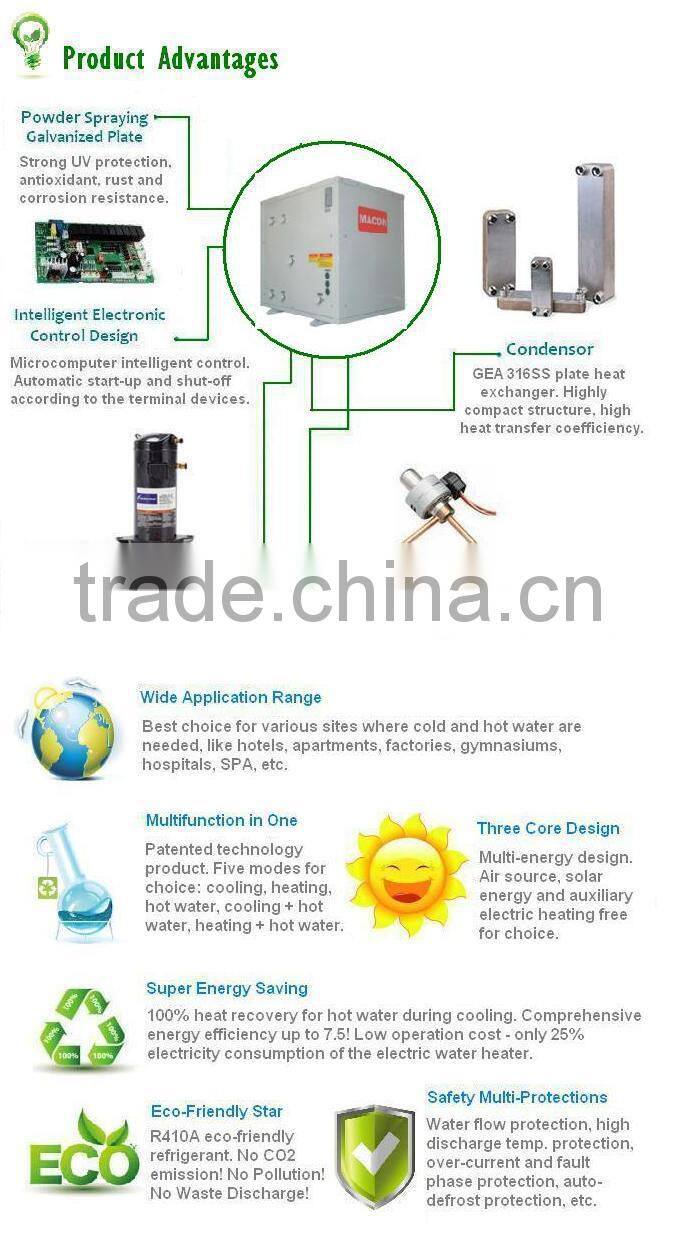

Wide application

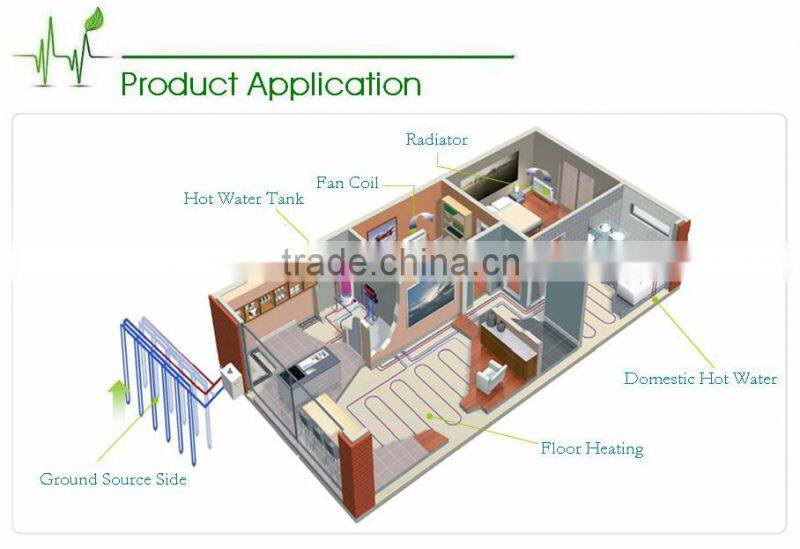

Apply to household, commercial and industrial air-conditioning , floor heating for the room , domestic hot water and comprehensive energy demand application site of SPA,the best choice for public places hot and cold applications demand

Patent product

multi-function patent with five modes : air heating, air cooling, domestic hot water, air heating &domestic hot water at the same time, air cooling+ domestic hot water at the same time.

High efficiency and energy saving

Using energy efficient scroll compressors and 2 plate heat exchanger to improve energy efficiency..Comprehensive energy consumption is only 75% of the solar energy water heater,25% of electric water heater. When it is cooling + hot water, the COP will be more than 7.5.

Three-core design

Heat pump, electric auxiliary heat and solar heater integrated together (optional), super energy, which can meet all-weather hot water supply

The high quality components

Using high efficient scroll compressor, plate heat exchanger, high efficient shell and tube heat exchanger, high efficient spiral casing heat exchanger, built-in WEILO water pump (optional), good performance dot matrix controller.

The flexible installation

Unit and water tank installation occupy small area , no cold media pipe connection, just conduit connections, flexible length, installation is simple, reliable, compact appearance.

ntegrated design, multiple protections. and reliable

Integration design, system sealed welding completely,built-in Multiple protections.such as water flow protection, compressor discharge temperature production, system refrigement high –low pressure protection , compressor overcurrent protection, power supply phase sequence protection,

Environmental Protection

Using R410 A refrigerants , CO2, zero emissions, no pollution, no waste gas, no waste discharge and green environmental protection

simplicity of operator

Using a touch screen, dot matrix LCD display control, rolling language menu, easy to operate. Parametric design, display and monitor the unit operational status

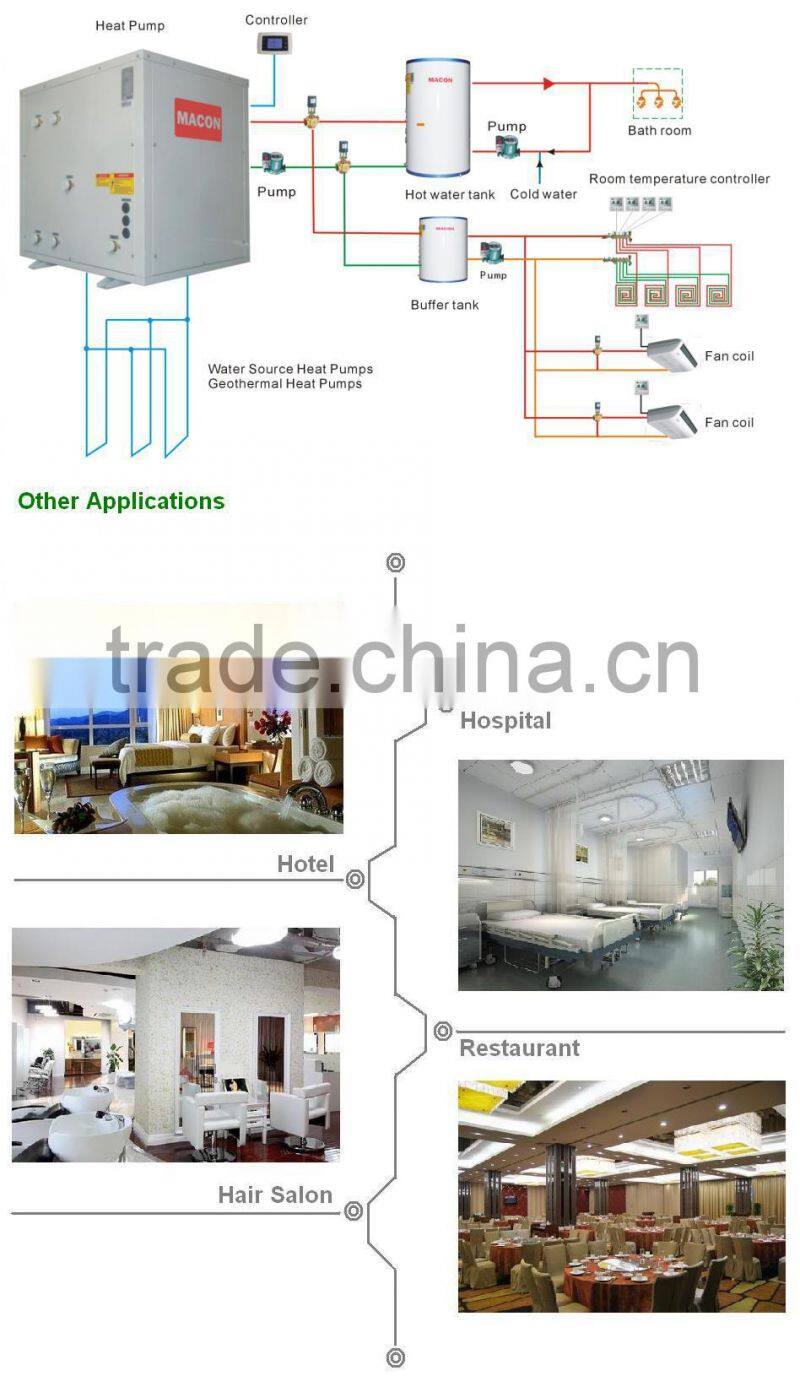

The unit and the terminal equipment on-line control

The main machine automatically open when any terminal equipment is turned on; the main machine automatically shut down when all the terminal equipment is turned off.

Quiet running

Using efficient, low-noise rotary, closed scroll compressors and low-noise fan, ensure quiet running.

Working environment

EVI design , the ground source side use the anti-freezen fluid, meet the low temperature cold areas requestment, all-weather work reliable.

Optional:

Stainless steel case for option

additional water storage tank for option

LCD or LED or Dot-matrix touch screen wire controller for option

Standard Export Package    Keep The Product In Safety

For LCL Order: Interior Plastic Films + Plywood Case

For Container Order: Interior Plastic Films + Cartons

Notes:

For VIP service, we have project engineers who can calculate and design the heat pump system for your application.

TIPS of information required for model selection:

1. Function needed: heating? cooling? hot water?

2. What's the total area for heating/cooling? What's the height of the space?

3. Way of heating: floor heating? fan coil heating?

4. Hot water volume: how many liters needed? Or how many people there?

Our products are highly qualified by international standards. We gain various certifications such as CE, RoHS, EN14511 for European market, SAA, Water Mark, C-Tick for Australian market, ETL for North American market, etc.
