Air Source All in One Heat Pump With Tank Inside, for Domestic Hot Water
- Shunde or Guangzhou
- T/T
You May Like
-
Air Source All In One Heat Pump Water Heater (with Extra Solar Coil)
-
Air Source All in One Heat Pump, Domestic Hot Water Heat Pump
-
Air Source Domestic Hot Water Heat Pump R410A, CE, Rohs
-
Macon Geothermal Underfloor Heating System
-
High Performance Stainless Steel Water to Water Heat Pump Water Source Heat Pump
-
High Efficient Air to Water EVI Heat Pump for Low Ambeint Temperature Area (low to -25C) Quality Choice
Product Details
| Type | Air Source Heat Pump | Installation | Freestanding | |
| Storage / Tankless | Storage | Housing Material | Stainless Steel | |
| Use | Bathroom | Certification | CE, EMC, Other, CE, EMC, CE, EMC, RoHS, CCC, CE, EMC, RoHS, CCC | |
| Place of Origin | Guangdong, China | Brand Name | MACON | |
| Model Number | MAHRW***ZBA |
Product Description
Specifications

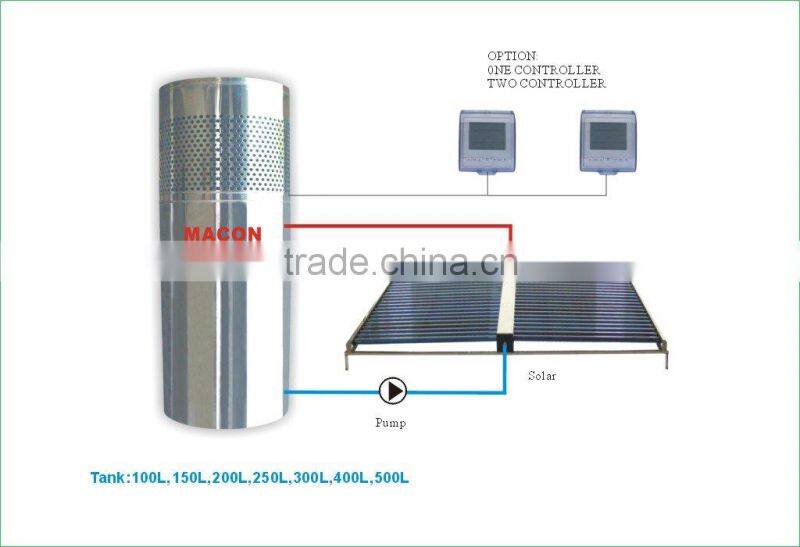

Air source all in one heat pump with tank inside1.external coil
2.Stainless steel shell
3.Inside tank:stainless/enamel
Air source all in one heat pump, domestic hot water heat pump
Parameters
| Model | MAHRW(S) | 010ZAB/P-200 | 010ZAB/P-250 | 015ZAB/P-200 | |
| Application Nuber | number | 2-6 | 2-7 | 2-6 | |
| Water Volume | L | 200 | 250 | 200 | |
| Rated Output Water | L/h | 80 | 80 | 105 | |
| *Solar Specification | φ58×1800×20 | φ58×1800×25 | φ58×1800×20 | ||
| *The Specification Of Solar Coil | m | φ22×20 | φ22×20 | φ22×20 | |
| Rated Heating Capacity | kW | 3.7 | 3.7 | 4.8 | |
| BTU/h | 12700 | 12700 | 16500 | ||
| Rated Input Power | kW | 1.0 | 1.0 | 1.3 | |
| Rated Input Current | A | 4.5 | 4.5 | 5.9 | |
| Auxiliary Electric Heater | kW | 1.5 | 1.5 | 1.5 | |
| Rated Temp.Of Water Output | °C | 55 | 55 | 55 | |
| Max.Temp.Of Water Output | °C | 60 | 60 | 60 | |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | |
| Compressor | Rotary | Rotary | Rotary | ||
| Compressor Qty | 1 | 1 | 1 | ||
| Fan Qty | 1 | 1 | 1 | ||
| Noise | dB(A) | 48 | 48 | 48 | |
| PTR valve | inch | 1/2″ | 1/2″ | 1/2″ | |
| Hot Water Outlet | inch | 3/4″ | 3/4″ | 3/4″ | |
| Water Inlet | inch | 3/4″ | 3/4″ | 3/4″ | |
| Working Temp.Range | °C | -15~45 | -15~45 | -15~45 | |
| Fan Direction | horizontal | horizontal | horizontal | ||
| Refrigerant Gas Type | R134a/R410A | ||||
| Max. Working Pressure Tank | MPa | 0.7 | 0.7 | 0.7 | |
| Main Unit Net Dimensions(φ×H) | mm | φ700×1480 | φ700×1700 | φ700×1480 | |
| Main Unit Shipping Dimensions(L/M/H) | mm | 790×790×1560 | 790×790×1780 | 790×790×1560 | |
| Net Weight | kg | 75 | 90 | 80 | |
| Shipping Weight | kg | 85 | 100 | 90 | |
1.Aesthetically appearance
Adopts streamline appearance,combined with indoor decoration,more high-grade,long-life.
2.Economic and practical
Using energy efficient compressors, low operating cost. Comprehensive power consumption is only 65% of the solar energy water heater, 25% of electric water heaters.
3.Environment Friendly
Using environmentally friendly refrigerants for domestic water heating, no-pollution, no emissions of exhaust residue.
4.Safe and reliable
Separation from water and electricity, no produce exhaust,no combustion emissions to prevent leakage and gas poisoning. Integration design, fully welded closed refrigeration system,without refrigerant pipe connections, more simple and reliable installation.
5.Three-core design(Combination with three heat sources)
Heat pump, electric auxiliary heat and solar integrated together (optional). When sunny, heat pump does not work, otherwise, pump start-up.Super energy-saving and supply hot water in all-weather.
6.Simple operation
Intelligent design, large-screen LCD display, easy operation, 30 ° c - 60° c free setting, cycle timing can be set on/off,with power failure momery function, automatic high-temperature sterilization (optional).
7.Multi-functions
Except heating function,the unit also can be used indoor waste heat recovery, partial dehumidification, storage room cooling, ventilation.
