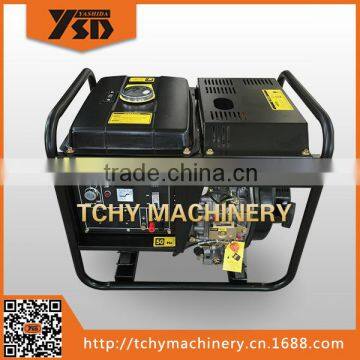

YASHIDA KDE6500 Air Cooled Generator Set steam turbine generator set

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	YSD
Speed	3000/3600		Frequency	50HZ

KDE6500
Frequency:Hz	50HZ
Rated output:Kva	3KVA
Rated.AC voltage:V	230V
Current:A	13A
No-load welding voltaged:V	65V
Rated welding DC:A	300A
Power factor:COS	COS=1
Starting system:	Electric Starter
Operatong noise lecel(at 7m):dB(A)	77
Fuel tank capacity(L):L	30L
Model	R2V840-V2
Engine type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Bore × Stroke:(mm)	2-86×72mm
Fuel	Summer:0# Winter: -10#
Lubricatiom oil Model	SAE10W-30(above CD grade)
Lubricatiom oil volume(L)	1.7L
Fuel comsumption Rate(g.kw/h)	298
Displacement:L	0.812l
Power/speed:KW, r/min	11.76KW/3000rpm
Compression Ratio	19:01
Combustion system	Direct lnjection
Voltmeter	Yes
Socket	2
circuit breaker	Yes
Oil warning light	Yes
Oil alert	Yes
DC circuit breaker	optional
Calculagraph	optional
Big Wheel	optional
Current meter	optional
ATS	optional
AMF Panel	optional
Remote control	optional
Dimension(L×W×H):mm	850×780×820 mm
Dry weight:kg	175kg
