Home > Products > Construction Machinery > new design high quality gasoline plate ram

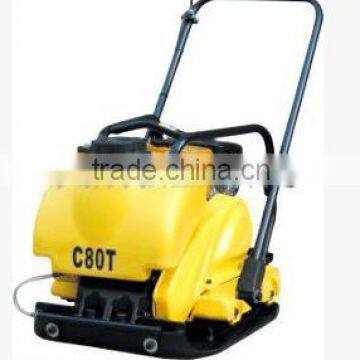

new design high quality gasoline plate ram
Negotiable
1 (Min.Order)
You May Like
-
KGRM80 Tamping Rammer With gasoline engine
-
KGRM75 Electric Soil sand tamping rammer
-
KGC50 54KG Walk Behind Gasoline Power Forward Plate Compactor
-
KGC60 4HP/10.5KN Walk Handle Gasoline Vibrating Plate Compactor
-
KDC80T 4HP/15KN Road Paving Construction Vibratory Plate Compactor
-
KGC80 4HP/15KN Walk Handle Petrol Vibratory Compactor Plate
Product Details
| Condition | New | Power Type | Gasoline | |
| Brand Name | yashida | Place of Origin | Jiangsu, China | |
| Power(W) | 5.5HP gasoline engine | Dimension(L*W*H) | 760*600*1110mm | |
| Weight | 85kg |
Product Description
Specifications of plate ram
1. Ductile iron base plate provides better durability.
2. Open plate provides self cleaning.
3. Easy-remove water tank with built-in valve and no hose connecting is available.
4. Centrally located lifting bar allows easy transportation.
5. Protective frame is available as optional.
6. Built-in wheel for easy transportation.
Deatails of plate ram
Ideal for sand, gravel and mixed soils in narrow trenches and along foundations, walls and abutments.
Compact and latest design in plate compactors, Suitable for most of compaction work, even brick paving compaction (with optional rubber mat) , hot and cold asphalt, when fitted with optional water sprinkler system.
Special for backfilling the trench,building a new highway, resurfacing a street or laying a new bridge deck,our products will help you get to the bottom of things by ensuring that you use the very best on top.
| Model | PB15 |
| Engine | Honda GX160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Rated output | 5.5hp |
| Max forward speed | 40cm/s |
| Vibration frequency | 5600rpm |
| Compaction depth | 400mm |
| Plate size | 45*50cm |
| Plate material | cast iron |
| Packing | |
| Weight | 95kgs |
| Dimension | 70*54*73(L*W*H CM) |
| 20GP | 90PCS |
| 40GP | 180PCS |
