High quality 4 Channel 720P Ahd DVR Kit with 3G WCDMA
- 5000 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4 channel car mobile dvr 4g/3g andriod apple support
-
500GB/1TB 2.5 Inch ssd Hard Disk for Mobile DVR video storage
-
32GB/64GB/128GB SD Card Storage for Mobile DVR
-
7 Inch TFT Monitor with AV VGA BNC Input for mobile car DVR
-
4pin 5M/10M/15M/20M/30M Audio Video Extension Cable
-
120 Degree Angle View 960P AHD Waterproof Night Vision CCTV Bus Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM/ODM/Nature | |
| Model Number | VM-1404-HD |
Product Description

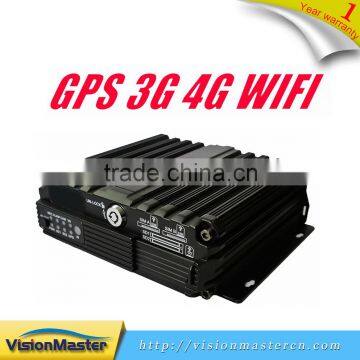

High quality 4 Channel 720P Ahd DVR Kit with 3G WCDMA

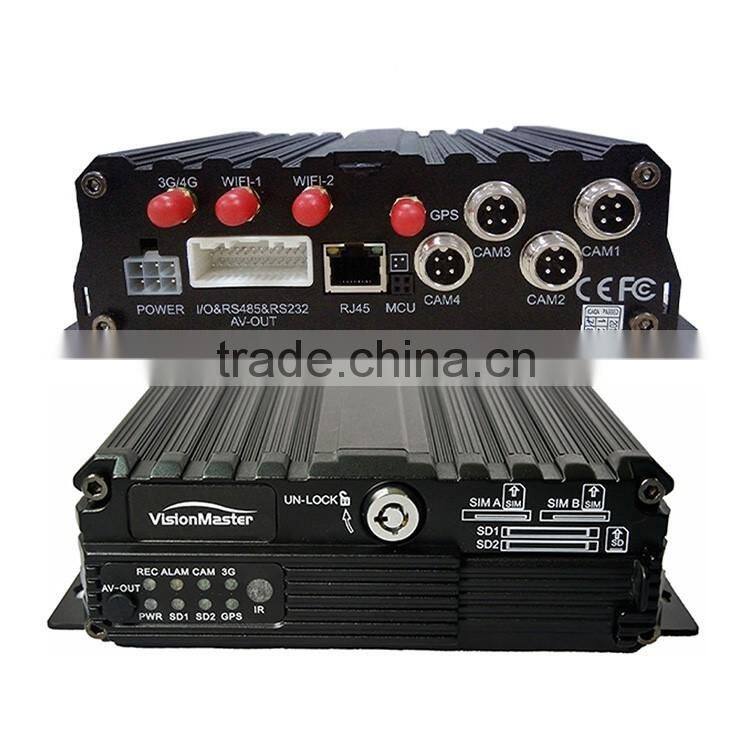

VM-1404-HD is a dual SD card hybrid HD MDVR with combined 4 ways of D1/960H/720P audio & video recording and replaying specially designed for vehicles, maximum 4 ways of AHD 720P and 1 way of IPC HD camera full-framed recording supported.
| Item | Parameter | Performance Indicator | |
| System | Language | Chinese/English | |
| Operating interface | Graphical user interface | ||
| Password & security | User password and Admin password management | ||
| Video | Video input | 4-channel air analog video input + 1-channel RJ45 network camera input | |
| 4 ways of D1/960H/720P composite video inputs available | |||
| Or 4 ways of composite video inputs + 1 way of IPC HD video input available | |||
| Audio | Audio input | 4 audio inputs | |
| Audio output | 2 audio outputs (one is φ3.5 Phone Jack, and the other is 24PIN connector) | ||
| Recording mode | Synchronous video & audio recording | ||
| Storage | Two SD cards supported, 128 GB for each | ||
| Alarm | Alarm input | Eight alarm inputs. You can set the lower level alarm (1V or below) or upper level alarm (5V or above) | |
| Alarm output | One alarm output, the higher level of this output is up to 12V | ||
| Communication interface | RS485 interface | One RS485 interface supported | |
| RS232 interface | Two RS232 interfaces supported | ||
| Wireless | 3G | Built-in 3G (HSDPA/EVDO/TD-CDMA) module (optional) | |
| 4G | Optional built-in 4G communication module (FDD-LTE/TDD-LTE optional) | ||
| WIFI | Built-in WiFi module | ||
| GPS | Writable code stream such as built-in GPS module, GPS coordinate, GPS rate supported; in addition, wireless uploading is possible (optional) | ||
| Acceleration sensor | External and built-in acceleration sensor G-Sensor (optional) | ||
| Supporting software | PCplayback analysis | Play back video file in PC, and analyze vehicle information in the file | |
| CMS | The centralized management software can realize preview, upload and center command issuance and parameter configuration | ||
| Software upgrade | This device can be upgraded through USB2.0 interface and remote CMS | ||
Main Features:
H.264 image compression encoding supported, PAL: 100fps@AHD 720P
4 ways of D1/960H/AHD 720P simultaneous audio & video recording / replaying
4-way AHD 720P + 1-way IPC 1080P HD camera full-framed recording
Air video interface is used to provide high reliability and strong anti-seismic property
8-second delay recording during power failure

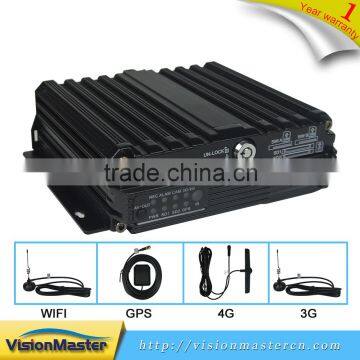

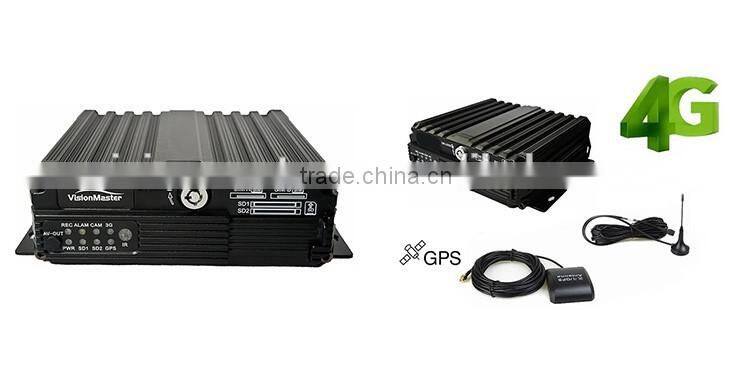

Built-in 3G/4G network, GPS, WiFi (optional)
Two SD cards supported, 128 GB for each
Good scalability, 1 RS485 interface, 2 RS232 interfaces
8V-36V wide voltage DC supply, 12V POE power supply supported
Good shock resistance, easy installation, 360° installation supported
High/low temperature resistant, operating under -25℃——+70℃
High quality 4 Channel 720P Ahd DVR Kit with 3G WCDMA
User interface on the mobilephone ,support apple system and andriod system .

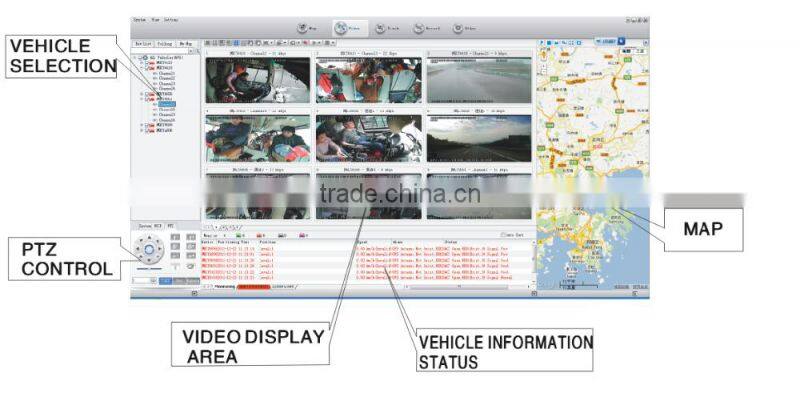

On PC

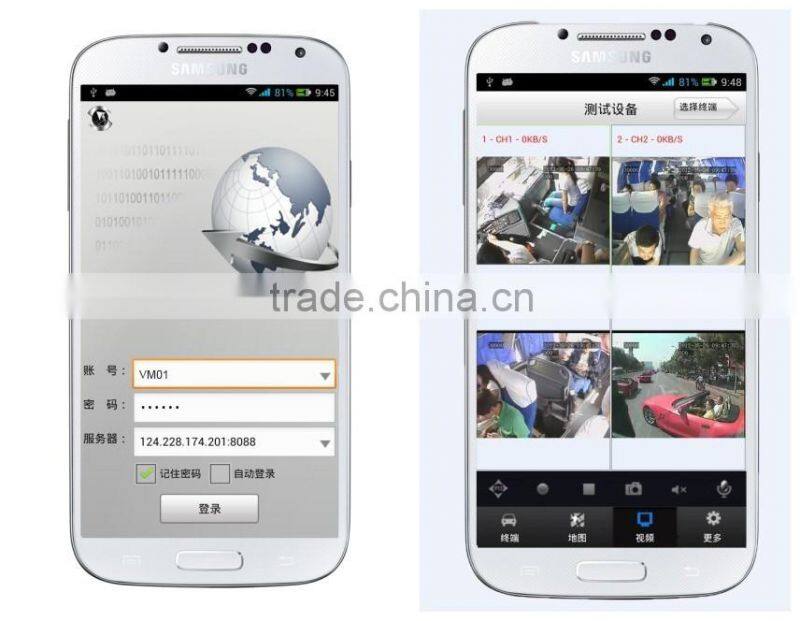

On mbile phone

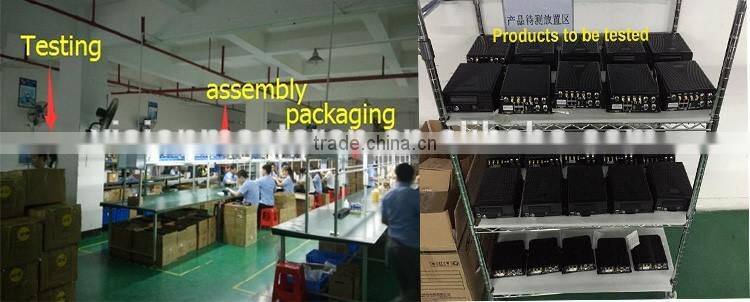

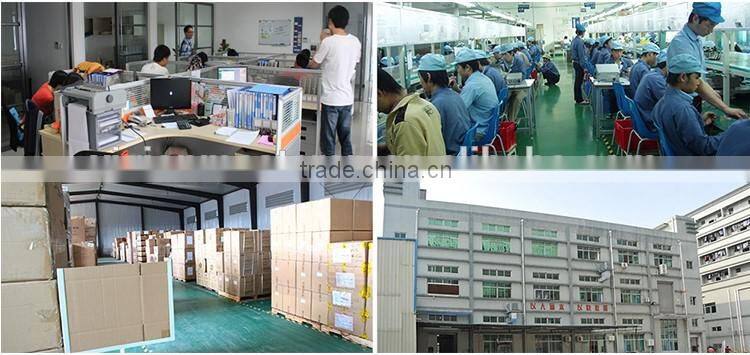

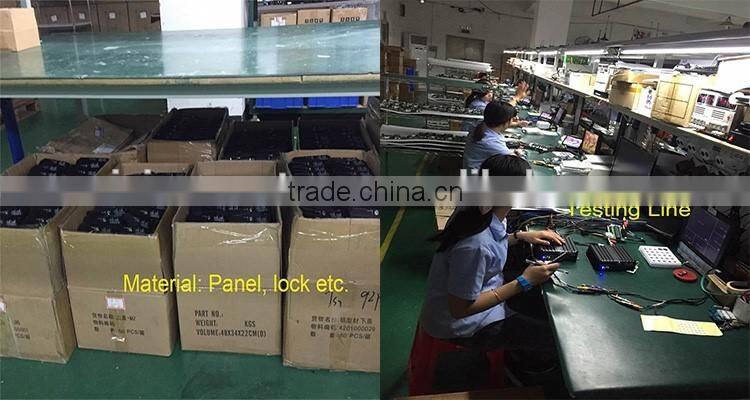

Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success. Please do not hesitate to pick up the phone or send us an email to find out how.
