Home > Products > SMPS for Actuator > 12V-35V Swtiching Power Supply, Wall Mount 48W Linear Actuator Power Supply
12V-35V Swtiching Power Supply, Wall Mount 48W Linear Actuator Power Supply
- 300000 Piece / Pieces per Month
- SHENZHEN
You May Like
-
29V 1.5A Swtiching Power Supply 12V-35V Wall Mount 48W Linear Actuator Power Adapter
-
29V 2A Power Supply Linear Actuator Power Adapter 58W CE,GS,TUV,UL,CCC,PSE,SAA Supplier's Choice
-
50W 60W Switching Power Supply Linear Actuator Power Adapter Plug type Changeable Wall Charger
-
29V High Power Linear Actuator Adapter Swtiching Power Supply AC DC Adapter
-
100-240VAC 58W power supply, 29V2A power supply with certification
-
12V 2A Power supply, SMPS Adaptor
Product Details
Place of Origin | Guangdong, China | Brand Name | ZB | |
Model Number | ZB-AXXXYYY-C | Output Power | 1 - 50W | |
Output Type | Single | Input Voltage | Other, 100-240V | |
Output Voltage | 29V | Output Frequency | 50HZ~60HZ | |
Output Current | 1.5A |
Product Description
12V-35V Swtiching Power Supply
Wall Mount 48W Linear Actuator Switching Power Supply
29V 1.5A SMPS Switching Model Power Supply AC DC Adapter

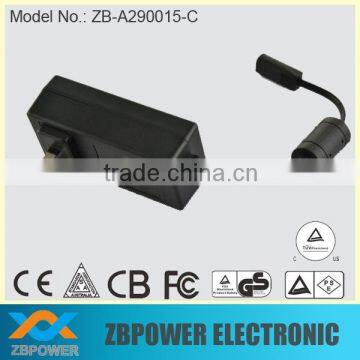

Model No.: ZB-A290015-C
Different Country Plug Optional -- [ USA plug ] [EU plug] [UK plug] [ Australian plug]
Certificate: CE, SAA, CB, FCC, GS, TUV, PSE
This model can be customized as 12V to 35V (12V/15V/24V/29V/35V); 1.3A to 3A (3A/2.5A/2A/1.5A/1.3A) ;depend on your requirement to choose.
Model No.:ZB-A290015-C | ||||||
TECHNICAL PARAMETERS | SMPS APPLICATION | |||||
Environmental Temp:at 25℃ | Elevator | |||||
Input Parameter | Electric Tools | |||||
Input Voltage:100-240 Vac | Home Electronic Equipment | |||||
Range:90-264Vac | Medical Equipment | |||||
Input Frequency:47-63Hz | Audio System | |||||
Input Current:1.2A max | Others | |||||
Start Inrush Current:<60A/240V | ||||||
Output Parameter | ||||||
Regulation:Line Load<5% | ||||||
Ripple and Noise:<2% max | ||||||
Turn-on Delay Time:5S max | ||||||
PRODUCT DESCRIPTION | ENVIRONMENT PARAMETER | |||||
Principal Characteristics | Operating Temperature:0℃...+40℃ | |||||
AC to DC | Storage Temperature:-20℃...+85℃ | |||||
Wall mount Vertical Type, Horizontal Type | Insulation Intensity:3750VAC 1min inp.<->outp. | |||||
Streamline,Fully sealed | Insulation Resistance:Pri.to sec.>50MOhm 500VDC | |||||
OVP,OCP,SCP | Over Current Protection:120%-200%,Auto reboot | |||||
RoHS,Reach Compliance | Over Voltage Protection:150%,Auto reboot | |||||
Efficiency Compliance CEC,ERP,LEVEL:V | ||||||
MTBF:50,000 hours | ||||||
Model | I/P condition | Voltage | Current | Efficiency | Ripple | Power |
ZB-AXXXYYYYZ-C XXX=090-350 YYY=010-030 Z=E.J.S.U.A.B.C | 100-240Vac 50/60Hz 1.2A max. | DC(V) | (A) | min./% | P.P(mV) | max.(W) |
12 | 3 | 80 | 150 | 36 | ||
15 | 2.5 | 82 | 150 | 37.5 | ||
24 | 2 | 84 | 200 | 48 | ||
29 | 1.5 | 85 | 200 | 43.5 | ||
35 | 1.3 | 85 | 200 | 45.5 |
1. Packing Detail: Each 29V 1.5A SMPS Adapter Individual packing in Brown paper box, normally 40pcs per carton, 24 cartons per pallet.
2. For small quantity, shipment is preferred to shipping with express by UPS, DHL, TNT or FedEx to meet your deadline on time worldwide basis.
3. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.
1. Proffessional Swithcing Power Supply/ Linear Actuator Power Adapter / Security Protection Adapter Manufactory
2. Custom-made products / Professional R&D Team support OEM ODM
3. Excellent quality: Most products pass certificate like CE,UL,GS,TUV,FCC,PSE,SAA,KC,CCC
4. Perfect Service
5. Responsible After-sales Service
6. Favorable Price
If you have any need or question, just feel free to contact us!
Huizhou Zhongbang Electronics Co., Ltd., found in 2001, is a member of ZBPOWER LIMITED, and specialized in manufacturing of switch power supply. We insist on enterprise value of “quality first for existence and for benefits”, the company keeps absorbing advanced experience, keeps advanced design. We established a quality management system according to ISO9001 requirements and has acquired ISO9001 certificate since 2003.
Our products including Linear Actuator SMPS, mobile phone chargers, portable battery and chargers, AC/DC convertors, LED driver. We especially focus on the market of Linear Actuator SMPS as important market, we can offer quickly respond to our customer. The products were certified by UL, CCC, CQC, TUV, GS, CE, CB, FCC,PSE, SAA, and C-tick. All products comply with requirements of RoHS orders. We have equipped more and more safety and electric testing instruments to ensure product reliability.
With scientific management, excellent quality, perfect service, and favorable price, we has always been providing our extensive customers with high quality service. Our goal is to pursue the excellence with the customer being the first. We are always looking for cooperating with all customers around the world.
Welcome to contact us for further information and look forward to cooperating with you!
1. Shipment Terms: Express, by air, by sea, EXW or FOB shenzhen
2. MOQ: 500/1K~5K
3. L/T: 4Weeks~6Weeks
4. All OEM/ODM projects are welcome.
