Piano Type 2 position Dip Switch

Specifications

 Piano Type 2 position Dip Switch

Features/Benefits

• Traditional full profile DIP switch
• Extended actuator for easy actuation
• Open bottom construction allows for solder washing without the need for tape seal
• RoHS coompliant

Typical Applications

• Address switch for industrial controls
• Logic switching for computers and peripherals
• Function controlling for numerous applications

Specification

•  Mechanical

1.  Operation Force: 800g Max
2.  Stroke: 2.00mm
3.  Operation Temp.: -20^oC~+70 ^oC
4.  Storage Temp.:   -40^oC~+85 ^oC

•  Material

1.  Base: Engineering plastics, black
2.  Cover: Engineering plastics,  Red/Blue
3.  Button: Engineering plastics, white
4.  Terminals:  Alloy Copper, Gold plating

• Electrical

1. Electrical Life: 2000 operation cycles per switch
2. Non-switching Rating:  100mA 50VDC
3. Switching Rating: 25mA 24VDC
4. Contact Resistance: 50mΩ Max at initial :  100mΩ Max after life test
5. Insulation Resistance: 100mΩ 50VDC
6. Dieletric Strength: 500VAC/ 1 minute
7. Capacitance: 5pF max
8. Circuit: Single pole single throw
9. Soldering and Cleaning Processes

1. Keep all switch contacts in their "off" position for all operation
2. Wave Soldering: Recommended Sodering Temp. at 260 ^oC max , 5 second
3. Hand Sodering: use a sodering iron at 30 watts, controlled at 320 ^oC  approximately 2 second while appling soder.
4. Cleaning Process: Flux clean using force rinse, high agitation or triple bath cleaning Method.  Freon TE or TF give excellent results, When  vapor methods are used do not subject to solvents at temperature above  51^oC

•  PACKING

1. All DIP switches are shipped in standard IC tube

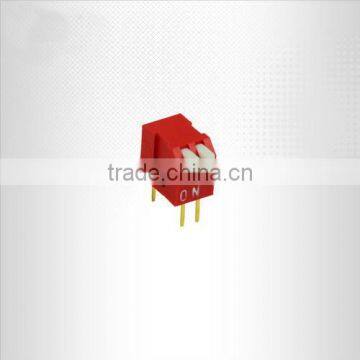

Product Pictures

Product Dimenstion:
