Home > Products > Probe Ultrasonicator > Ultrasonic extraction

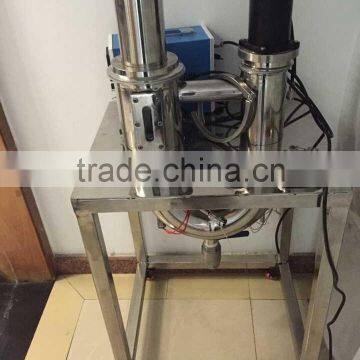

Ultrasonic extraction
- NINGBO/SHANGHAI
- Credit Card
You May Like
Product Details
| Condition | New | Mixer Type | Homogenizer | |
| Product Type | Other | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Zhejiang, China | |
| Brand Name | SJIALAB | Model Number | CSB-5B | |
| Max. Loading Capacity | 0.5-6.0 kg/h | Voltage | 220V/110V | |
| Power(W) | 800W | Dimension(L*W*H) | 360*240*650mm | |
| Certification | CE | Warranty | 1years | |
| After-sales Service Provided | No overseas service provided |
Product Description
SjiaLab : Ultrasonic extraction is widely used in a variety of volatile or non-volatile solvent extraction of natural products active ingredients, suit for medicine, food, health products, cosmetics and other laboratories and production, can also be used for ultrasonic dispersion, emulsification, release slow drugs AMD capsules and nanocapsules Preparation of research use, this is the ideal equipment of schools and research institutes and pharmaceutical companies.
model | CSB-5B | CSB-10B | CSB -20B | CSB -50B | CSB -100B | |
Extracting method | Ultrasonic dynamic external loop extraction | |||||
Capacity(L) | 5 | 10 | 20 | 50 | 100 | |
Stirring motor power(W) | 80 | 150 | 200 | 500 | 1000 | |
Ultrasonic frequency | 20KHz Narrow range auto tracking
| |||||
Ultrasonic Power (w) | 0~1200 adjustable | 0~1500 adjustable | 0~3000 adjustable | 0~6000 adjustable | 0~8000 adjustable | |
Maximum heating power(W) | 800 | 1200 | 2000 | 5000 | 10000 | |
External circulation stirring speed(rpm) | 0~2000 | |||||
Controllable temperature℃ | Room temperature~100(Customizable low temperature extraction)
| |||||
Material | Stainless steel +A3 steel (spray anti rust treatment | |||||
Applicable medium | Volatile or non-volatile | |||||
application | Laboratory or pilot | |||||
Crush capacity(kg/hr) | 0.5—6.0 | 4.5—12.0 | 8.5—22.0 | 10.5—55.13 | 20—100 | |
Subject dimension(L*W*H)mm | 360*240*650 | 650*360*1350 | 650*500*1600 | 850*600*1700 | 950*700*1800 | |
