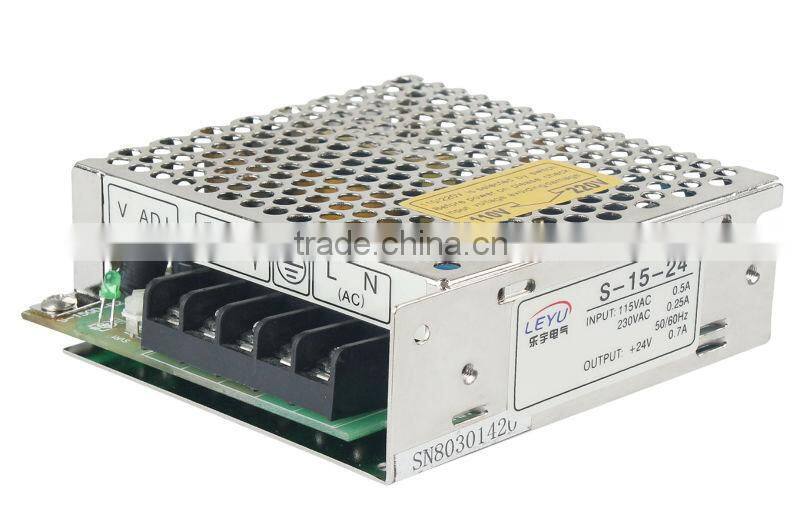

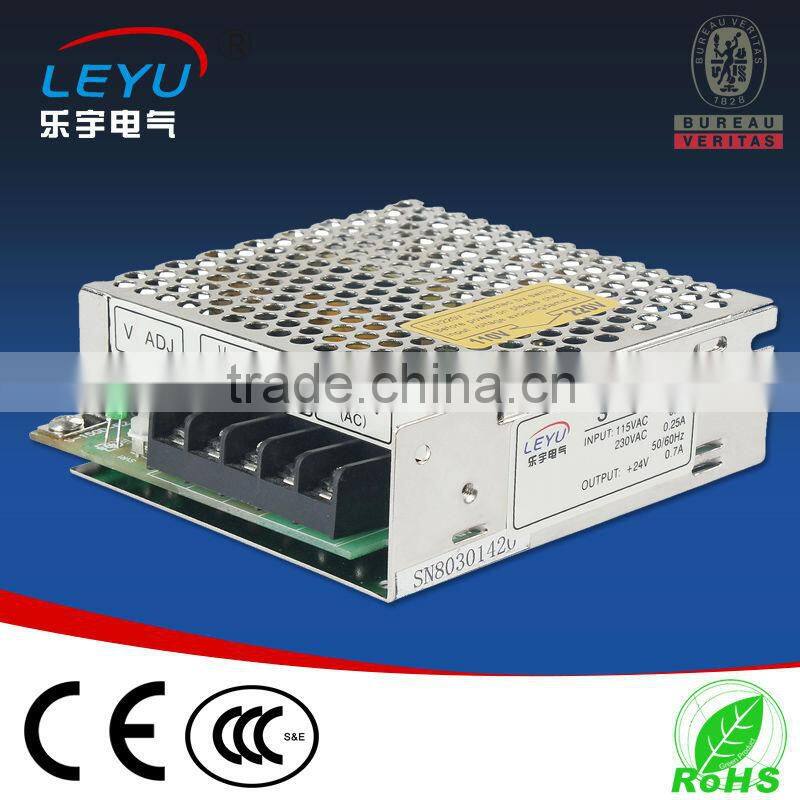

Hot Sell 15w Constant Voltage Single Output AC DC 12 Volt Power Supply

SPECIFICATIONS

OUTPUT

Model

S-15-5

S-15-12

S-15-24

DC Voltage

5V

12V

24V

Rated Current

3A

1.3A

0.7A

Current Range

0-3A

0-1.3A

0-0.7A

Rated Power

15W

15.6W

16.8W

Ripple & Noise

50mVp-p

50mVp-p

100mVp-p

Voltage Adj. Range

-5%,+10%

±10%

±10%

Voltage Tolerance

±2%

±1%

±1%

Setup, Rise, Hold Up Time

200ms,100ms,30ms at full load

INPUT

Voltage Range

85~132VAC/170~264VAC selected by switch   47~63Hz; 240~370VDC

AC Current

0.5A/115V   0.25A/230V

Efficiency

65%

68%

72%

Inrush Current

Cold start 15A/115VAC   30A/230VAC

Leakage Current

<0.5mA/240VAC

PROTECTION

Over Load

110%~160%

Protection type: Fold back current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃; 20%~90 %RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95 %RH

Vibration

10~500Hz, 2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part15 J Conduction Class B

OTHERS

Dimension

99*97*36mm(L*W*H)

Weight

0.31Kg

Packing

45pcs/15Kg/0.9CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation
