Panstar Steam water plate heat exchanger unit producer
- Shanghai
- T/T
You May Like
-
Panstar water distillation plate heat exchanger unit producer
-
Panstar water - water plate heat exchanger unit producer
-
Panstar Radiant floor plate heat exchanger unit producer
-
Panstar heat transfer plate heat exchanger unit supplier
-
Panstar large refrigeration plate heat exchanger unit producer
-
Panstar water cooling plate heat exchanger unit producer
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Panstar | Model Number | Unit66 | |
| Structure | Plate Heat Exchanger | Liquid Flow Rate | 0.2-0.8m/s | |
| Maximum Working Pressure | 2.5Mpa | Voltage | none | |
| Weight | 1000-3000kg | Dimension(L*W*H) | Designed | |
| Power(W) | 500-5000kw | Certification | CE | |
| Warranty | 18 Months | After-sales Service Provided | Overseas third-party support available |
Product Description

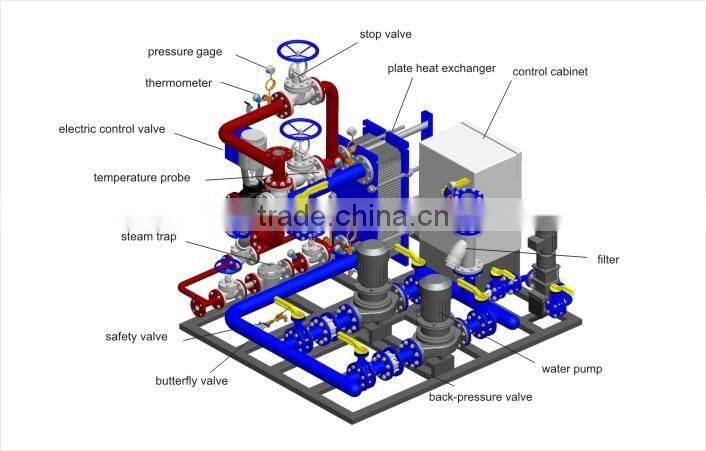

Detailed Images
Main Features:
Panstar Steam water plate heat exchanger unit producer
1) It is widely used in steam - water working condition,it is the heat transfer equipment of the thermal power central heating ,boilers of district heating,geothermal heating,building heating and air conditioning systems and domestic hot water heating system,with heating comfort of high efficiency,energy saving.
2)It also can be widely used in factories,mines,offices,schools,shopping malls,hotels,residential houses and enterprises such as building heating and air conditioning heating system.
Related Products
Series | Specifications and models | Plate models | Exterior dimension (mm) | Maximum assemble area (m2) | Nozzle diameter | ||
Maximum length | Width | Height | |||||
BP series | BP32 | BH,BV | 750 | 178 | 484 | 6 | DN32 |
BP50 | BH,BV, MH,MV | 1610 | 355 | 895 | 37 | DN50 | |
BP100 | BH,BV, MH,MV | 2400 | 470 | 1070 | 100 | DN100 | |
BP150 | BH,BV, MH,MV | 3300 | 615 | 1770 | 370 | DN150 | |
BP200 | MH,MV | 4050 | 760 | 2048 | 410 | DN200 | |
BP250 | BH,BV | 3410 | 900 | 2659 | 1000 | DN250 | |
BP300 | M,B | 6200 | 1170 | 2852 | 1000 | DN300 | |
BP350 | H,V | 5220 | 1250 | 2860 | 1100 | DN350 | |
Material | Operating temperature range | Use conditions |
NBR gasket | ≤135℃ | Resistant mineral, animal ,vegetable oil and other non-polar media |
HNBR gasket | -5℃-150℃ | Resistance to sulfur crude oil, mixed media with H2S,high temperature cooking Oil lamp non-polar media |
EPDM gasket | ≤160℃ | Heat water, steam ,food beverage, high temperature sterilization of milk |
Solvent EPDM gasket | -20℃-150℃ | Good volume and other polar solvents such as lipid solvents ,inorganic acid such as Greek |
General fluorine rubber gasket | ≤180℃ | Non-polar mineral oil, lubricating oil and other fuels containing alcohol |
Special fluorine rubber gasket | 30℃-130℃ | High concentration of sulfuric acid and other inorganic oxygen acid |
Company Informaton
Certification
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We own a factory, which is a professional manufacturer, located in Yangzhou China. It is a joint venture company invested by British PANSTAR Co., LTD and China TPY Group.
Q2: Can I have a sample for testing?
A2: Yes, a metal plate or a gasket sample is available for you, please contact sales staff before.
Q3: What is the measure of the plate heat exchanger?
A3: We will design the measure according to your detailed requirements and working conditions.
Q4: Can I add my logo on the product?
A4: Yes, OEM is available. Customized label service is OK.
Q5: Will your company provide after-sales service?
A5: Yes, overseas third-party support is available.
Q6: Where is your factory? How can I visit there?
A6: The factory address is NO. 3 Jinyuan Road AnYi Industrial Park, Baoying Yangzhou City,China. It takes 25 minutes by train from Shanghai. Warmly welcome you to visit us!
Q7: What parameters should I provide when I post an inquiry?
A7:
Working Conditions | ||||
Items | Unites | Hot side | Cold side | Remarks |
Fluid name |
|
|
|
|
Flow rate | m³/h |
|
|
|
Temperature (In/Out) | ℃ |
|
|
|
Pressure drop (Designed/Actual) | Kpa |
|
|
|
Heat exchange | Kw |
|
| |
