2015 Hot Sale Automatic Distribution Box Plastic Injection Molding Machine

FOB Price

US$ 1 - 35,000 / Set

1 Set(Min. Order)

Port Ningbo China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Preform Injection
Style	Horizontal	Brand Name	Xiangte
Model Number	XT-HC55	Place of Origin	Jiangsu, China
Plastic Type	Thermoplastic	Automatic	Yes
Injection Weight	73 g	Injection Rate	88 g/s
Clamping Force	600KN	Opening Stroke	290mm
Power(W)	10.25	Certification	ISO&CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Automatic distribution box Plastic Injection Molding Machine

Main features of the injection molding Machines

Screw of big length to diameter ratio, uniform plastication and high plasticizing capability.
Multi step adjustment of injection speed or pressure.
Back pressure control of molten plastic.
Double toggle mold closing system with a large force magnification ratio and a large stroke ratio.
Very good speed characteristic of high speed mold closing and low pressure mold protection.
Various kinds of hydraulic ejectors.
Double proportional, load sensitive hydraulic circuit.
For big sizes of machines there are several oil pumps in a group, use proportional valve to compensate the difference of pressure or flow between pumps.
Triple interlock of mechanic, electric and hydraulic devices.
Hydraulic knockout core device and rotary mold-parting from the work piece device.
Using the computer, electric and hydraulic elements of famous brands in the world.

Main datas of the injection molding machine

MACHINE MODEL	XT-WS60
INJECTION UNIT
	UNIT	A	B	C
SCREW DIAMETER	mm	30	32	34
SCREW L/D RATIO		22.4	21	19
THEORETICAL SHOT VOLUME	cm³	70	80	90
INJECTION WEIGHE(PS)	g	64	73	82
INJECTION RATE(PS)	g/s	72	88	105
PLASTICIZING CAPACITY(PS)	g/s	8.9	11.6	12.7
INJECTION PRESSURE	MPa	213	180	166
SCREW SPEEO	rpm	0~212
MOULDING UNIT
CLAMPING FORCE	KN	600
SPACE BETWEEN TIE BARS(W*H)	mm	300*300
MAX. MOULD THICKNESS	mm	300
MIN. MOULD THICKNESS	mm	110
TOGGLE STROKE	mm	290
EJECTOR STROKE	mm	80
EJECTOR FORCE	KN	27
NO. OF EJECTOR	PC	1
OTHERS
MAX. PUMP PRESSURE	MPa	16
PUMP MOTOR POWER	KW	8.6
HEATING POWER	KW	5.0/6.5
HYDRAULIC TANK CAPACITY	L	135
HECHINE SIZE(LWH)	m	3.901.151.65
MACHINE WEIGHT	t	2.5

Detailed Images

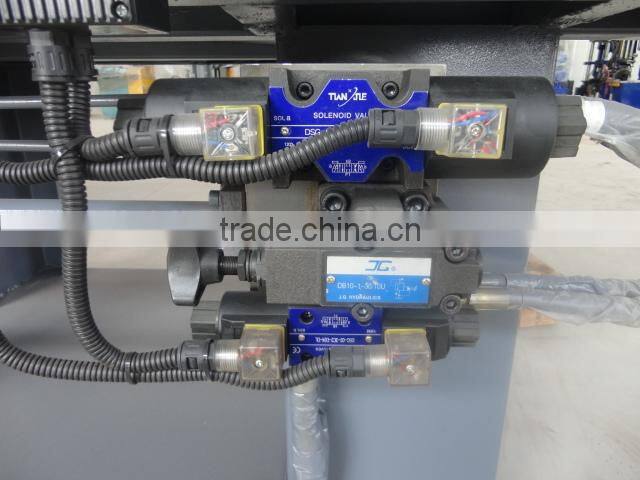

Professional parts for the injection molding machine

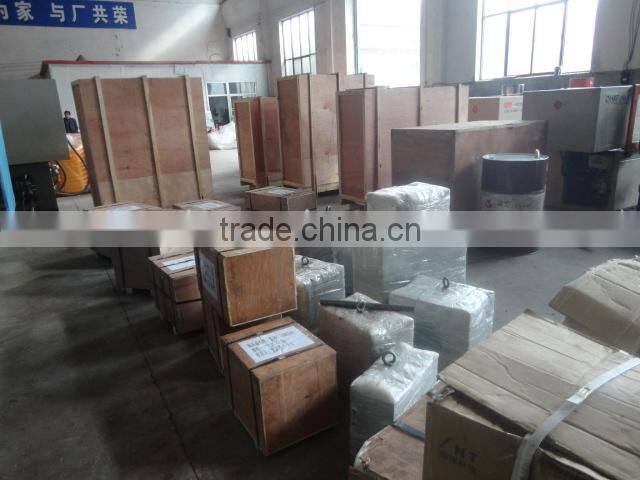

Packaging & Shipping

Professional shipping wooden packaging for benchtop plastic injection molding machine

Certifications

After-Sales Service

We not only provide the high quality service, but also provide a convenient after-sales service. The method of our service is: Engineers available to service machinery overseas. Make sure you do not have trouble after buying our machines.

We gain not only an order, but also a trust.

Welcome to send the inquiry to us, we will reply in one hour.
