cups producing plastic Injection Molding Machine
- 300 Set / Sets per Month
- Ningbo China
- T/T Credit Card PayPal
You May Like
-
2015 Hot Sale Automatic distribution box Plastic Injection Molding Machine
-
2015 Hot Sale Automatic bottle cap use Plastic Injection Molding Machine
-
2015 new design plastic crate producing 150T High precision horizontal Plastic Injection Machinery
-
Popular saled plastic crate producing 150T High precision horizontal Plastic Injection Machinery
-
hot saled plastic crate producing 150T High precision horizontal Plastic Injection Machinery
-
150T High precision horizontal Plastic Injection Machinery and making machine
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Horizontal | Brand Name | Xiangte | |
| Model Number | XT-HC55 | Place of Origin | Jiangsu, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 73 g | Injection Rate | 88 g/s | |
| Clamping Force | 600KN | Opening Stroke | 290mm | |
| Power(W) | 10.25 | Certification | ISO&CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

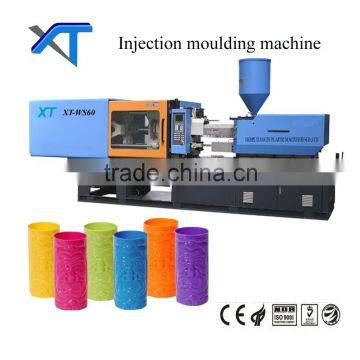

Automatic color plastic cups producing plastic Injection Molding Machine
Main features of the color plastic cups injection molding Machines
- Screw of big length to diameter ratio, uniform plastication and high plasticizing capability.
- Multi step adjustment of injection speed or pressure.
- Back pressure control of molten plastic.
- Double toggle mold closing system with a large force magnification ratio and a large stroke ratio.
- Very good speed characteristic of high speed mold closing and low pressure mold protection.
- Various kinds of hydraulic ejectors.
- Double proportional, load sensitive hydraulic circuit.
- For big sizes of machines there are several oil pumps in a group, use proportional valve to compensate the difference of pressure or flow between pumps.
- Triple interlock of mechanic, electric and hydraulic devices.
- Hydraulic knockout core device and rotary mold-parting from the work piece device.
- Using the computer, electric and hydraulic elements of famous brands in the world.
Main datas of the color plastic cups injection molding machine
MACHINE MODEL | XT-WS60 | |||
INJECTION UNIT | ||||
UNIT | A | B | C | |
SCREW DIAMETER | mm | 30 | 32 | 34 |
SCREW L/D RATIO | 22.4 | 21 | 19 | |
THEORETICAL SHOT VOLUME | cm3 | 70 | 80 | 90 |
INJECTION WEIGHE(PS) | g | 64 | 73 | 82 |
INJECTION RATE(PS) | g/s | 72 | 88 | 105 |
PLASTICIZING CAPACITY(PS) | g/s | 8.9 | 11.6 | 12.7 |
INJECTION PRESSURE | MPa | 213 | 180 | 166 |
SCREW SPEEO | rpm | 0~212 | ||
MOULDING UNIT | ||||
CLAMPING FORCE | KN | 600 | ||
SPACE BETWEEN TIE BARS(W*H) | mm | 300*300 | ||
MAX. MOULD THICKNESS | mm | 300 | ||
MIN. MOULD THICKNESS | mm | 110 | ||
TOGGLE STROKE | mm | 290 | ||
EJECTOR STROKE | mm | 80 | ||
EJECTOR FORCE | KN | 27 | ||
NO. OF EJECTOR | PC | 1 | ||
OTHERS | ||||
MAX. PUMP PRESSURE | MPa | 16 | ||
PUMP MOTOR POWER | KW | 8.6 | ||
HEATING POWER | KW | 5.0/6.5 | ||
HYDRAULIC TANK CAPACITY | L | 135 | ||
HECHINE SIZE(L*W*H) | m | 3.90*1.15*1.65 | ||
MACHINE WEIGHT | t | 2.5 | ||
Professional parts for the injection molding machine
Professional shipping wooden packaging for benchtop plastic injection molding machine
We not only provide the high quality service, but also provide a convenient after-sales service. The method of our service is: Engineers available to service machinery overseas. Make sure you do not have trouble after buying our machines.
We gain not only an order, but also a trust.
Welcome to send the inquiry to us, we will reply in one hour.
