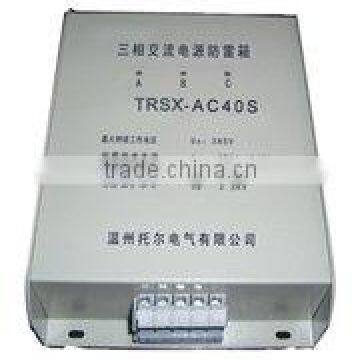

Thunder Protection Box(spd)AC power surge

Thunder Protection Box(spd)AC power surge

Detailed Product Description:

TRSX-1 -380AC-60T  thunder protection box:

Specifications:

TYPE:                                             TRXS-380AC-60T    TRXS-380AC-40T   TRXS-380AC-20T

Protection class:                                    C                               C                       C

Operating voltage (Un):                       385V  AC               385V  AC              385V  AC

ntinuous operating(Uc):                  440V  AC               440V  AC              440V  AC

Nominal discharge current(8/20us)(In):      60KA                   40KA                    20KA

Max dischage current (8/20us)(Imax):       100KA                  60KA                    40KA

Voltage protection level:                           <1.5KV                <1.2KV                  <0.8KV

Response time:                                       <25ns                  <25ns                    <25ns

Relative Humidity:                                    <95                      <95                       <95

Working Environment:                          -40--+80                 -40--+80                  -40--+80

TRXS-1 series can add remote signal control function

1. TRSX1 Single phase power supply arrester box series

   Technical date

   Type
   Nominal operating voltage Un	AC230V
   Max continuous voltage(Uc)(V)	AC385V
   Max discharge current(In)8/20μS	20	40	60	80	100
   Nominal discharge current(In)8/20μS	10	20	30	40	50
   Response time (ns)	≤2.5ns
   Voltage protection level8/20μS3KAUp(V)	≤700	≤800	≤1200	≤1500	≤2000
   Protection mode	L-N N-PE
   Connection way	In parallel
   Remote signal control	Yes
   Frequency	47--63Hz
   Operating temp	-40--+85
   Compliance

   Application:

   TRSX1 single phase power supply arrester series is used for single phase power supply system, The protective device sort is class c,d. Connected parallel in power supply system, preventing from damage for inductive thunderbolt electric wave , surge and static interference.......
