high efficiency Hydraulic Shaft-less Mill Roll Stand
- Tianjin
- T/T
You May Like
-
ZUY-1800 Hydraulic Mill Roll Stand Machine
-
ZJY-1600 Hydraulic Mill Roll Stand Machine
-
2015 XinHua Packing Machinery Mill roll stand -- Hydraulic Mill Roll Stand for cardboard production line
-
Xinhua Packing machinery Mill roll stand -- Hydraulic Mill Roll Stand for cardboard production line
-
2015 Best selling in India Mill roll stand -- Hydraulic Mill Roll Stand for cardboard production line
-
2015 best selling in Pakistan Mill roll stand -- Hydraulic Mill Roll Stand for cardboard production line
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Hydraulic | |
| Voltage | 380V 50HZ | Power | 3.5kw | |
| Place of Origin | Hebei, China | Brand Name | Xinhua | |
| Model Number | CK-03 | Dimension(L*W*H) | Contact | |
| Weight | 3000kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

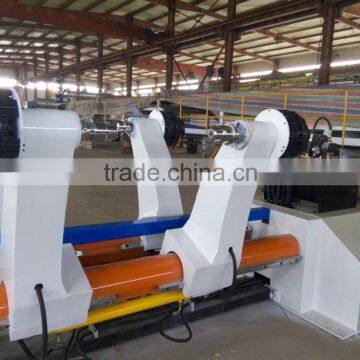

Hydraulic Mill Roll Stand
Function and characteristics
1,The structure is double rolls with four arms ;Mill rolls on both arms can be bearing at the same time .
2,Hydraulic control of lifting , lowering , clamping and centering .
3,Web tension is controlled by pneumatic or magnetic-powder tension control ;Expandable chucks is optional.
4,Available width :900mm-2550mm;
5,Maximum roll diameter :Ø1500mm
6,Maximum weight : 3T
Inflation type chuck ending paper using analysis form:
> The paper every day by the least 40 kg
>At maximum of 300 kg
>According to 1800RMB per ton calculation
>Day save 72-540 RMB
>Mouth save 2160-16200 RMB
>Year save 25920-194400RMB
Hydraulic Mill Roll stand is one part of the corrugated paperboard production line.For upload the paper rolls.
Description:
This machine is used for supporting and outputting device,
Specification:
1. Working width: Max: 2500mm,
2. Paper roller diameter: 2 side Ø1500MM, Min clamp paper diameter: Ø350MM
The lift-down arm adopted with cast iron curve structure, slinky, firm and steady.
Lift-down, clamp-loosen and left-right move are control by hydraulic cylinder.
Install 10HP* 4P hydraulic system.(SHA, Taiwan brand)
Hydraulic pump:---1set
Hydraulic pump
Hydraulic cylinder specification:
Ø80*ST1120---4 pcs(left-right) Ø125*ST475---2 pcs (Upper-lower)
Tension control: pneumatic brake, with air-pressure valve, pressure regulating valve and manometer to show details when running.
Install manual pulley: four wheels type, two railing for one mill roll stand.
Whole machine adopt hydraulic control, easy to operate, low fault rate.
Railing and pulley
Structure
1. Moving paper roller, light and flexible
2. Rail way is on the ground, main structure is welded with 16 channel steel, firm and durable
3. The upper steel plate will be welded after installation on the premise.
